Instruction book
2920 1472 03 33
9820 3823 00
52638D
(2)
(3)
(1)
Text on figure 2.7
(1) Common ducting for multiple units is not allowed
(2) Minimum free area
(3) Ventilation proposal

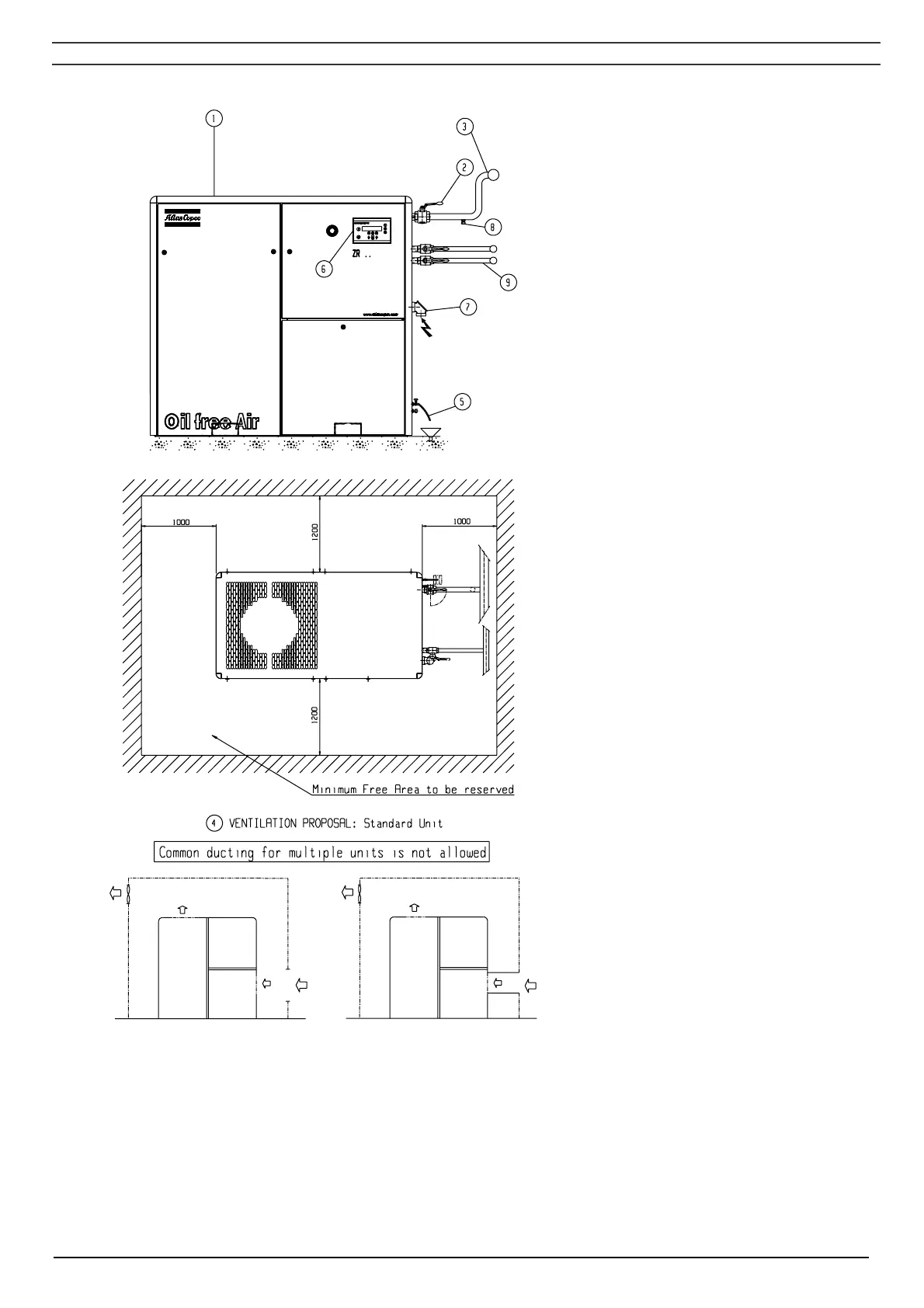

Fig. 2.7 Installation proposal, ZR30 up to ZR45
