Instruction book
2920 1472 03 44

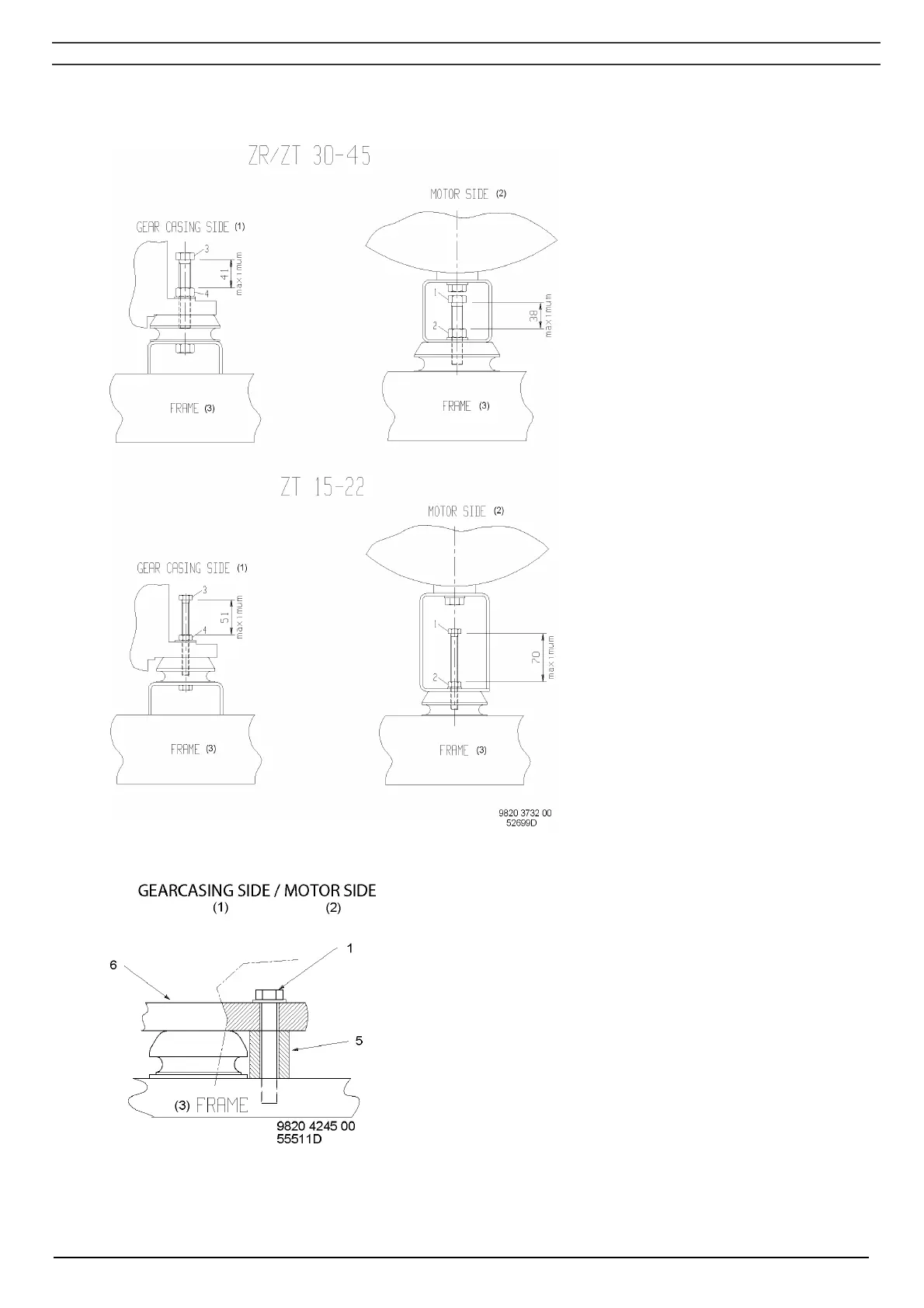

Fig. 3.1a Vibration dampers on earlier production units
Fig. 3.1b Transport fixations on recent production units
Text on figures 3.1
(1) Gear casing side
(2) Motor side
(3) Frame
Components
1 Bolt
2 Nut
3 Bolt
4 Nut
5 Bush
6 Motor support
or gear casing
