Instruction book
2920 1472 03 47
29. Open drain valve (8-Fig. 1.5).
Co Oil cooler
Dmo Oil drain valve, gear casing
FC Oil filler cap
OF Oil filter
SG Oil level sight-glass
1 Arrow, indicating correct rotation
direction of drive motor

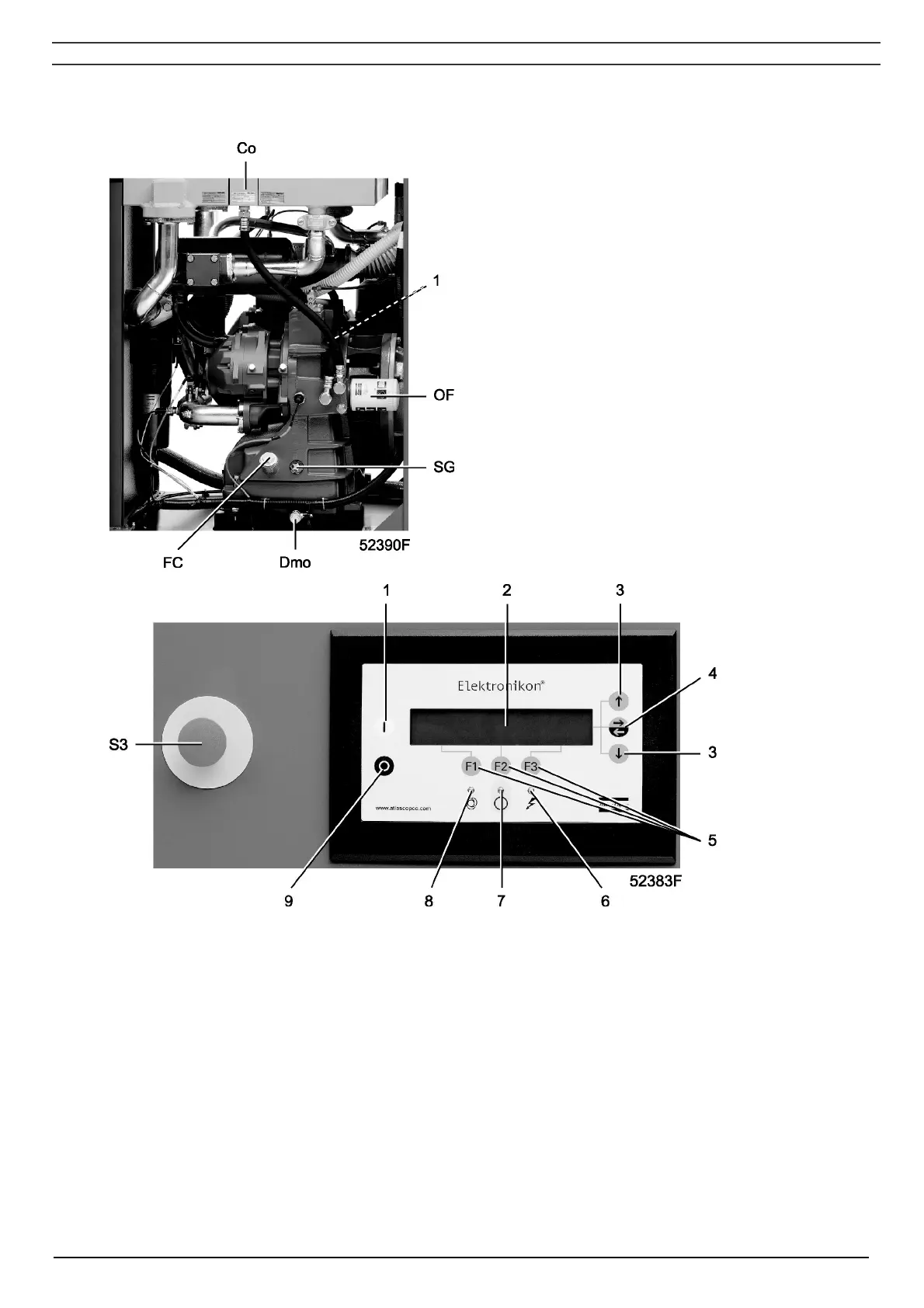

Fig. 3.3 Oil system components
1 Start button
2 Display
3 Scroll keys
4 Tabulator key
5 Function keys
6 Voltage on LED
7 General alarm LED
8 Automatic operation LED
9 Stop button
S3 Emergency stop button
Fig. 3.4 Control panel
