Instruction book
2920 1472 03 6
Ca Aftercooler
Ci Intercooler
Co Oil cooler
Eh High-pressure compressor element
FC Oil filler plug
FN Fan
M1 Drive motor
M2 Fan motor
OF Oil filter
SG Oil level sight-glass
SVl Low-pressure safety valve
S3 Emergency stop button
1 Elektronikon regulator

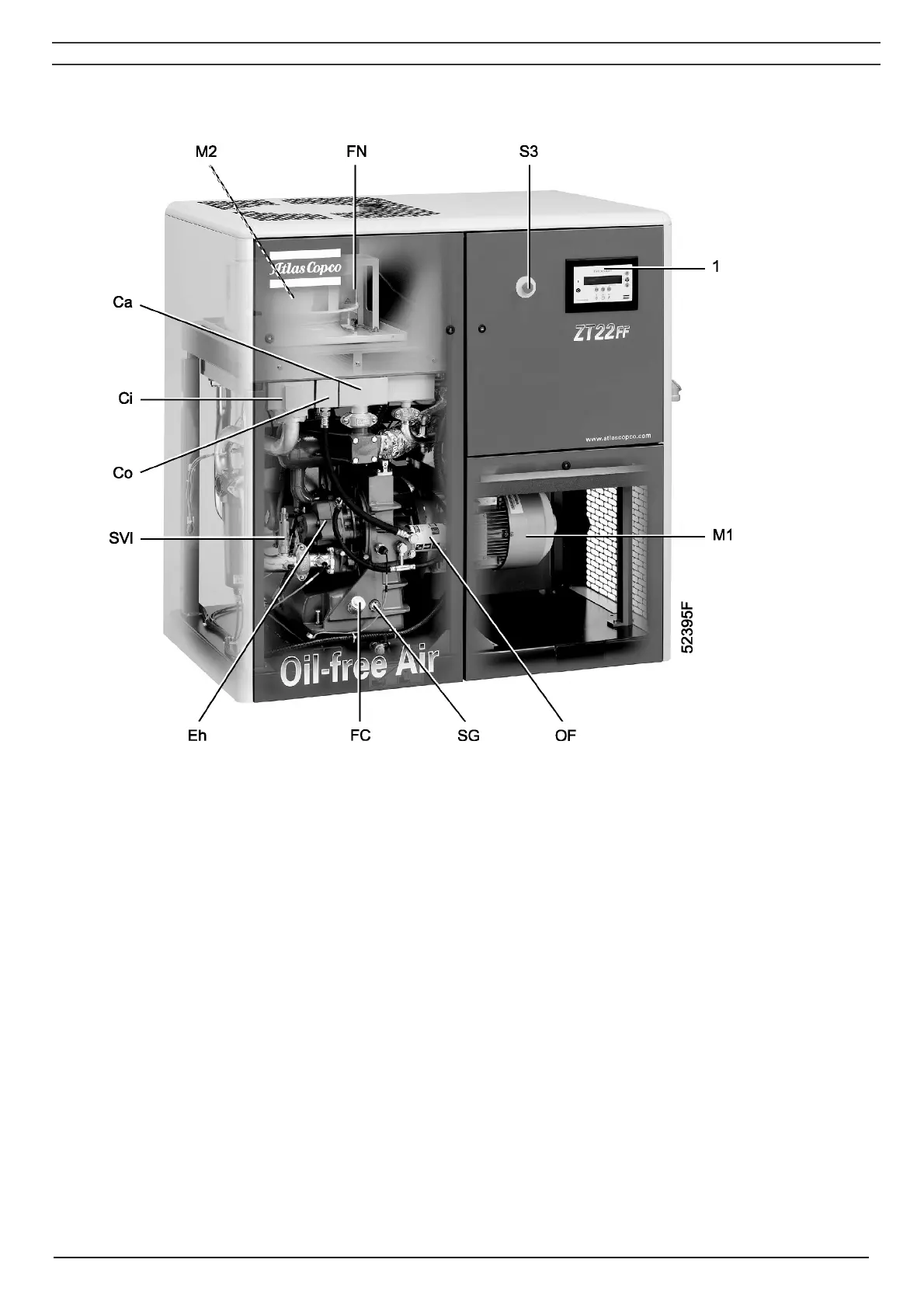

Fig. 1.2 Front view
