Instruction book
2920 1472 03 9

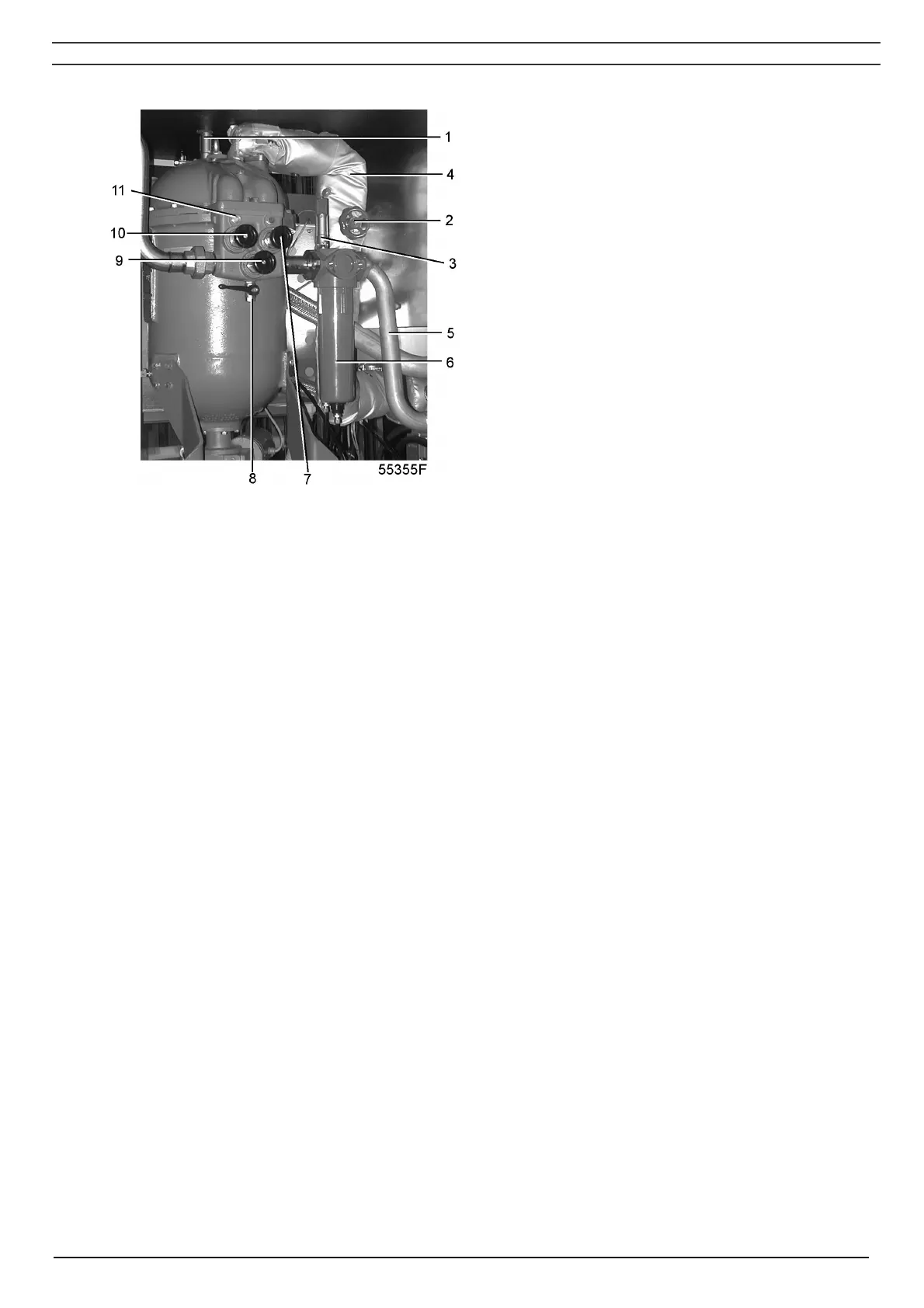

1 Safety valve
2 Shut-off valve, regeneration air
3 Safety valve
4 Inlet regeneration air
5 Inlet pipe, wet compressed air
6 Condensate trap, aftercooler
7 Dryer inlet valve
8 Manual drain valve
9 Dryer by-pass valve
10 Dryer outlet valve
11 Moisture indicator
Fig. 1.5 IMD dryer
