Introduction
Pass through support of 4K (UHD),
2560x2048, IR, RS-232, and lossy/lossless audio signals up to
230ft (70m). The 70C extenders provide an affordable, high quality, solution for your audio and
video needs.
Package Contents
Kit
RX
Features
• 1 x AT-UHD-EX-70C-TX
• 1 x AT-UHD-EX-70C-RX
• 1 x 48V DC desk top power supply
• 1 x IEC C13 power cable
• 5 x Female captive screw connector (2 pin (x1): power, 3 pin (x2): RS-232, and 5 pin (x2): IR)
• 2 x Pair of wall/table mount ears
• 1 x IR emitter (AT-IR-CS-TX)
• 1 x User manual
• 1 x AT-UHD-EX-70C-RX
• 2 x Female captive screw connector (3 pin: RS-232 and 5 pin: IR)
• 2 x Pair of wall/table mount ears
• 1 x IR emitter (AT-IR-CS-TX)
• 1 x User manual
• Extends IR, RS-232, and audio/visual content up to 328ft over a single category cable
• Supports resolutions up to 4K (UHD) 60Hz @ chroma sub-sampling 4:2:0 8-bit
• IR ports for use with IR remote controls and 3rd party IR controllers
• Provides PoE (Power over Ethernet) from transmitter to receiver
• Multichannel audio pass through up to Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos
• Full 3D pass through
• HDCP 2.2 compliant
• Field updatable firmware
Before You Start
• When installing the extenders DO NOT:
Cover the vents
Install into a sealed wall
Install into an area without adequate air ventilation
Do not
cover
venting!

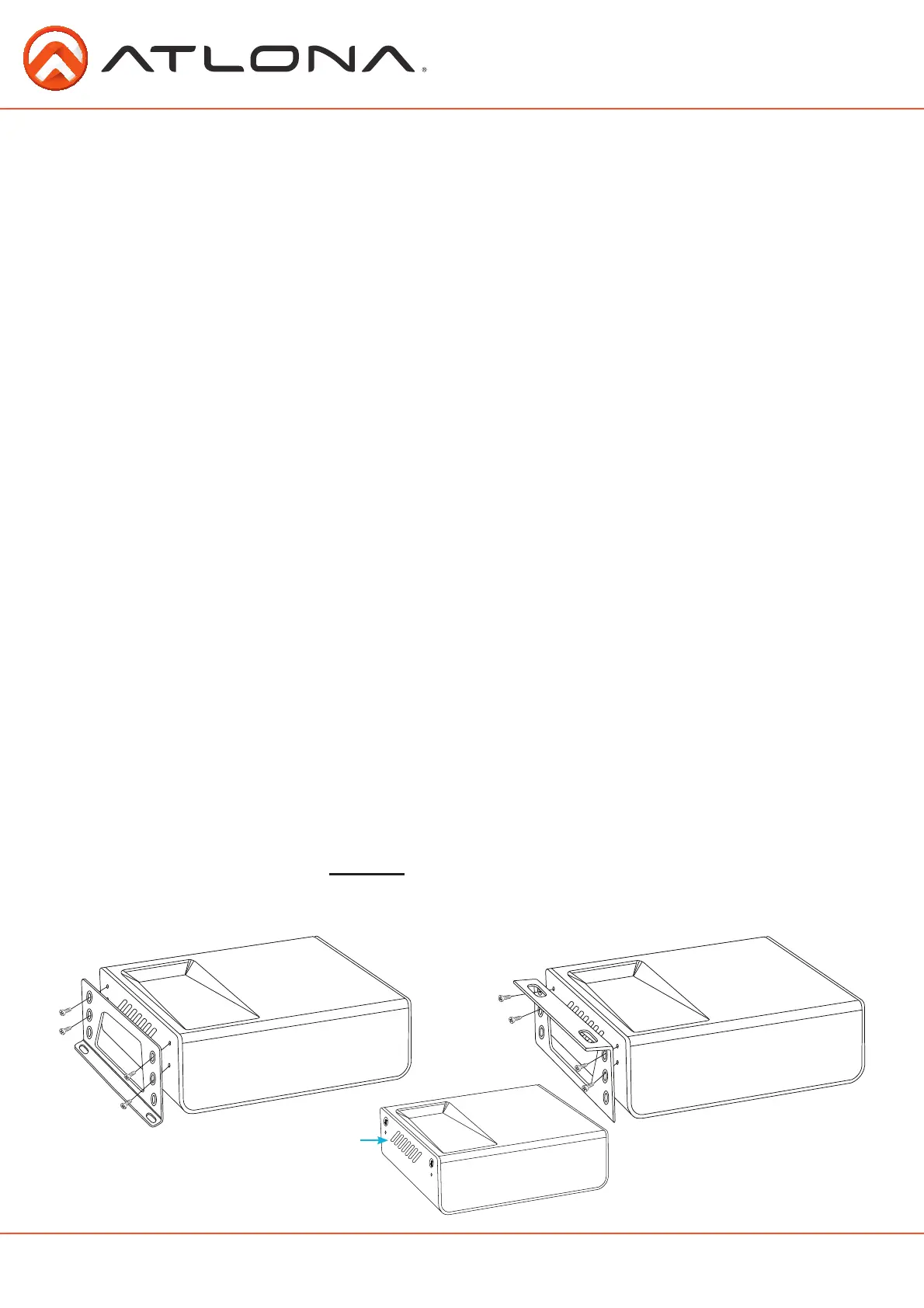

Connect the screws to these
four holes when mounting to
a wall.
*Remove the side screws from the case and use for bracket installation
Connect the screws to these
four holes when mounting to a
table.
To Next Page
