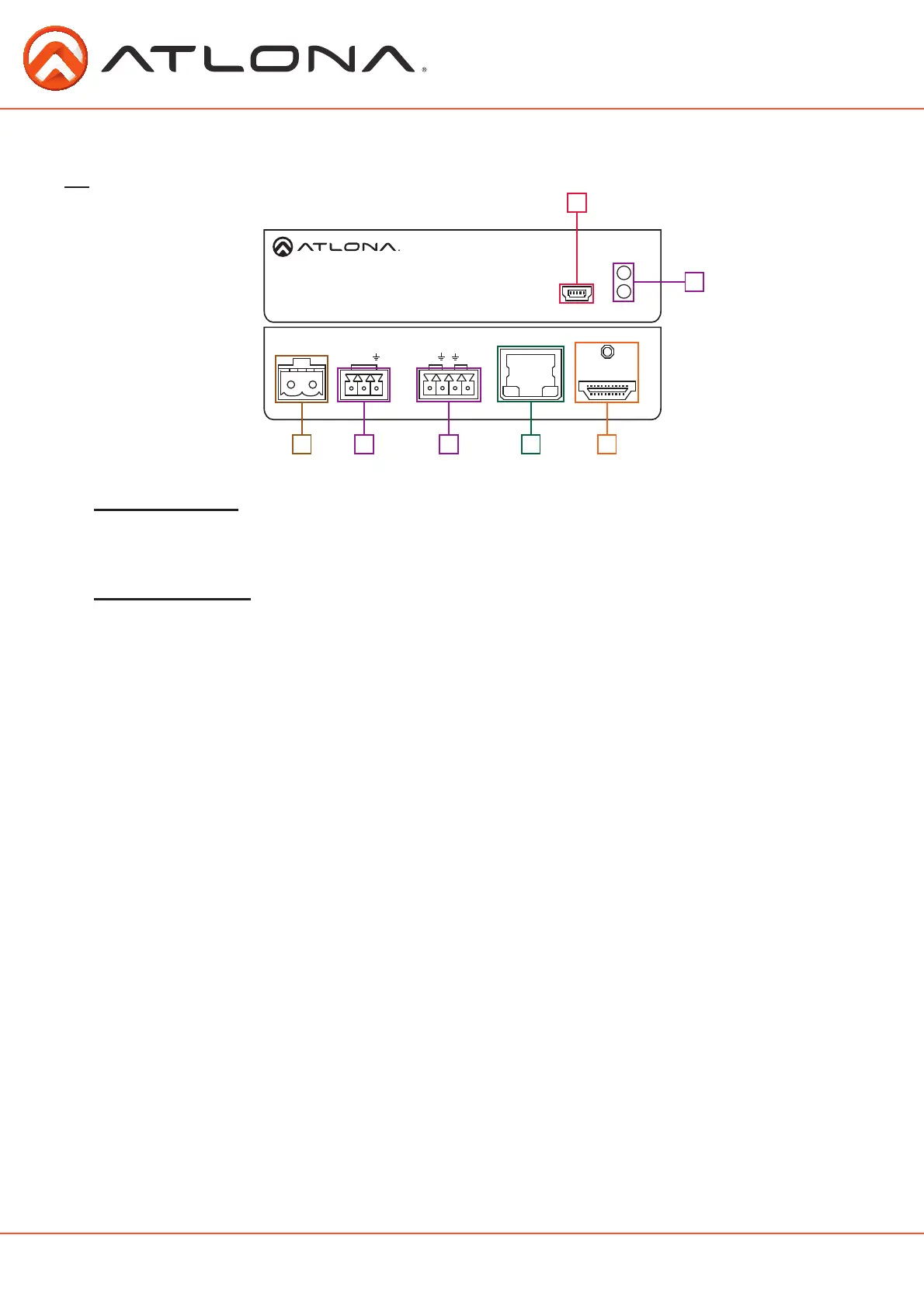

Panel Description
TX
1. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating
2. Yellow Link LED: Signal indicator for the HDBaseT OUT port
Solid - Good signal from the HDBaseT port
Blinking - HDBaseT port is disconnected or not transmitting signals
No Light - No signal is being received from the HDBaseT port
Green Power LED: Power indicator
Solid - Plugged in and receiving power
Blinking - Power is intermittent or there is a problem with the cable
No Light - No power is passing from the wall outlet to the transmitter (check the cable or outlet)
3. DC 48V - Connect included captive screw power adapter here
4. RS-232 - Bidirectional RS-232, send signal to or from a control system, PC, source, or display
5. IR - Connect IR emitter (included) or 3rd party control box to this port
6. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-70C-RX (included in KIT)
7. HDMI IN - Connect HDMI or DVI (with adapter) source here
Ex. Blu-ray player, cable box, HDDA series, H2H series, etc
