Atmel AT89C52 User Manual

Flash Programming and Verification Characteristics
T
A
= 21°C to 27°C, V
CC
= 5.0 ± 10%
Symbol Parameter Min Max Units
V
PP
(1)
Programming Enable Voltage 11.5 12.5 V
I
PP
(1)
Programming Enable Current 1.0 mA
1/t
CLCL
Oscillator Frequency 4 24 MHz
t
AVGL
Address Setup to PROG Low 48t
CLCL
t
GHAX
Address Hold After PROG 48t
CLCL
t
DVGL
Data Setup to PROG Low 48t
CLCL
t
GHDX
Data Hold After PROG 48t
CLCL
t
EHSH
P2.7 (ENABLE) High to V
PP
48t
CLCL
t
SHGL
V
PP
Setup to PROG Low 10 µs
t
GHSL
(1)
V
PP
Hold After PROG 10 µs
t
GLGH
PROG Width 1 110 µs
t
AVQV
Address to Data Valid 48t
CLCL
t
ELQV
ENABLE Low to Data Valid 48t
CLCL
t
EHQV
Data Float After ENABLE 0 48t
CLCL
t
GHBL
PROG High to BUSY Low 1.0 µs
t
WC
Byte Write Cycle Time 2.0 ms
Note: 1. Only used in 12-volt programming mode.
P1
P2.6
P3.6
P2.0 - P2.4
A0 - A7
ADDR.
OOOOH/1FFFH
SEE FLASH
PROGRAMMING
MODES TABLE
4-24 MHz
A8 - A12
P0
+5V
P2.7
PGM
DATA
PROG
V/V
IH PP
V
IH
ALE
P3.7
XTAL 2 EA
RST
PSEN
XTAL 1
GND
V
CC
AT89C52

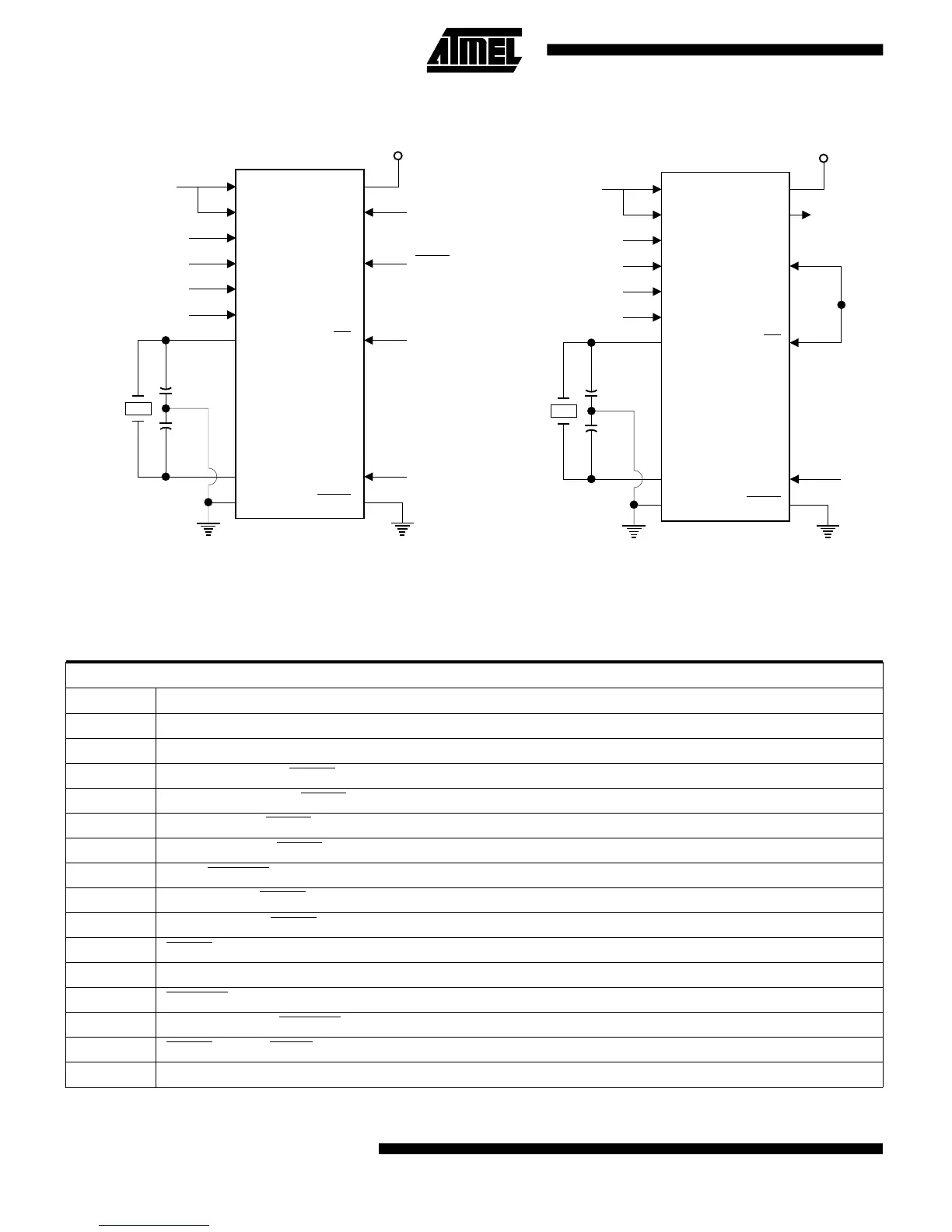

Figure 9. Programming the Flash Memory
P1
P2.6
P3.6
P2.0 - P2.4
A0 - A7
ADDR.
OOOOH/1FFFH
SEE FLASH
PROGRAMMING
MODES TABLE
4-24 MHz
A8 - A12
P0
+5V
P2.7
PGM DATA
(USE 10K
PULLUPS)
V
IH
V
IH
ALE
P3.7
XTAL 2 EA
RST
PSEN
XTAL 1
GND
V
CC
AT89C52
Figure 10. Verifying the Flash Memory
14 AT89C52
