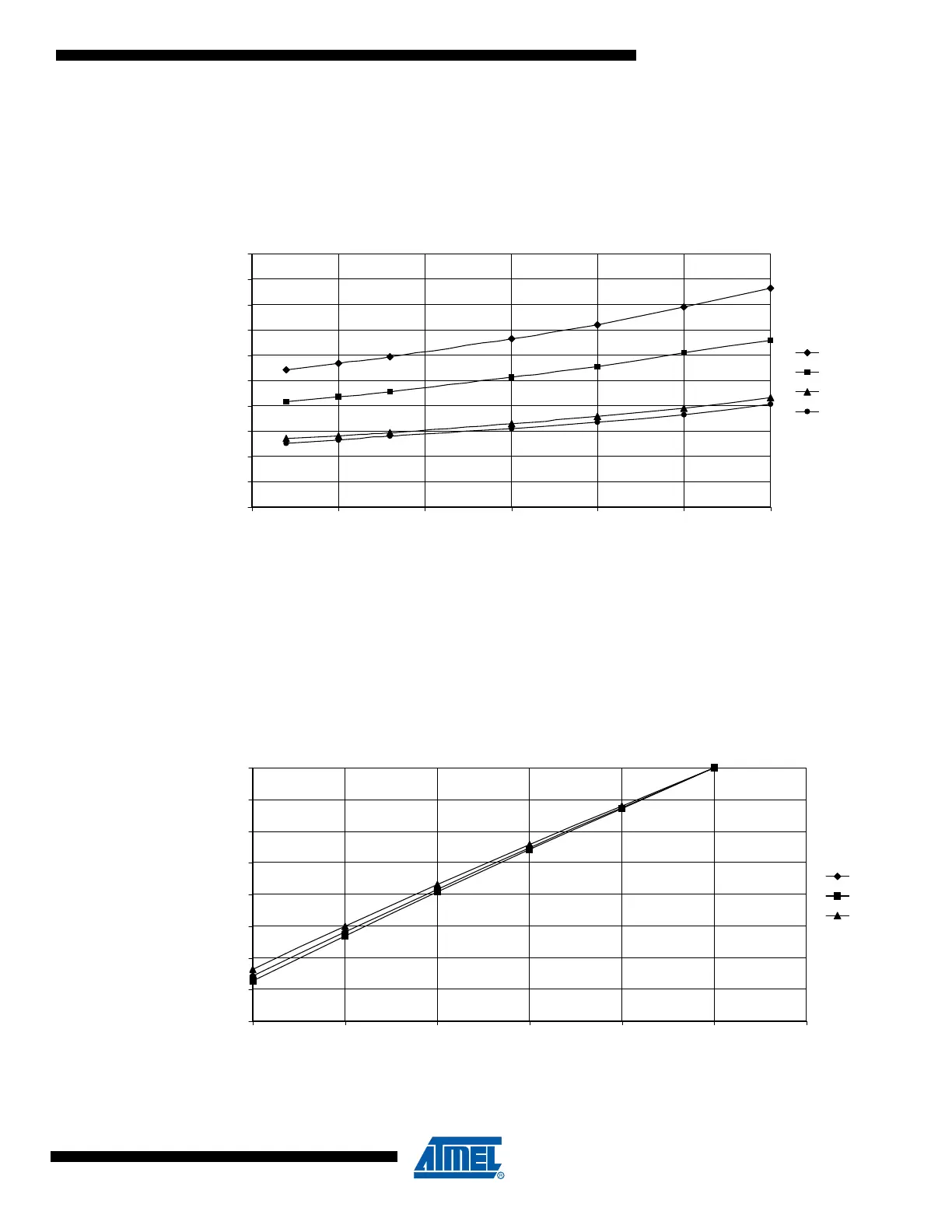

28.5 Standby Supply Current
Figure 28-14. Power-save Supply Current vs. Vcc (25°C, Watchdog Timer Disabled)
28.6 Pin Pull-up
Figure 28-15. I/O Pin Pull-up Resistor Current vs. Input Voltage (Vcc = 5V)
STANDBY SUPPLY CURRENT vs. Vcc (25°C, Watchdog Timer Disabled)
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
0.18
0.2
2.5 3 3.5 4 4.5 5 5.5
Vcc (V)
Icc (mA)
6 MHZ Xtal
4 MHZ Res
2 MHZ Xtal
2 MHZ Res
I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE (Vcc = 5V)
-160
-140
-120
-100
-80
-60
-40
-20
0
0123456
V
IO
(V)
I
IO
(uA)
85°C
25°C
-40°C
