Atmel AVR1612 User Manual

4
AVR1612
8282A-AVR-11/10

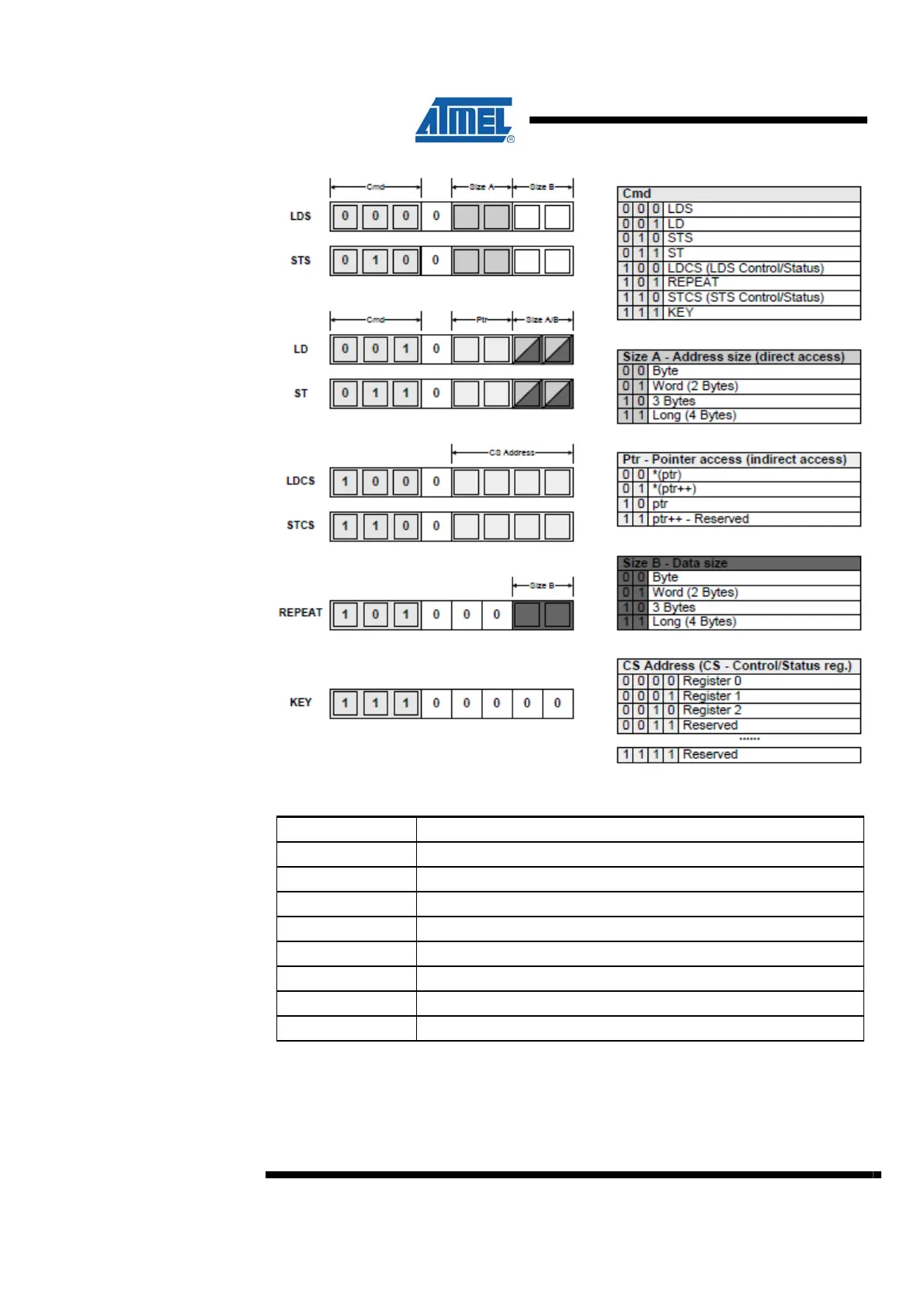

Figure 2-4. PDI instruction set summary.
Table 2-1. PDI Instruction Set.
PDI Command Command Description
LDS (0x00) Load data from PDIBUS Data Space using direct addressing
STS (0x40) Store data to PDIBUS Data Space using direct addressing
LD (0x20) Load data from PDIBUS Data Space using indirect addressing
ST (0x60) Store data to PDIBUS Data Space using indirect addressing
LDCS (0x80) Load data from PDI Control and Status Register Space
STCS (0xC0) Store data to PDI Control and Status Register Space
KEY (0xE0) Set Activation Key
REPEAT (0xA0) Set Instruction Repeat Counter
Note: For more information, please refer to “PDI instruction set summary” in the
“Program and Debug Interface” section of XMEGA A MANUAL
