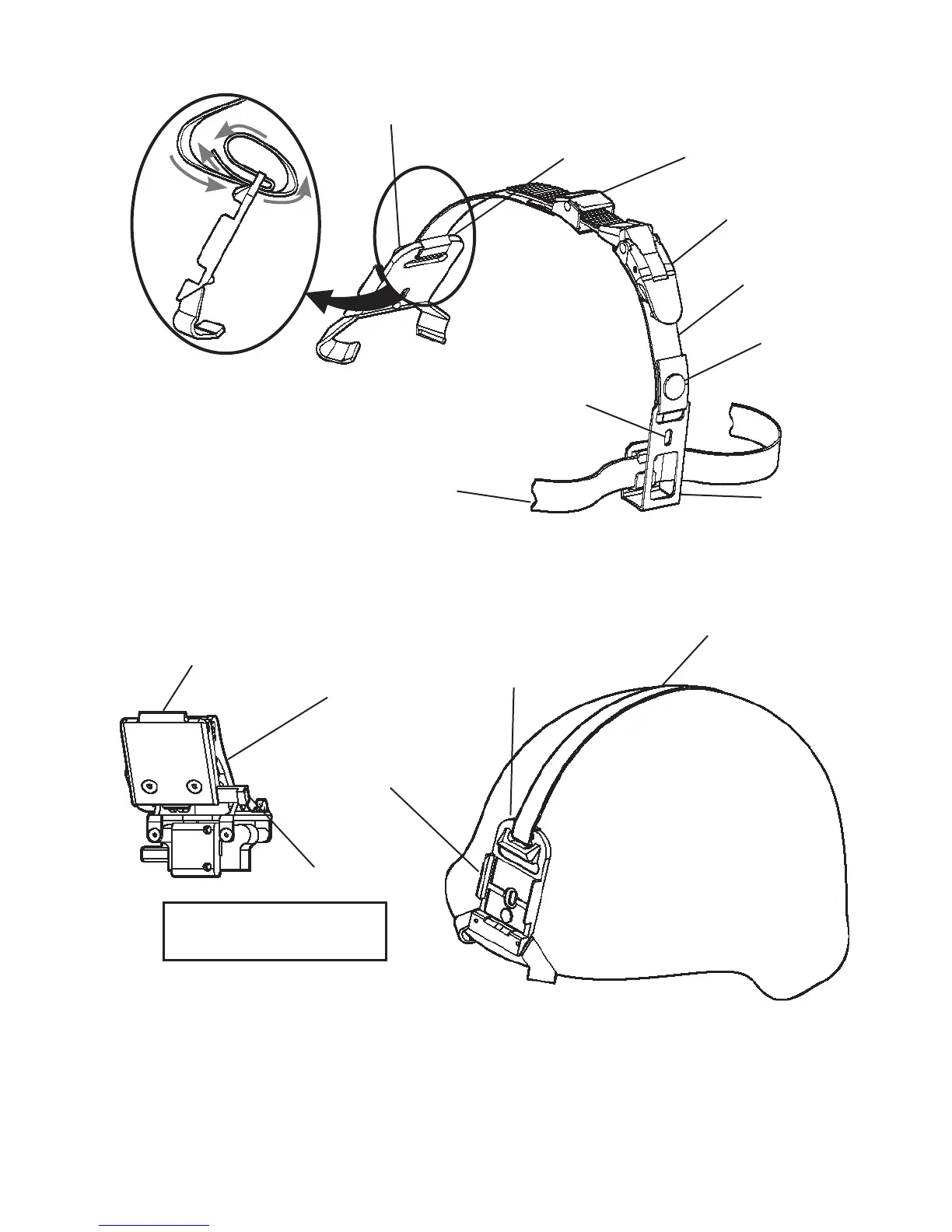

FIGURE 2.4. INSTALLATION OF HELMET MOUNT
FIGURE 2.5. HELMET MOUNT
(8) Disengage the nape strap latch on the left side of nape strap.
(9) Don the helmet. Do not fasten the helmet chinstrap.
TOP EDGE
OF MOUNT
MOUNT
RELEASE
KEEPER
HELMET
MOUNT
BRACKET
STRAP
MOUNT IS ROTATED
90° FOR CLARITY
KEEPER
HELMET
MOUNT
BRACKET
CATCH
BUCKLE
LEVER
STRAP
REAR
SNAP
REAR
MOUNTING
HOLE
REAR
BRACKET
NAPE
STRAP
