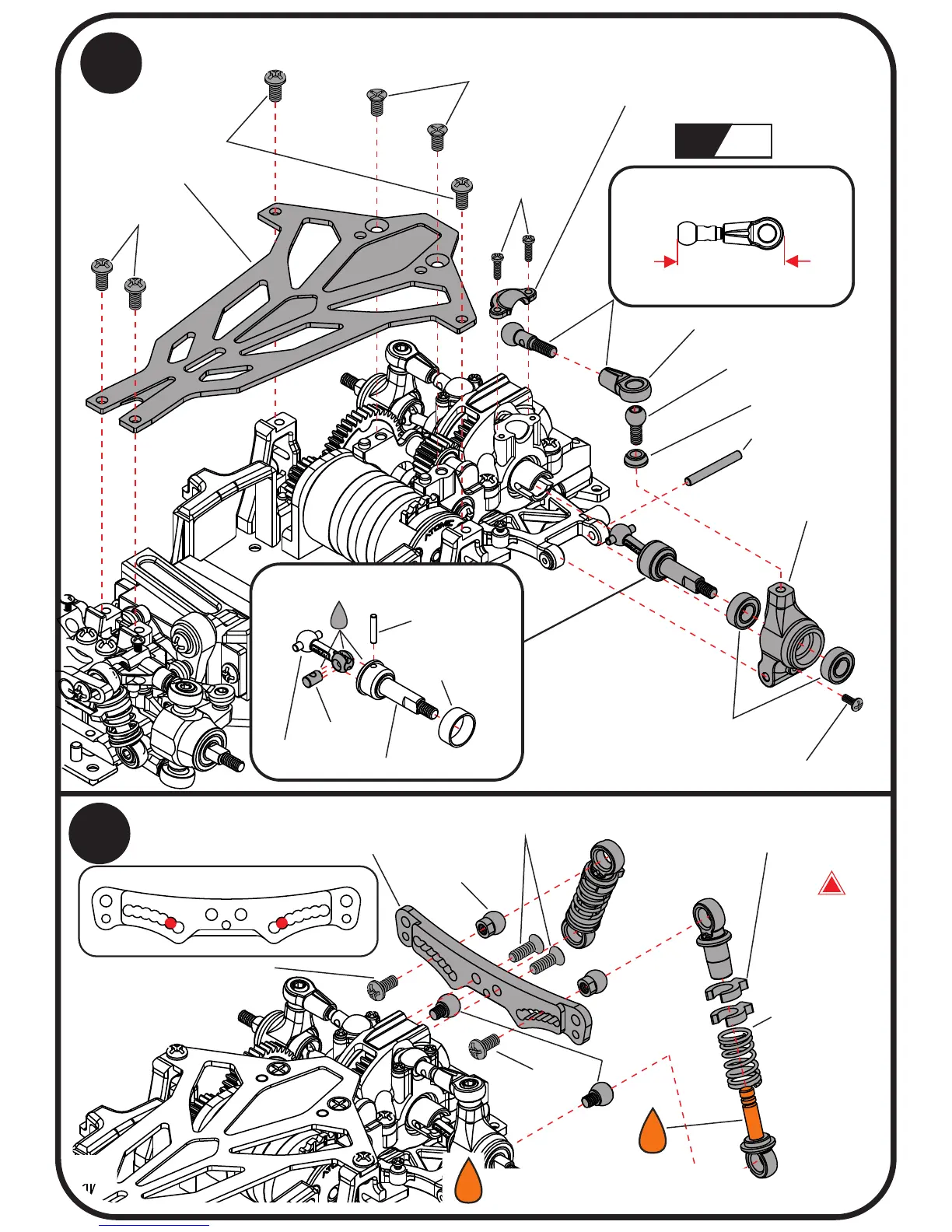

Atomic DRZ - Rear Assembly and Drivetrain; 20. Attaching Rear camber linkage; 21. Attaching Rear shocks tower

20
Attaching Rear camber linkage
21
Attaching Rear shocks tower
Default setup
Wheel axle
Swing shaft
Cross joint
Lock collar
oil
CVD assembly
1x5.5mm
Default setup
19.0mm
(0 degree camber)
3x6x2
Bearing
Rear hub
L R
M1.2x4
M1.2x3
M2x4
M2x4
M2x4KM
1.5x13mm pin
Collar
Linkage Ball 3.5mm
Ball end
3.5mm
Linkage Ball cover
Upper deck
oil
We recommend to apply #15000
Damper Grease to the shocks.
oil
Sping (Long)
Default setup
Shock Alignment
Clip 1.5 +1.5mm
Linkage Ball
(4mm)
Shocks
Linkage Ball
(4mm)
M2x4PM
M2x4PM
2x6KM
P.9
Rear shocks tower
!
