Test Pattern Generation Mode
A major part of video engineering is
signal testing and verification. The
Connect-AC is also a convenient test
solution for these tasks. With four
built-in test patterns and SD, HD as well
as 3G video modes supported, you can
test your equipment in a cost effective,
professional way. When in Test Pattern
Generation (TPG) Mode, both the video
mode and the test pattern output can
be changed.
Using TPG

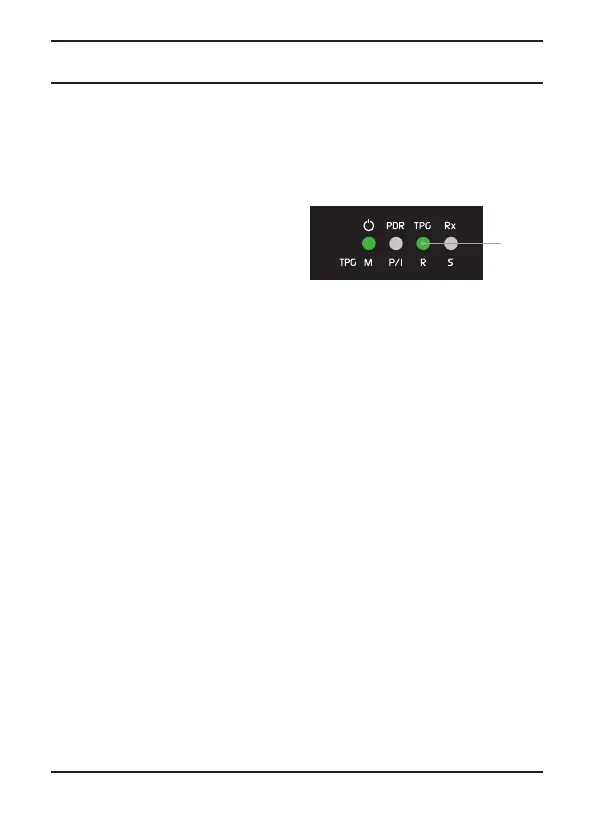

TPG Mode is entered by pressing and
holding the MODE button for more than
2 seconds. This mode will be indicated
by a GREEN LED on the TPG indicator.
This is the TPG Home state. To return
to Converter Mode, press the MODE
button again for more than 2 seconds.
TPG Mode ON (Home)
After TPG Mode has been activated,
pressing the MODE button at any time
will utilise all four LEDs to indicate the
current video output mode, as per the
following indicators.
Operation
Atomos Connect-AC User Manual V1.0 6
GREEN
TPG
