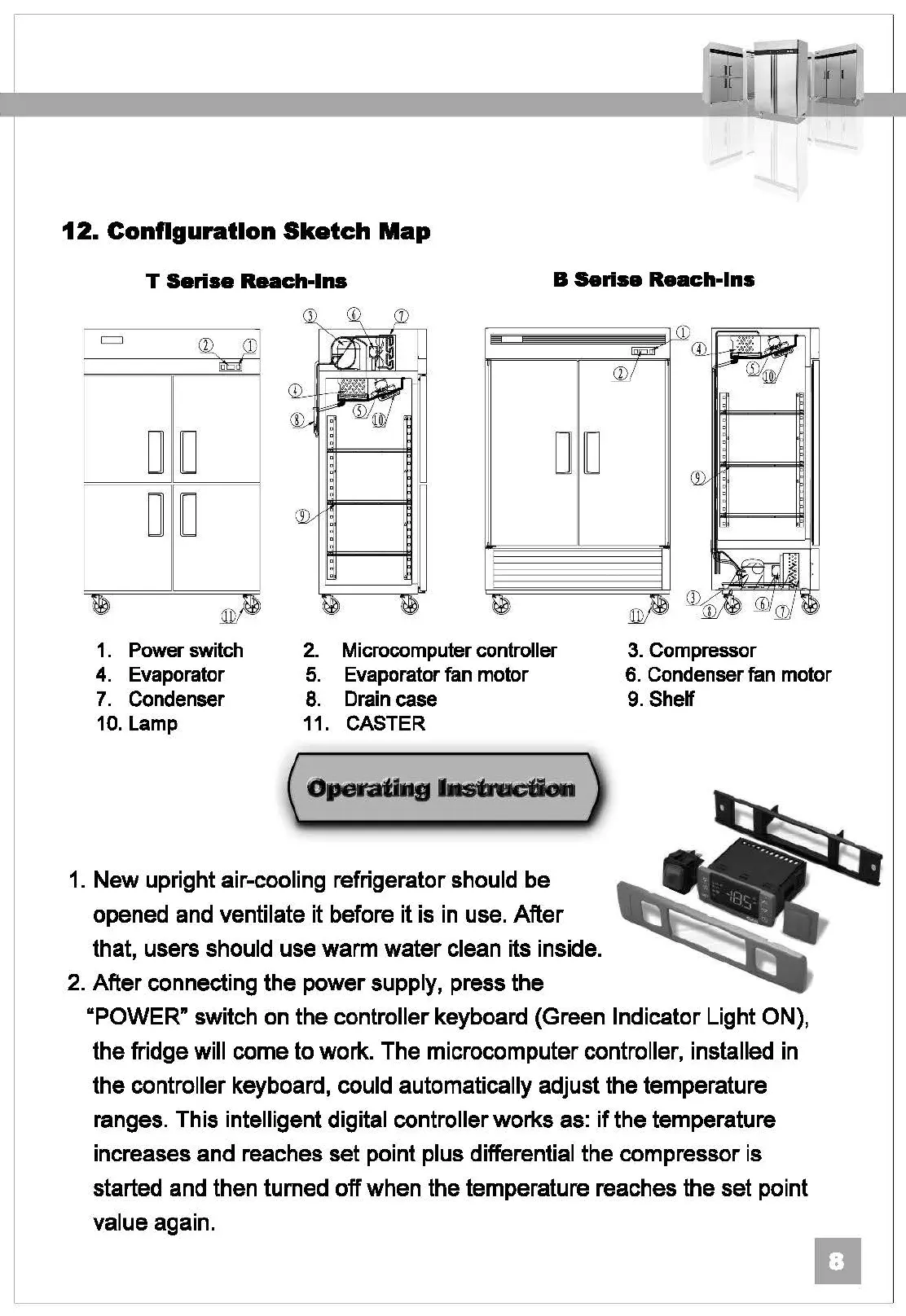

12. Configuration Sketch Map
T Seri- Reach-Ins
~ I
DD
DD
=
~
B Serisa Reach-Ins
CD
~
fil l
D D
'~
·- · I
(
3. Compressor 1. Power switch
4. Evaporator
7. Condenser
10. Lamp
2. Microcomputer controller
5. Evaporator fan motor
8. Drain case
6. Condenser fan motor
9.Shelf
11. CASTER
1. New upright air-cooling refrigerator should be
opened and ventilate it before it is in use. After
that, users should use warm water clean its inside.
2. After connecting the power supply, press the
"POWER" switch on the controller keyboard (Green Indicator Light ON),
the fridge will come to work. The microcomputer controller, installed in
the controller keyboard, could automatically adjust the temperature
ranges. This intelligent digital controller works as: if the temperature
increases and reaches set point plus differential the compressor is
started and then turned off when the temperature reaches the set point
value again.
