When installing the AU7 onto a vehicle, please make sure that the XYZ-position of the device follows the
exact same directions as shown below. The G-Sensor operates in such a way in order to detect harsh driving
events. The forces in each axis are used to determine the status of harsh driving events. If the following
installation is not practicable, it is advised to use the GPS for detecting harsh driving as an alternative.
1. Note: When installing the device, the vehicle should be parked on a horizontal place (not tilted).
Then, the device should be installed parallel to the vehicle body and fixed with a mounting
bracket or double-sided adhesive to ensure that the G-Sensor works properly.
2. Note: It is strongly recommended that an automobile technician is required to be involved for the
above installation.

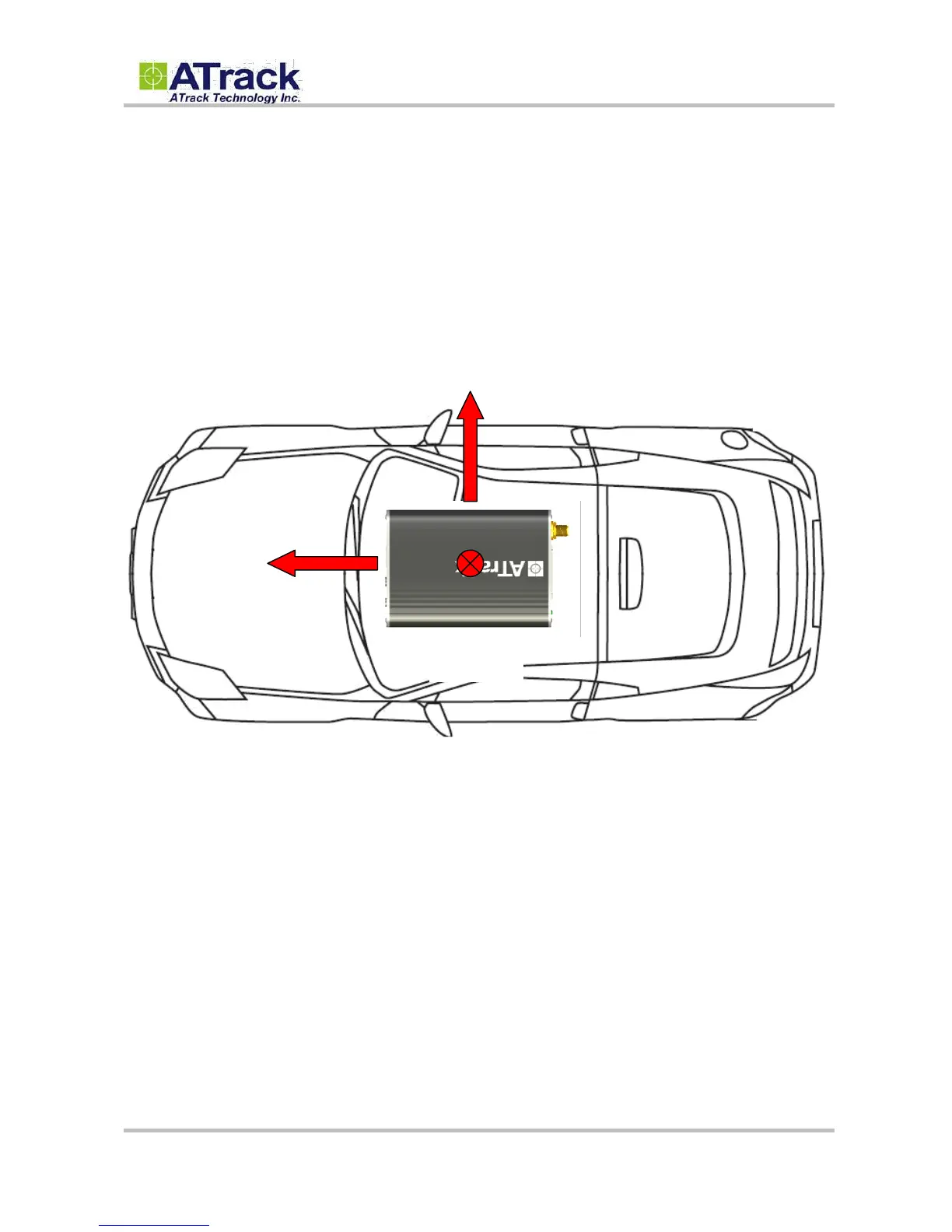

Y-Axis
X-Axis
Z-Axis
