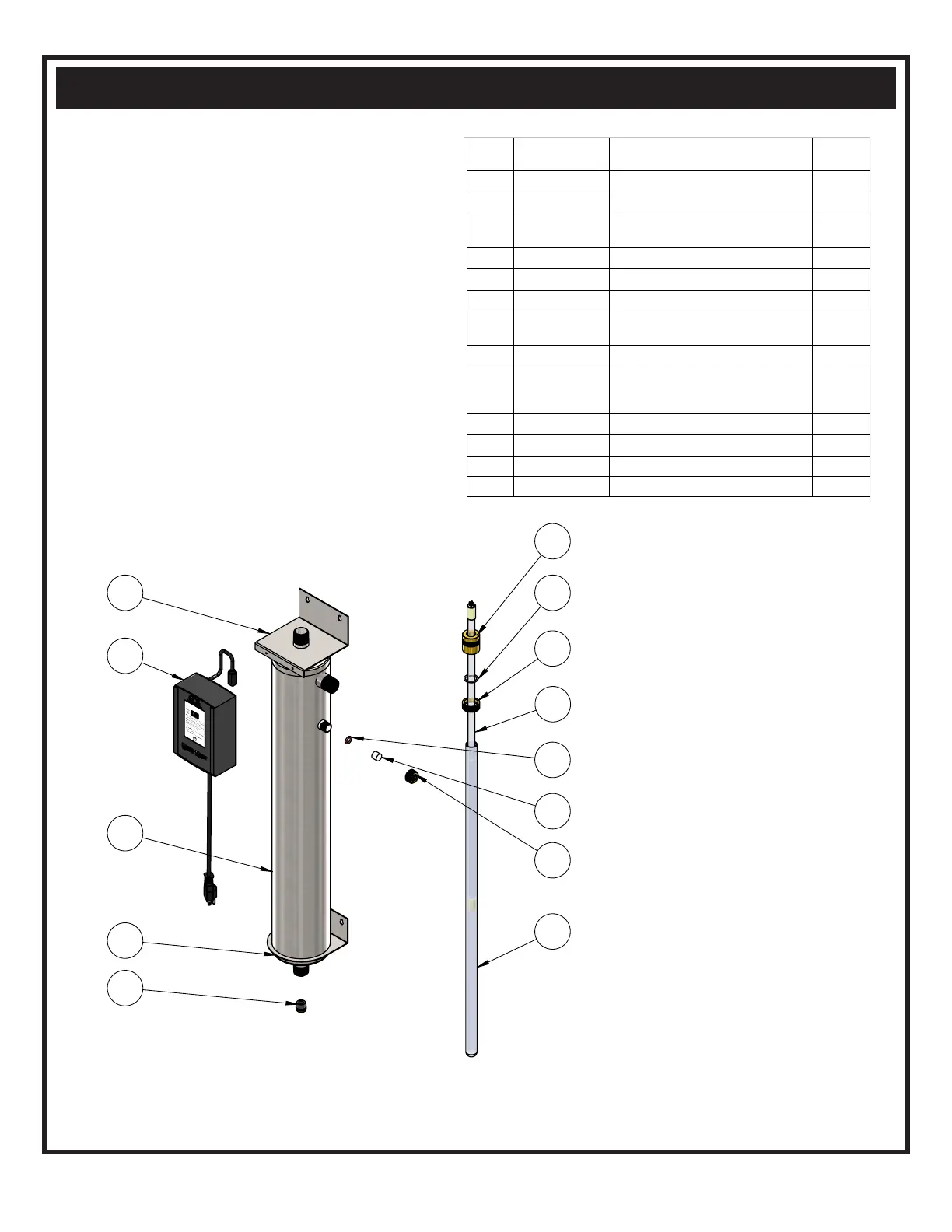

Parts Breakdown - GDS-20
8
6
5
1
12
13
2
7
3
4
10
11
9
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
ATS-832D
Domed Quartz
1
2
ATS4-810
UV Lamp
1
3
ATS-5173
Orange .7" OD Viewport O
Ring
1
4
ATS-5172
Sightport Lens
1
5
ATS-5171
Sightport Nut
1
6
ATS5-410
Lock Nut
1
7
ATS8-544
Quartz Sleeve Black 1.2" OD
ORing
1
8
ATS5-414
End Nut
1
9
STS-20GPM
20 Gallon Per Minute
Bottom Feed Assembled
Chamber
1
10
ATS-271
Bottom Mounting Bracket
1
11
ATS-270
Top Mounting Bracket
1
12
ATS-20GPM
Flow Control
1
13
ATS-GDS
GDS Control Box
1
DO NOT SCALE DRAWING
SHEET 1 OF 1
SCALE:
WEIGHT:
REV
DWG. NO.
SIZE
TITLE
NAME
DATE
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
5
4
3
2
1
TDB
DRAWN
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
UNLESS OTHERWISE SPECIFIED:
3/29/2017
B
GDS-20 CUSTOMER BOM
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
ATS-832D
Domed Quartz
1
2
ATS4-810
UV Lamp
1
3
ATS-5173
Orange .7" OD Viewport O
Ring
1
4
ATS-5172
Sightport Lens
1
5
ATS-5171
Sightport Nut
1
6
ATS5-410
Lock Nut
1
7
ATS8-544
Quartz Sleeve Black 1.2" OD
ORing
1
8
ATS5-414
End Nut
1
9
STS-20GPM
20 Gallon Per Minute
Bottom Feed Assembled
Chamber
1
10
ATS-271
Bottom Mounting Bracket
1
11
ATS-270
Top Mounting Bracket
1
12
ATS-20GPM
Flow Control
1
13
ATS-GDS
GDS Control Box
1
DO NOT SCALE DRAWING
SHEET 1 OF 1
SCALE:
WEIGHT:
REV
DWG. NO.
SIZE
TITLE
NAME
DATE
MFG APPR.
ENG APPR.
CHECKED
FINISH
MATERIAL
5
4
3
2
1
TDB
DRAWN
A
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
AQUA TREATMENT SERVICES. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
AQUA TREATMENT SERVICES IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
.25"
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.002"
UNLESS OTHERWISE SPECIFIED:
3/29/2017
B
GDS-20 CUSTOMER BOM
