VALVE BODY BORE NUMBERS
AND VALVE IDENTIFICATION
FORD AXODE
VALVE BODY
FRONT VIEW
VALVE BODY
REAR VIEW

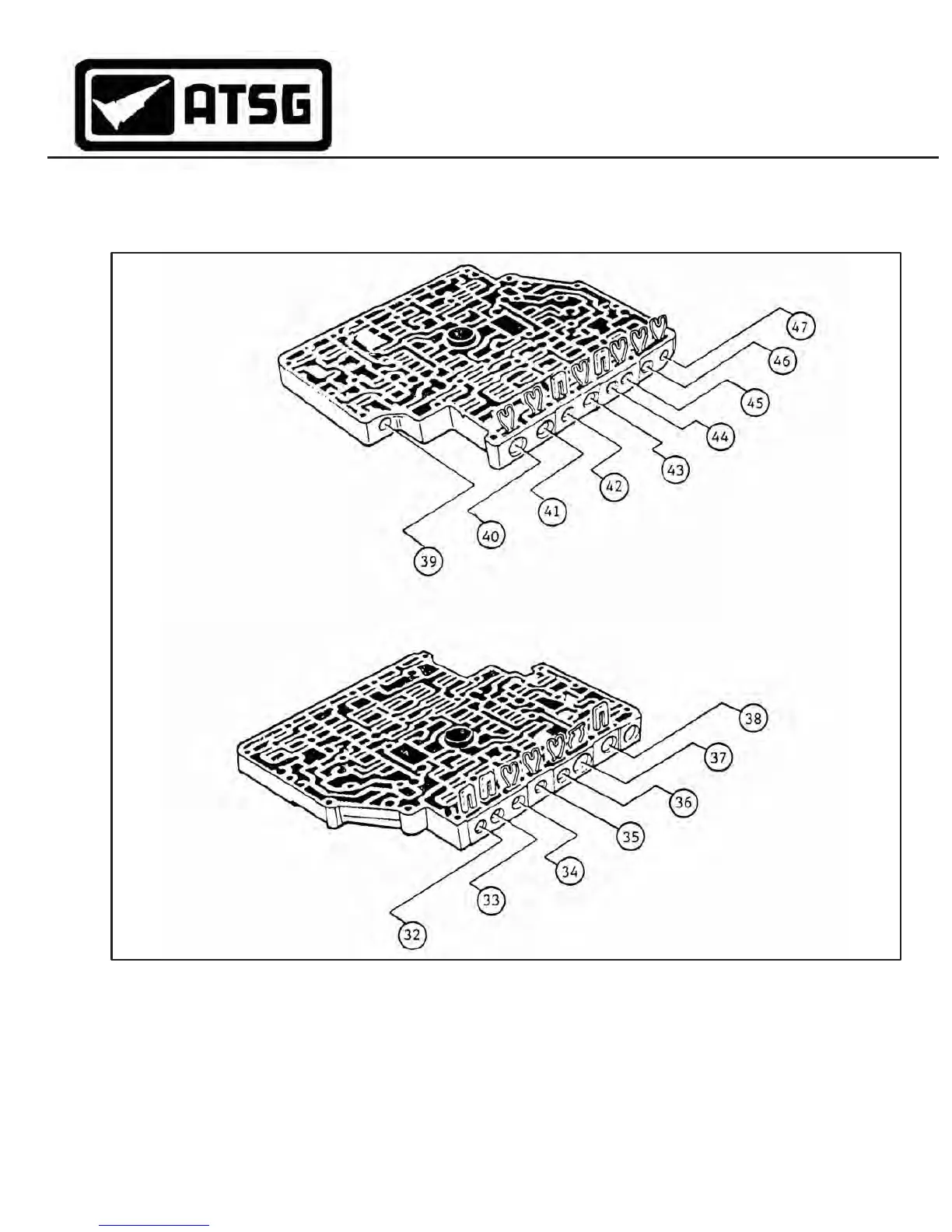

On this page we have assigned numbers to all of the valve body bores and re-drawn the valves and springs and
placed them in their proper locations, with each valve oriented properly and the function identified, as shown on
the following pages. Most of the manuals presently in print are wrong.
USE THIS MANUAL TO PROPERLY ASSEMBLE THE AXODE (AX4S) VALVE BODY
Figure 68
