ATSG AXOD - AXODE (AX4 S) Premature Planetary Failure; Premature Planetary Failure

95

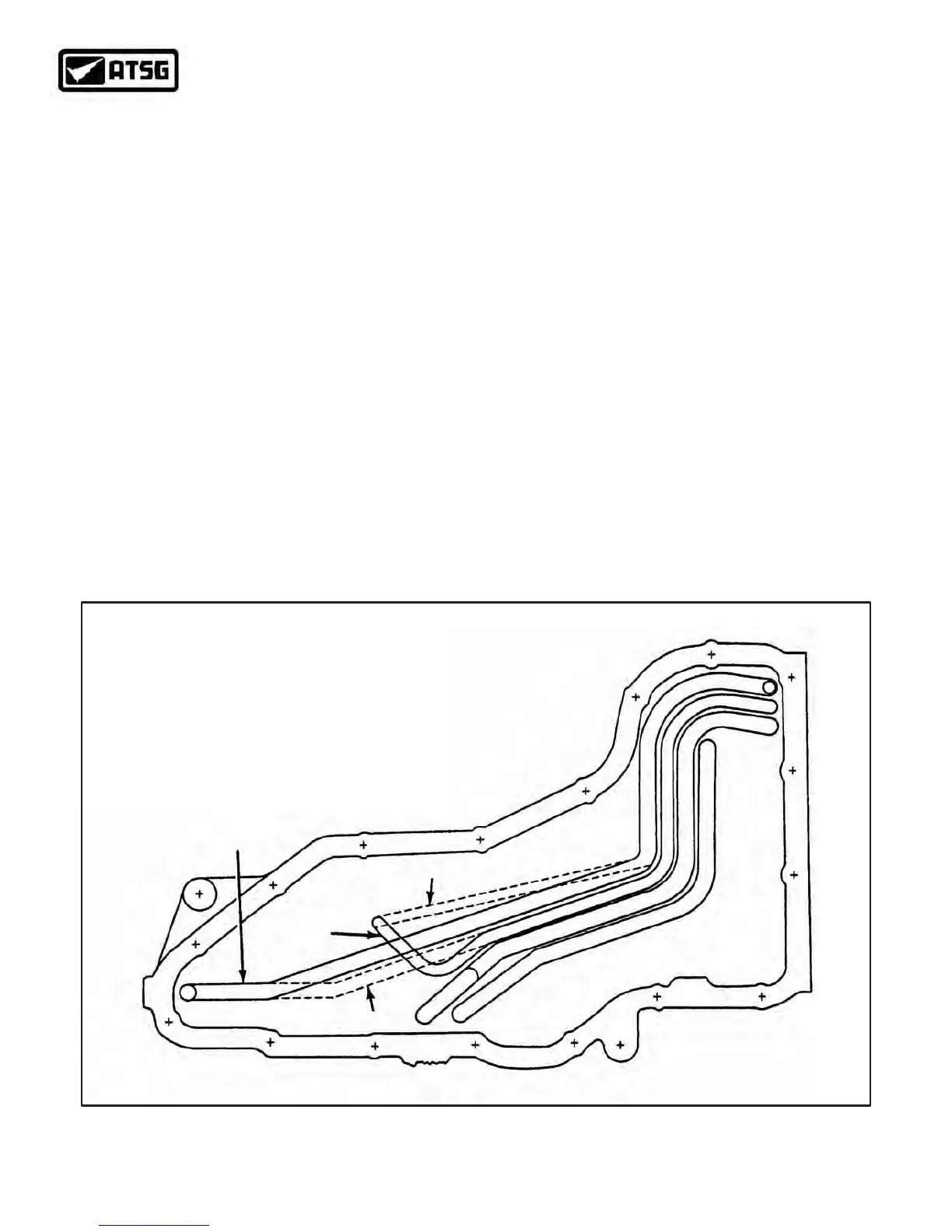

Figure 83
Copyright © 2002 ATSG
AUTOMATIC TRANSMISSION SERVICE GROUP
Technical Service Information
PREMATURE PLANETARY FAILURE
ORIGINAL
ORIGINAL
REAR
LUBE
TUBE
DIFF/SPEEDO
LUBE TUBE
AXODE (AX4S)
COMPLAINT:
CAUSE:
CORRECTION:
SERVICE INFORMATION:
Front planetary and gear train failure with no visible root cause.
The cause may be, a limited volume of lube oil to the front planetary due to hydraulic control
system demands.
Install a new design "Cross-over" rear lube tube and a new design Differential/Speedo lube
tube, that will increase the volume of lube oil to the front planetary system, as shown in
Figure 83. This requires the rear lube tube to "Cross-over" the differential and speedo lube
tube, as shown in Figure 83.
This change was implemented in mid-year 1992 for all AXODE transaxles.
Crossover Rear Lube Tube ....................................................................... F2DZ-7G084-A
Differential/Speedo Lube Tube ................................................................. F2DZ-7G086-A
