Connections on the R608 and R60F
The following diagrams show the connections for Mini-SAS cables and I
2
C cables on the R608 and R60F.

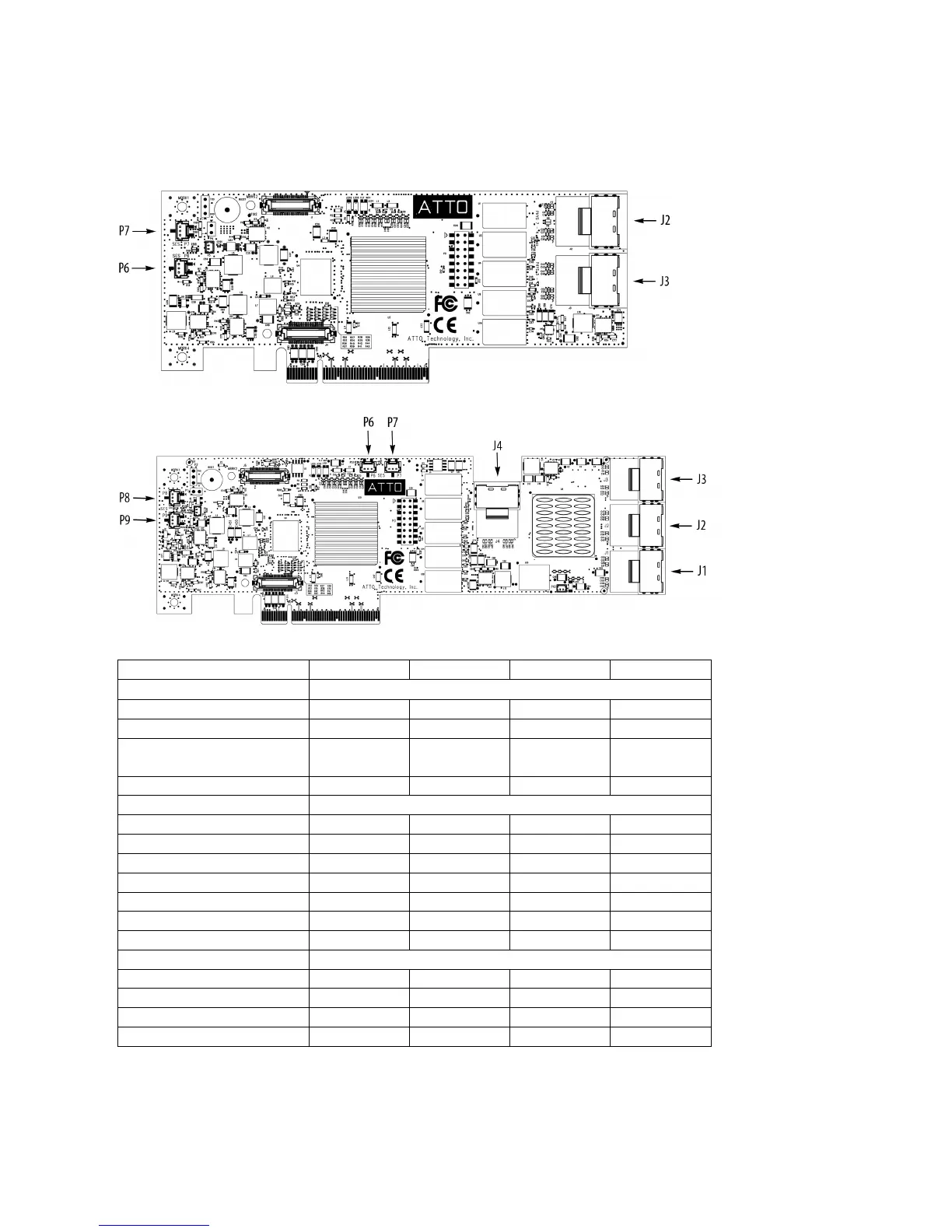

Exhibit 6.1-3 R608 connectors
Exhibit 6.1-4 R60F connectors
Exhibit 6.1-5 ESAS HBA and RAID Adapter summary
R608 R60F H608 H60F
Number of I2C Buses 2 2 2 4
Number of I2C Headers 2 4 2 4
Number of Mini-SAS
Connectors
2 4 2 4
I2C BUS I2C Headers
1 – 1st header P7 P8 P6 P5
1 – 2nd header n/a P9 n/a n/a
2 – 1st header P6 P6 P5 P6
2 – 2nd header n/a P7 n/a n/a
3 – 1st header
n/a
n/a
n/a
P7
4 – 1st header
n/a
n/a
n/a
P8
PHYs Label of Mini-SAS Connector
0-3 J3 J1 J2 J1
4-7 J2 J2 J1 J2
8-11 n/a J3 n/a J4
12-15 n/a J4 n/a J3
