AUDAC ANI22 - Page 6

6
Step 5:

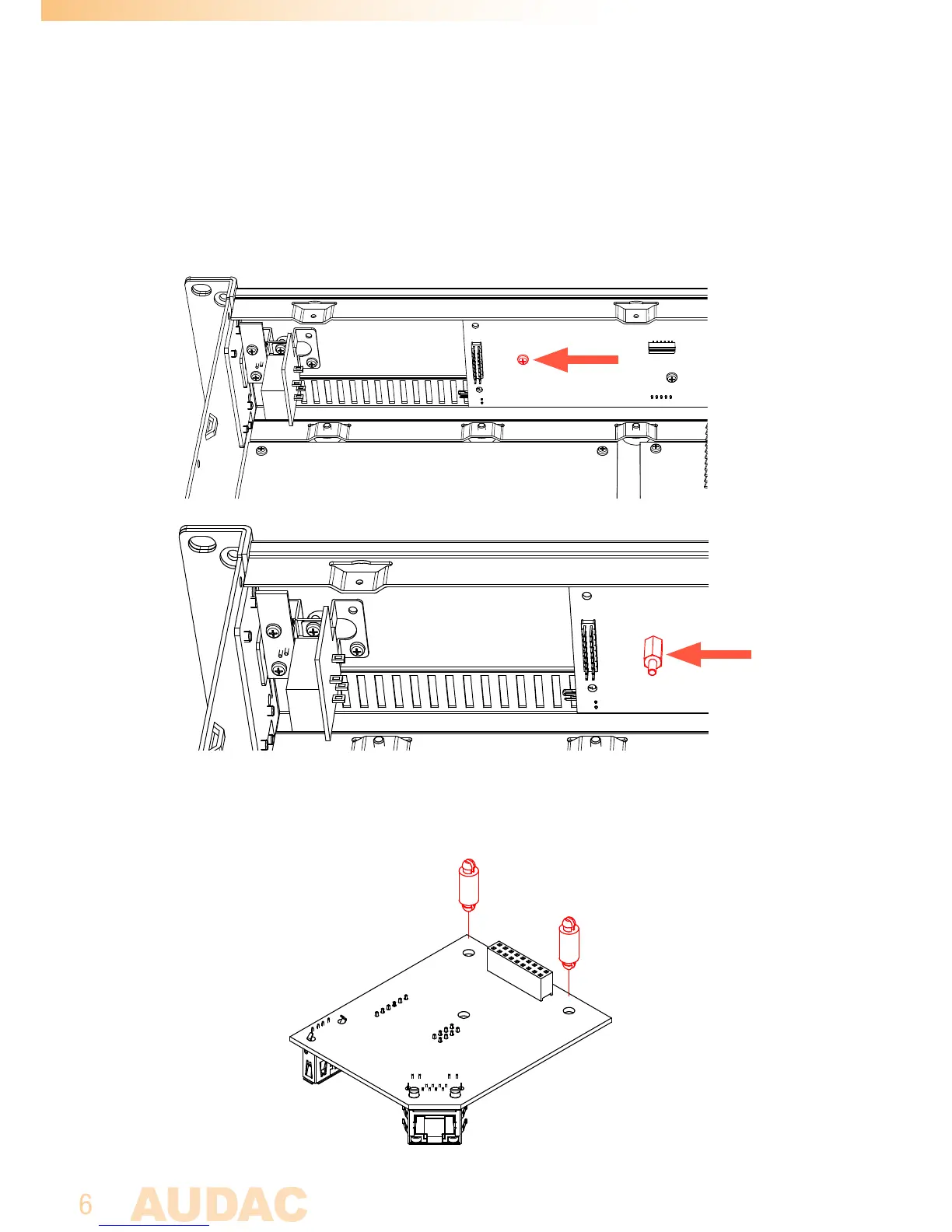

Mount the ANIxx main interface board into the amplifier:
5.1. Remove the screw on the most left side of the front display board of the amplifier
and replace it by the supplied M3 spacer.
5.2. Insert both supplied nylon snap-in spaces into the appropriate holes in the ANIxx
main interface board as indicated in the below image.
