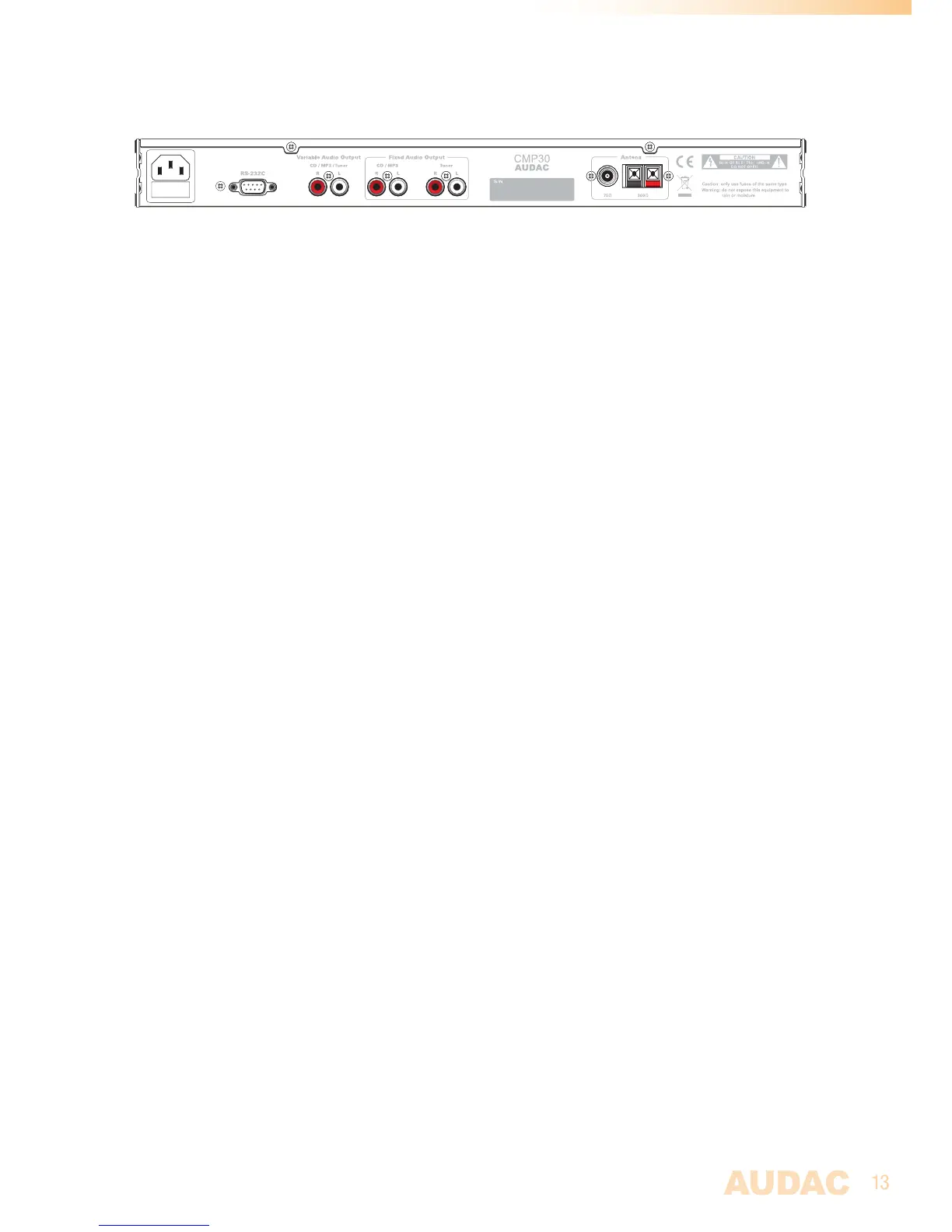

Rear Panel overview
Rear panel description
Power inlet:
Themainspowersupply(110~240VAC/50~60Hz)hastobeappliedtothisACpower
inlet.TheconnectionismadebyanIECC14powerconnectorwhichisfittedwithafuse.
Whenreplacingthefuse,makesurethatthevalueofthereplacementfusematchesthe
valueoftheoriginalfuse.(T500mAL/250V)
RS232 control port:
TheRS232controlportcanbeusedforcontrollingthedevicethroughexternalhardware
suchasaudiovisualinstallations,home&industrialautomationsystems,computers,...
ThecompletecommandslistforcontrollingtheCMP30throughRS232canbe
downloadedfromtheAUDACwebsite.
Variable audio output CD/MP3/Tuner:
ThevariableaudiooutputcanbeswitchedbetweenCD/MP3ortunermodeandthe
outputlevel(volume)canbeadjusted.Theselectionandvolumeadjustmentshould
bedoneusingtherotaryfunctiondial.Inmostbasicaudioapplicationwhereonlyone
simultaneoussourceisrequired(eitherCD/MP3ortuner),thevariableaudiooutputwillbe
used.
Fixed audio output CD/MP3:
ThesignalonthisoutputisdedicatedtotheCD/MP3player,andhasaconstantline
outputlevel(thevolumeisnotadjustable).Thisoutputcanbeusedforaudioapplications
wheremultiplesourcesaresimultaneouslyused(CD/MP3andtuner),suchasMulti-Zone
audioapplications.
Fixed Audio Output Tuner:
Thesignalonthisoutputisdedicatedtothetuner,andhasaconstantlineoutputlevel
(thevolumeisnotadjustable).Thisoutputcanbeusedforaudioapplicationswhere
multiplesourcesaresimultaneouslyused(CD/MP3andtuner),suchasMulti-Zoneaudio
applications.
FM Antenna connection:
ConnectthesuppliedFMantennatothoseconnectorstoensureagoodFMreception.In
caseofbadreception,theconnectionofanexternaloutdoorantennaorcabledistribution
cansignificantlyimprovetheaudioreception.
