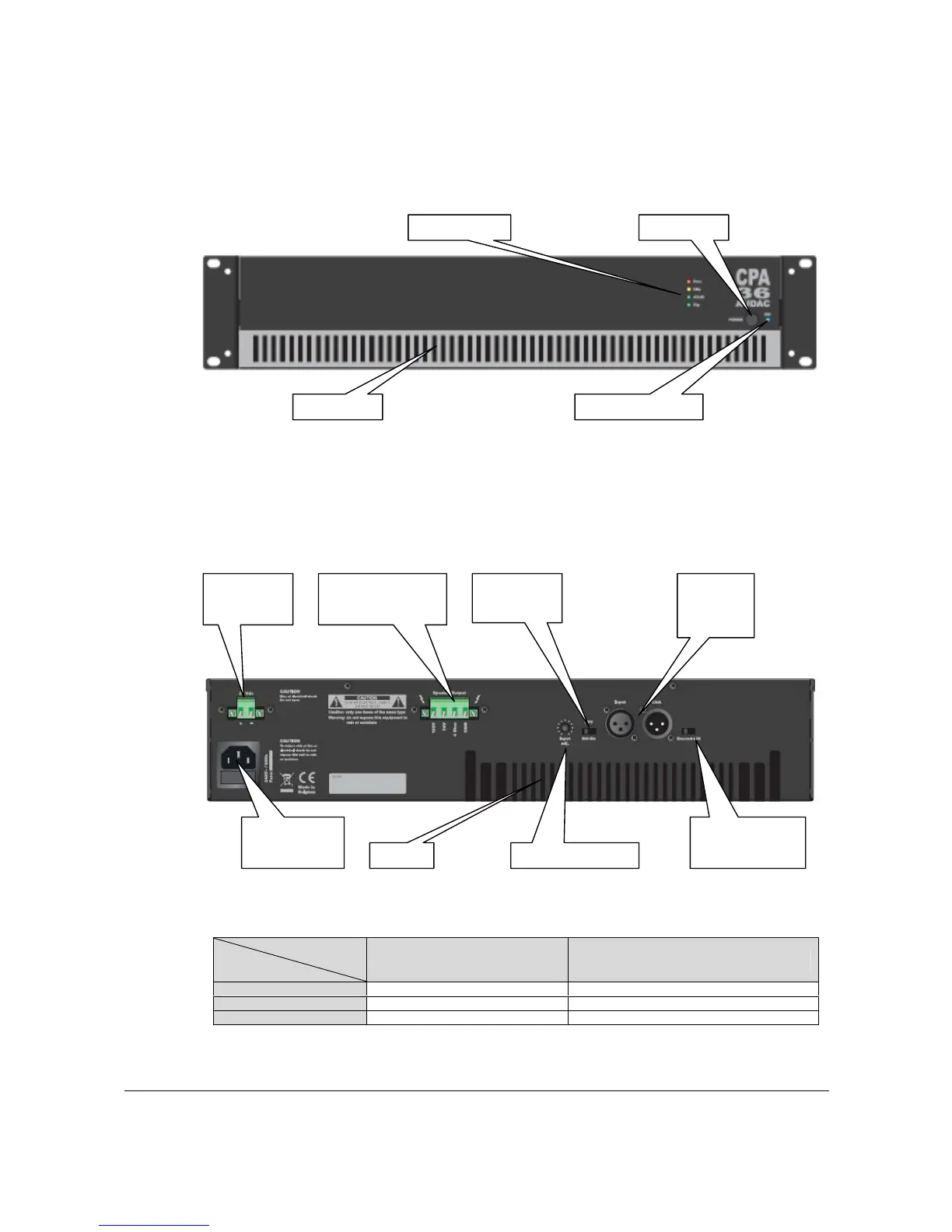

Front Panel – detail
Rear Panel – detail
Indication LEDs
Power switch
Ventilation fan
Power indication LED
DC +24V
input terminal
AC power input
connector with
fuse holder
*
Speaker connection
terminal (4Ω, 70V,
100V and COM)
Level adjustment knob
HPF (400Hz)
on/off switch
Signal input
and link
output
connectors
Ground switch
(protection against
ground loop)
Air flow
*
Voltage
Model
115/120 Vac 220/230/240 Vac
CPA12
T4AL / 250V T3.15AL / 250V
CPA24
T8AL / 250V T4AL / 250V
CPA36
T12AL / 250V T6.3AH / 250V
Idem CPA 12 & 24
Idem CPA 12 & 24
