Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
Thein-andoutputconnectionsforAUDACaudioequipmentareperformedcorresponding
tointernationalwiringstandardsforprofessionalaudioequipment.

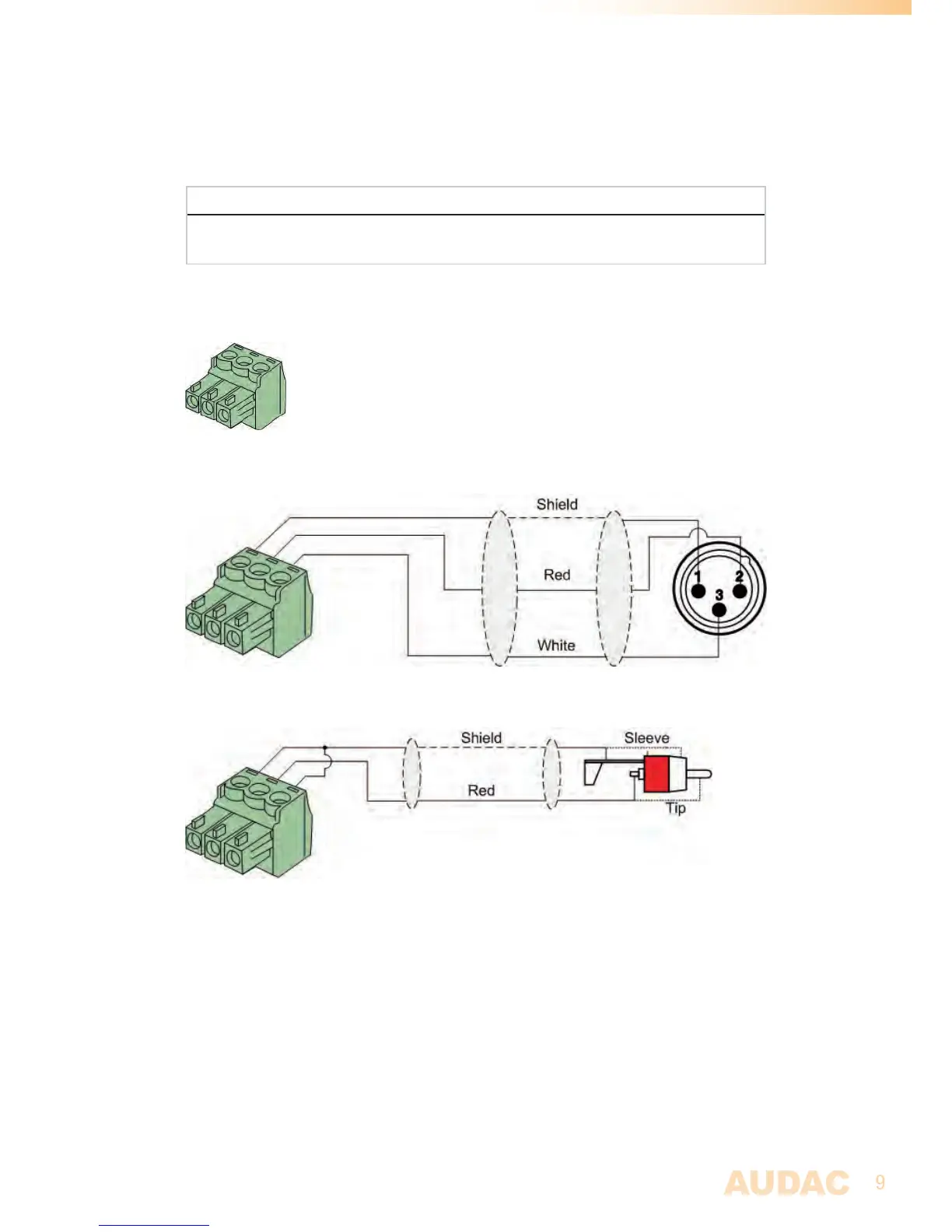

3-Pin Terminal Block:

 Left: Signal- (XLRPin3)
 Center:Signal+ (XLRPin2)
 Right:  Ground  (XLRPin1)
Forbalancedlineinputconnections:

Forunbalancedlineinputconnections:
