4) Connect the loudspeaker connection cable to the gold plated spring clamp
connectors. Press the button of the corresponding terminal down and insert
the connection cable. After releasing the button, the cable is connected to the
loudspeaker. The Red terminal indicates positive (+) pole and the Black terminal
indicates the negative (-) pole.
Mind the polarity markings when wiring the loudspeaker cables.
Maintain the same polarity and wiring colour coding throughout the entire system to
avoid any mistakes causing malfunction or distortion.

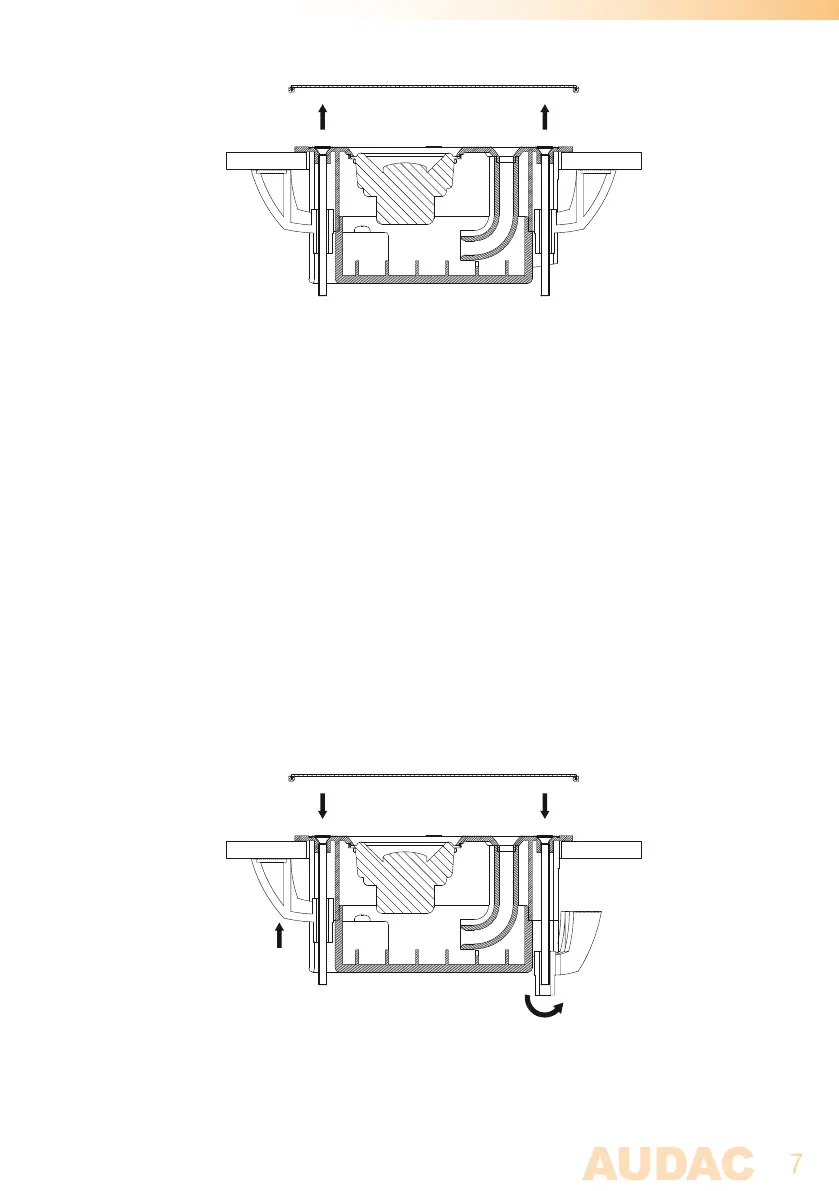

5) Once the connections are made, the loudspeaker can be installed in the provided
mounting hole. Make sure the mounting clips of the loudspeaker are rotated inwards,
making the speaker fit through the hole. Insert the speaker through the provided
mounting hole, and use a screwdriver for tightening the fixing screws.
Once the screws are tightened a quarter turn, the mounting clip will rotate outwards
and will be locked behind the surface. From then on, the loudspeaker is anchored in
the surface and thus can not fall.
6) After the screws are tightened and the speaker is level with the surface, the front
grill can be assembled to the loudspeaker.
