Connections
To avoid electric shocks during installation, always switch of the amplifier power when connecting
loudspeakers.

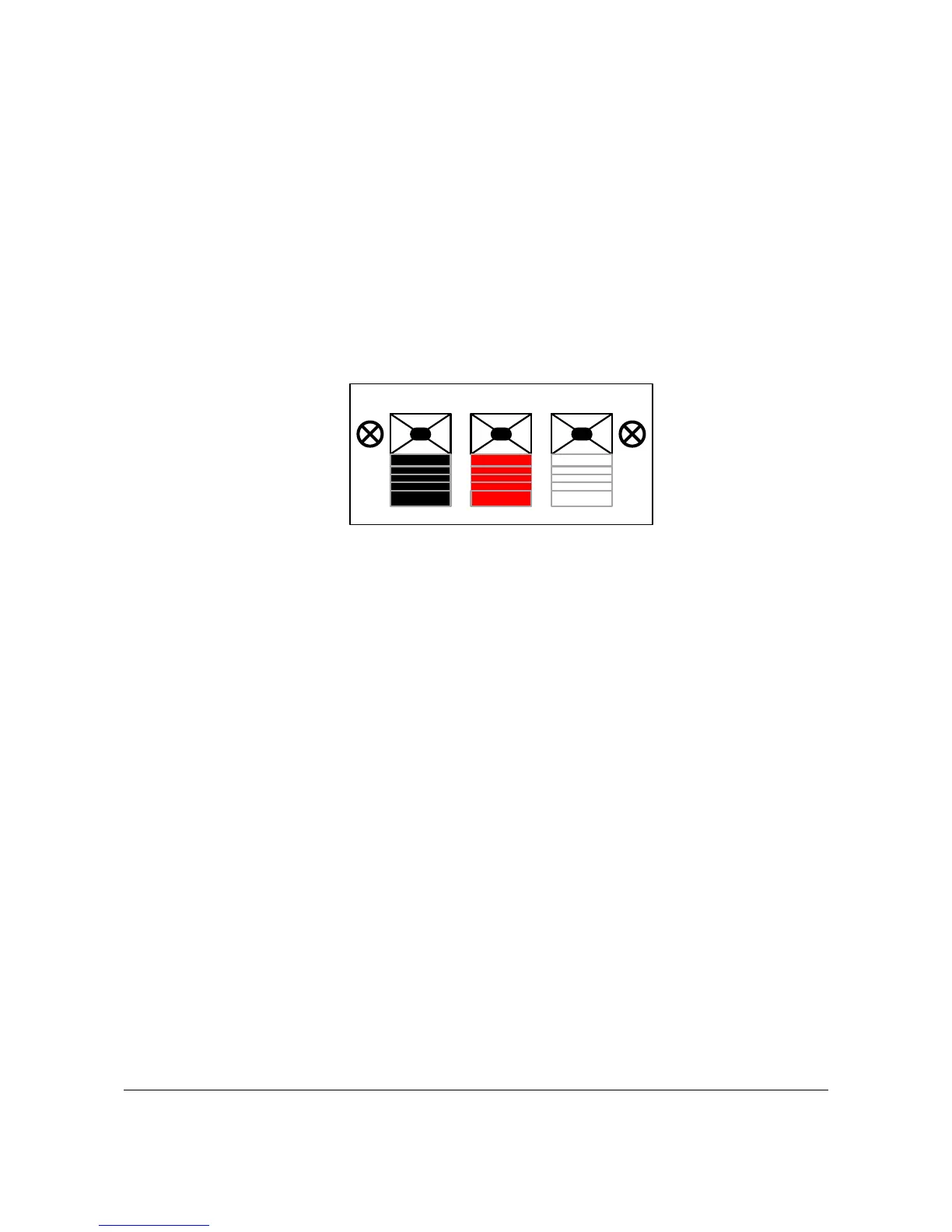

On the rear side of the loudspeaker three connection terminals are provided.
By means of selecting the appropriate connection terminals, the desired line transformer power tapping
can be set, to be used in 100V public address applications.
COM 10 Watt 5 Watt
Those connection terminals should be connected to the amplifier output. The COM connection
terminal should always be connected with the COM output terminal of the Amplifier. When the
loudspeaker should play at full power, the positive terminal of the amplifier output should be connected
to the 10 Watt terminal (Red). When only half the power is needed, the positive terminal of the
amplifier output should be connected to the 5 Watt terminal (White)
Connections for 100 Volt use:
COM Black
10 Watt / 1000 Ohm Red
5 Watt / 500 Ohm White
When the loudspeaker is connected to 70.7V facilities, the power indicated in the table above will be
reduced to half the power, and when connected to 50V facilities, the power will be reduced to a quarter.
When the desired power tap is selected and connected, the loudspeaker is ready to be used.
