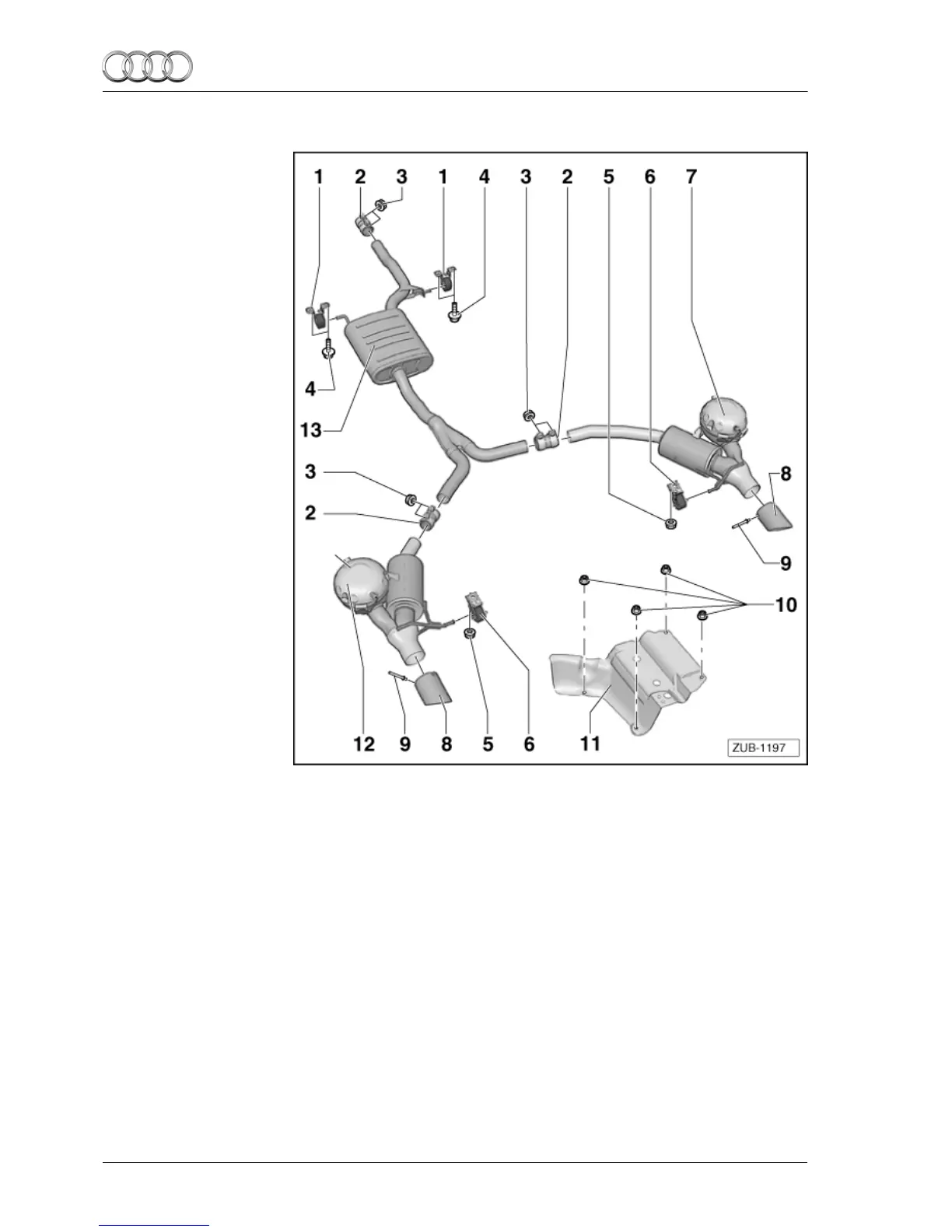

3.4 Assembly overview of the 4-cylinder TDI exhaust system
1 - Mounting
2 - Clamping sleeve
q Install so that it is
free from tension
before tightening
the exhaust system
⇒ Rep. gr. 26
3 - Nut
q
23 Nm
4 - Screw
q
replace
q
20 Nm
5 - Nut
q
replace
q
20 Nm
6 - Mounting
7 - Actuator
8 - Exhaust tip
q
2x
q
position according
to the body version
concerned
9 - Pop rivet
q
6x
10 - Nut
11 - Shield
q
select according to
the body version
concerned⇒ “Parts
overview” on page 2
q
retrofit on the right side of the vehicle
12 -
Actuator
13 -
Silencer
q
replace
Installation instructions - Audi A4/A5 (B8 series) 2008 ▶
Edition 11/2012
8
3 Sequence of operations
