Audi 2008 A4 - Assembly Overview of the 6-Cylinder TDI Exhaust System; Assembling the Exhaust System: 6-Cylinder TDI

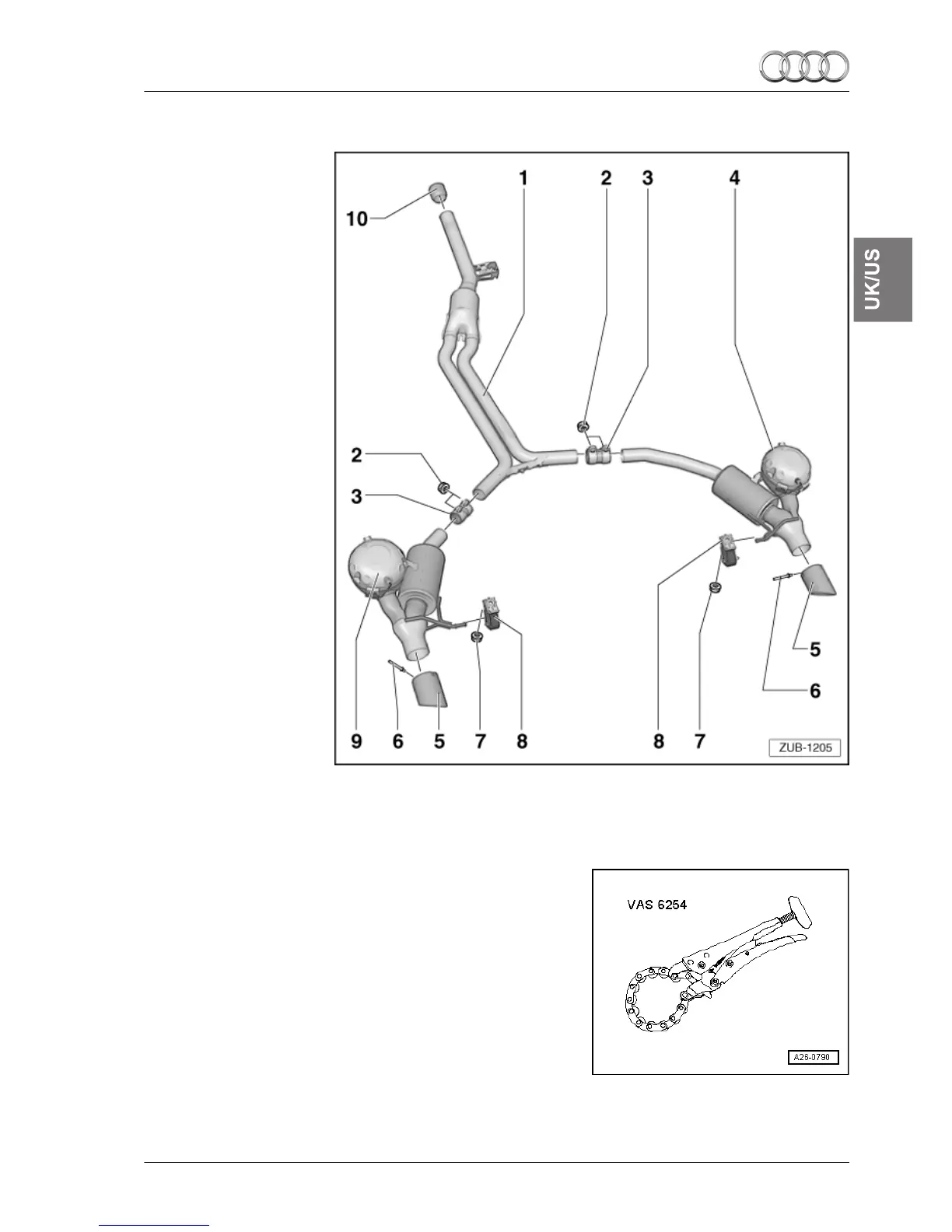

3.6 Assembly overview of the 6-cylinder TDI exhaust system
1 - Y-pipe
q remains in the vehi-
cle
2 - Nut
q 23 Nm
3 - Clamping sleeve
q Install so that it is
free from tension
before tightening
the exhaust system
⇒ Rep. gr
. 26
4 - Actuator
5 - Exhaust tip
q 2x
q position according
to the body version
concerned
6 - Pop rivet
q 6 x
7 - Nut
q replace
q 20 Nm
8 - Mounting
9 - Actuator
10 - Sound exhaust sys-
tem dual nozzle
3.7 Assembling the exhaust system: 6-cyl-
inder TDI
Special tools and workshop equipment required
◆ Chain pipe cutter -VAS 6254-
Installation instructions - Audi A4/A5 (B8 series) 2008 ▶
Edition 1
1/2012
3 Sequence of operations
13
