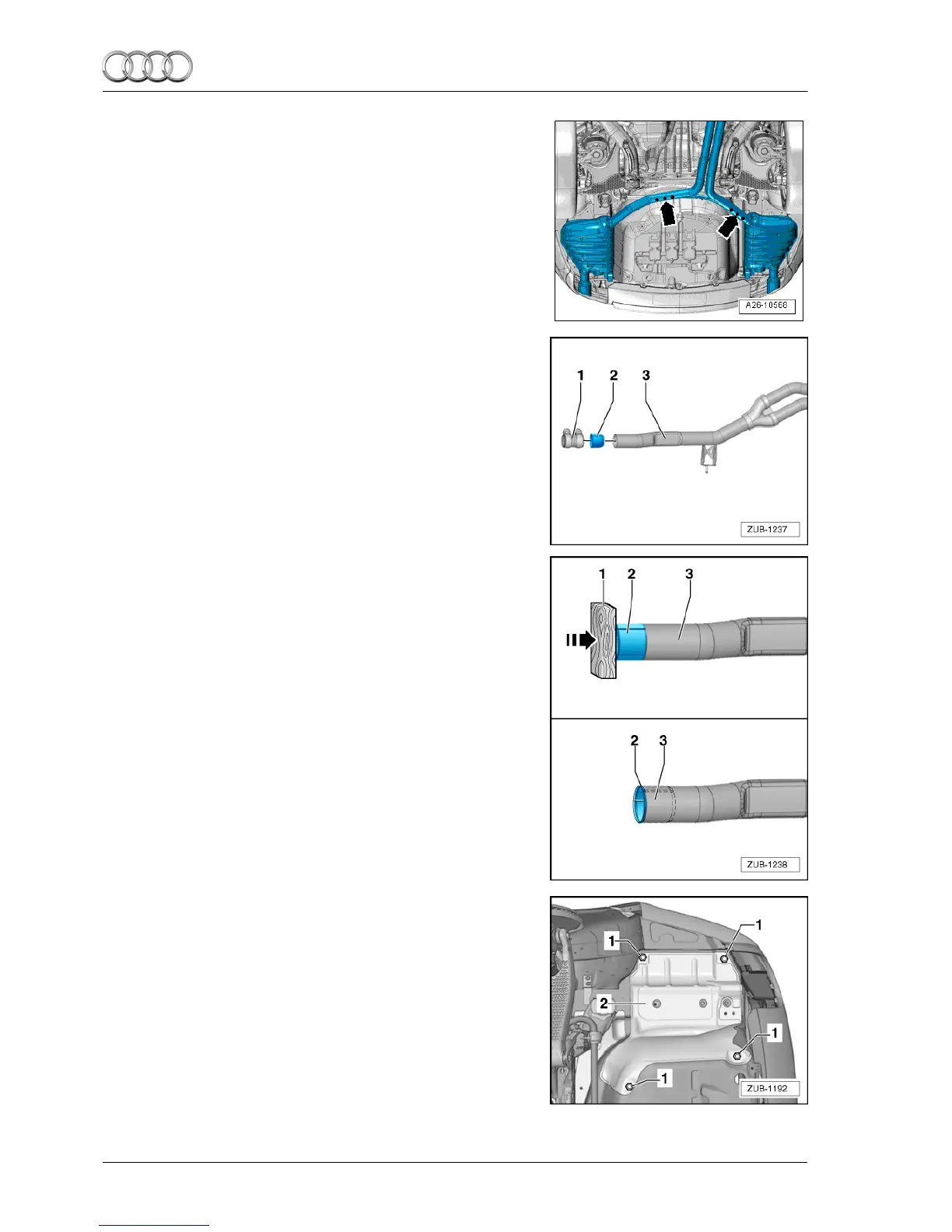

– Separate the exhaust pipe at right-angles at the cut-off
points at the middle punch point -arrows- using the chain
pipe cutter -VAS 6254-.
– Loosen the front clamping sleeve -1- and lower the Y pipe
-3-.
– Position the dual nozzle -2- on the Y pipe -3-.
– Position the plastic or wooden part -1- on the dual nozzle
-2-.
– Hammer the dual nozzle -2- into the Y pipe -3- using the
soft-head hammer. The dual nozzle is now in the installation
position.
– Install the Y pipe.
Removing shield plates -2-:
– Unscrew nuts -1- and remove the shield plates -2- from the
left and right side of the vehicle -2-.
