Audi 2008 A4 - Final Tasks

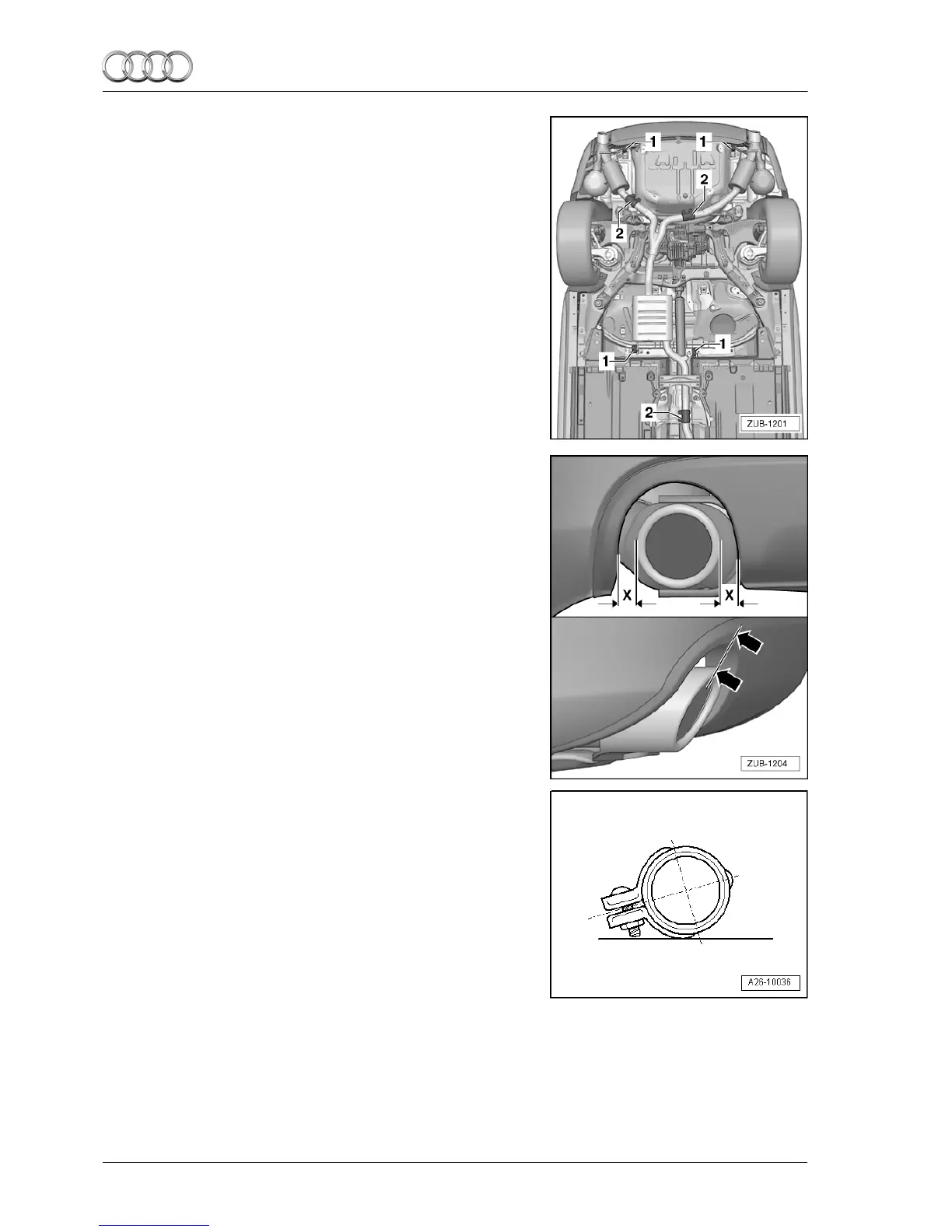

– Place the actuators in the installation position, attach the
connectors, position and tighten the mountings -1-.
– Position the clamping sleeves -2- central to the separating
cut.
● Installation position: screw fittings forward.
– Before tightening the clamping sleeves -2-, set the exhaust
system so there is no tension ⇒ Rep. gr. 26 and
⇒ Fig. “Aligning the exhaust tips” on page 16
Aligning the exhaust tips
Dimension -x- left = dimension -x- right
– Rotate the clamping sleeves so that the screw ends do not
protrude over the bottom edge of the clamping sleeve.
Tightening torques ⇒ Page 13
3.8 Final tasks
– Connect the battery -A- ⇒ Rep. gr. 27.
– Carry out a functional check.
Installation instructions - Audi A4/A5 (B8 series) 2008 ▶
Edition 11/2012
16
3 Sequence of operations
