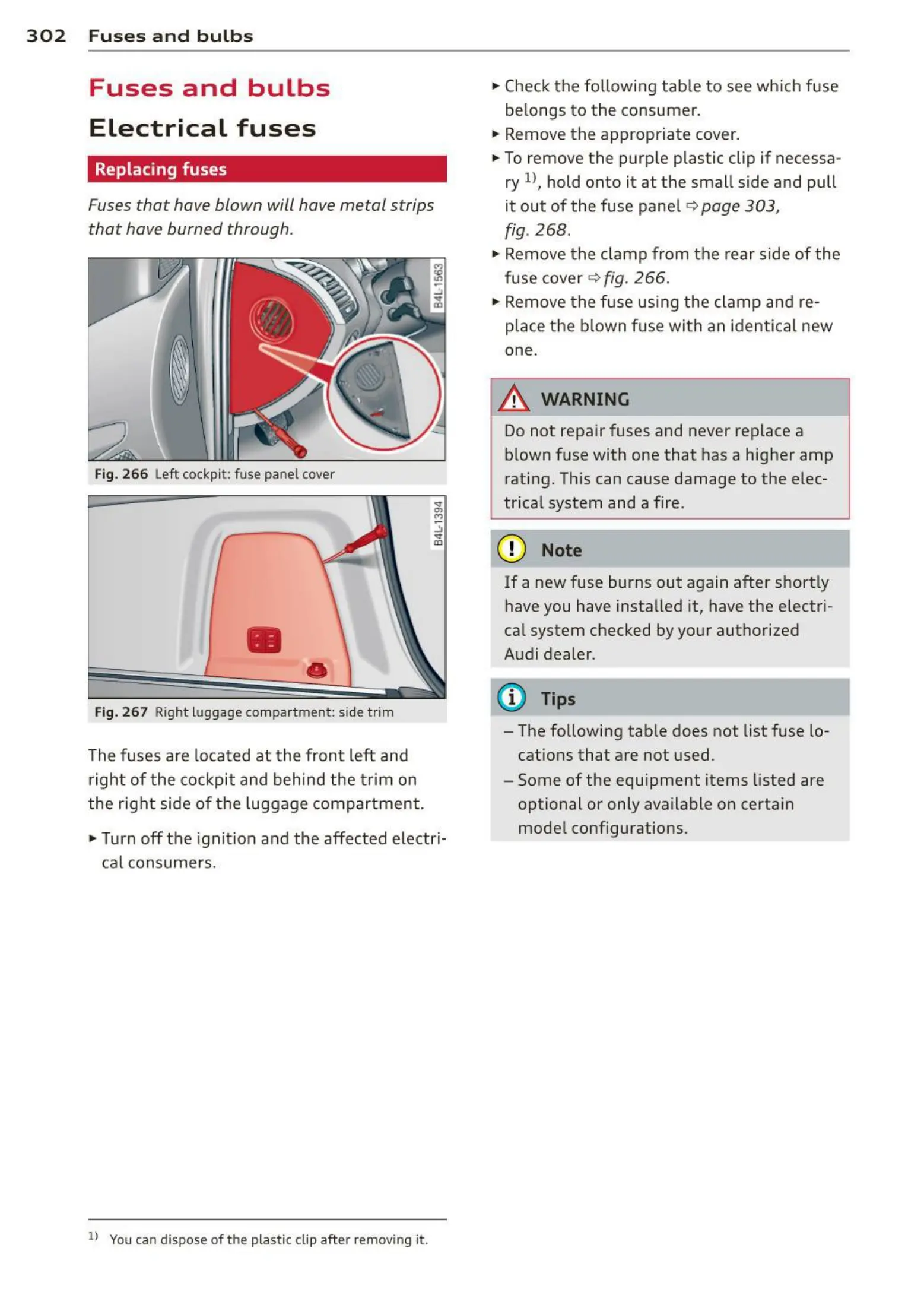

302 Fuses a nd bulbs
Fuses and bulbs
Electrical fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 266 Left cockpit: fuse panel cover
•
•
Fig. 267 Right luggage compartment: s ide t rim
The fuses are located at the fron t left and
right of the cockpit and behi nd the tr im on
the right side of the luggage compartmen t .
.,. Turn off the ignit ion and the affected electri-
cal consumers.
ll You ca n dispose of the plastic clip afte r removing it.
.. Check the following tab le to see wh ich fuse
be longs to the consumer.
.. Remove t he appropriate cover .
.. To remove the purp le plastic clip if necessa-
ry
1) , hold onto it at the small side and pull
it out of the fuse pane l c:> page 303,
fig.
268 .
• Remove the clamp from the rear side of the
fuse cover c:> fig. 266.
• Remove th e fuse us ing the clamp and re-
place t he blown fuse with an iden t ical new
one.
A WARNING
-
-
Do not repair fuses and never replace a
blown fuse with one that has a hig her amp
rat ing. This can cause damage to the elec-
tr ical system and a fire .
(D Note
If a new fuse burns out again after shortly
have you have installed it, have the e lectri-
ca l system checked by yo ur authorized
Audi dealer .
{!) Tips
- The following table does not list fuse lo-
cat ions that are not used.
- Some of the equipment items listed are
optional or only available on certa in
mode l configurations .
