Audient ASP8024 Dual Layer Control User Manual

13
ASP8024-DLC Audio Functionality

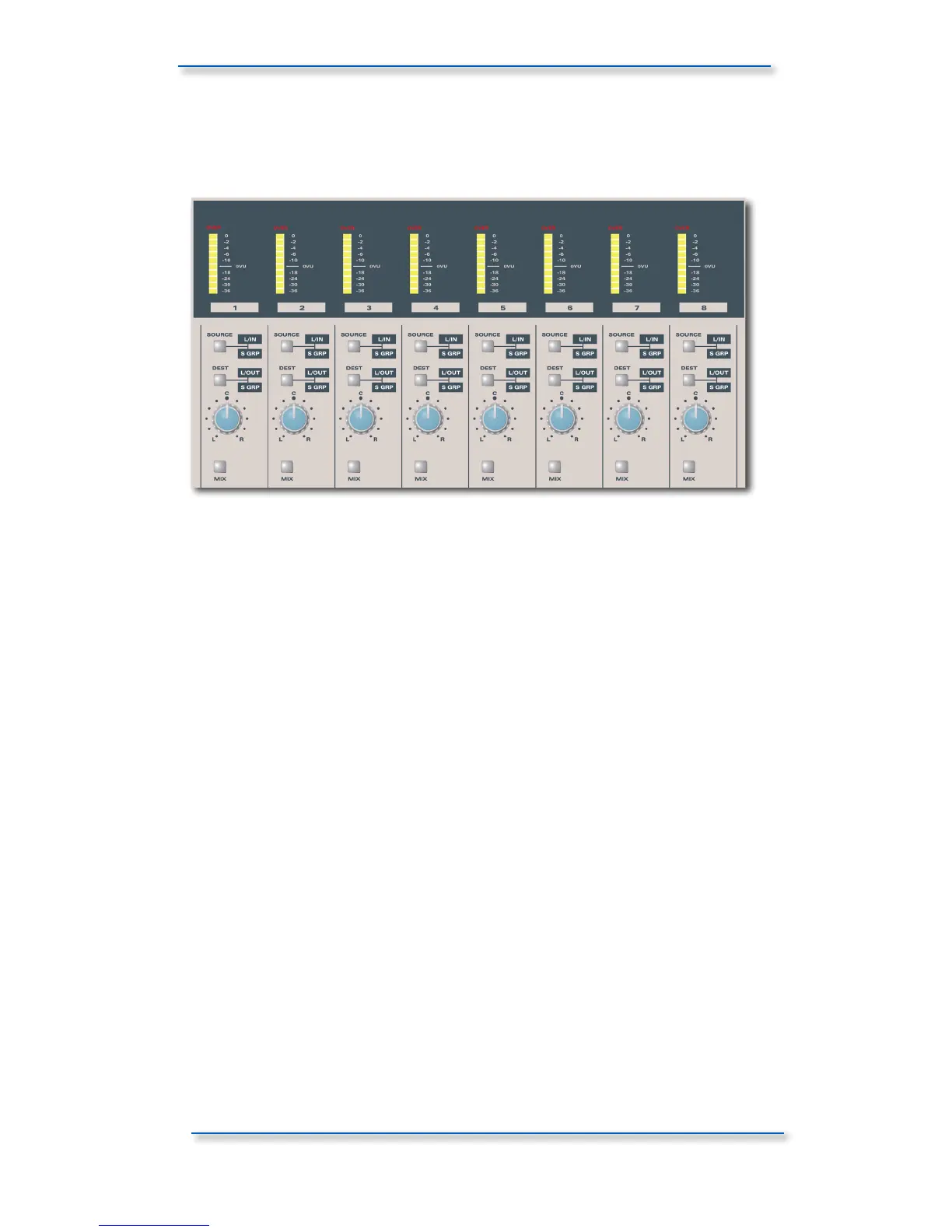

Here is a rundown of the functions of the eight analogue DLC channels.
SOURCE Button
The eight DLC channels can be sourced from the line-in connections on the rear of
the console or be fed from the sub groups on the ASP8024 itself.
The line-in connections are selected by default when the button is in the UP
position. Depressing the SOURCE switch will input the sub group audio equivalent
to that channel number. These buttons are individually switchable to allow the
greatest flexibility within the DLC panel.
DESTination Button
The eight DLC channels can be assigned to the line-out connections on the rear of
the console or to the sub group.
The line-out connections are selected by default when the button is in the UP
position. Depressing the DESTination switch will assign audio to the equivalent sub
group of that channel. Again, these buttons are individually switchable to allow the
greatest flexibility within the DLC panel.
Pan Control
Pans the audio to the mix.
MIX Button
Press this switch to assign the output of the DLC channel to the Mix bus. You can
therefore route the line-in sources directly to mix, effectively adding a further eight
channels of inputs to your console.

Audient ASP8024 Dual Layer Control Specifications

General

Aux Sends	6
DAW Control	Yes
Mic Preamps	24
Line Inputs	24
Phantom Power	Yes
Direct Outputs	Yes
Headphone Outputs	2
Faders	24
Bus	8
Type	Analog console
Monitor Outputs	2
EQ	4-band splitable EQ
