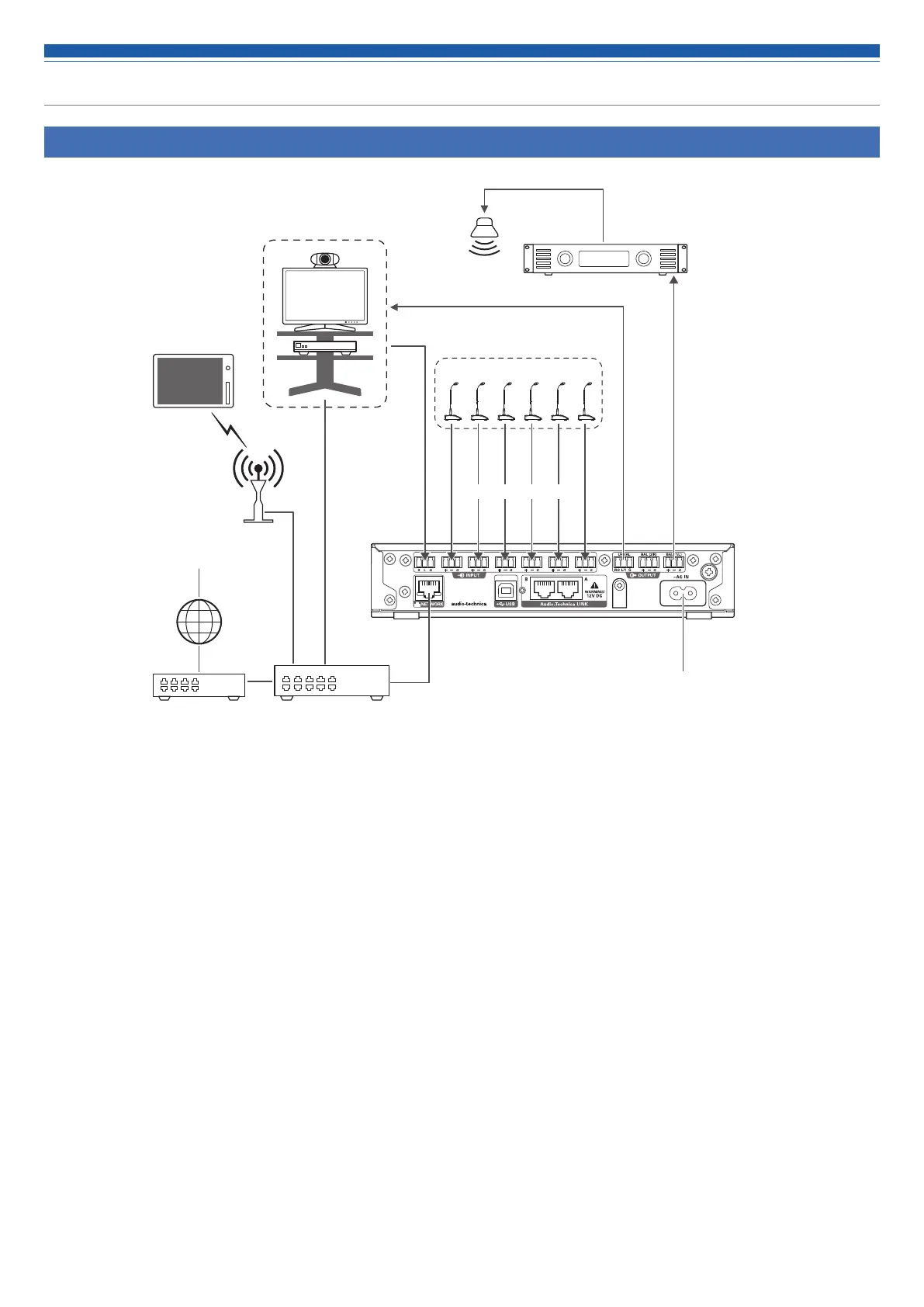

System connection examples

Remote discussion - video conference (Preset #4)

Video conference

system

Web Remote

for operator

Near-end source

Unbalanced audio cable

Balanced audio cable

Unbalanced audio cable

Balanced audio cable

Ceiling speaker

Power amplifier

AC power

AC power cableEthernet cable

Switching hubRouter

Tablet / Smartphone

Mic

Far-end source

Internet

Table of Contents2
Introduction4
Checking the Package Contents4
Trademarks4
Safety Precautions5
Important Information5
For Customers in the Usa/Canada5
Important Safety Instructions5
FCC Notice6
For Customers in Canada6
Notes on Use7
About the Product7
Maintenance7
Features8
Features of ATDM-06048
About Audio-Technica LINK8
System Installation8
Installing on a Rack8
Unbalanced Connection10
Power Cable Connection10
How to Connect a Euroblock Connector10
System Connection Examples11
Local Discussion (Preset #2)11
Remote Discussion - Web Conference (Preset #3)11
Remote Discussion - Video Conference (Preset #4)12
Part Names and Function13
Front Panel13
Rear Panel14
Using the Product15
Starting the Product15
Front Panel Mode15
Changing the Front Panel Mode (Operator Mode/Advanced Mode)15
Selecting a Function15
Operations that Can be Performed in Operator Mode/Advanced Mode16
Operations Available Only in Advanced Mode16
Changing the IP Config Mode (Auto/Static)17
Locking the Front Panel18
Checking the Firmware Version18
Web Remote19
What Is Web Remote19
What Is "Locate19
Recommended Environment19
Preparing Web Remote19
Overview of Web Remote20
Launch/Log into Web Remote21
Launching Web Remote21
Login Screen21
Logging into Web Remote21
Logging out of Web Remote21
Operator Screen22
Administrator Screen23
Header23
Indicators24
How to View Audio Input and Output Screens25
Setting the Audio Input Details26
Changing the Input Type (MIC/LINE)26
Adjusting the Gain26
Turning the Phantom Power ON/OFF26
Turning the Phase ON/OFF26
Turning the Low-Cut ON/OFF26
Turning the 4-Band EQ ON/OFF26
Adjusting the 4-Band EQ27
Turning the AEC ON/OFF28
Checking Smartmixer Status28
Turning the Bus Assignment ON/OFF28
Setting Channel Names and Colors29
Turning the Mute ON/OFF29
Adjusting the Input Level29
Setting the Audio Output Details30
Setting the Unity Level30
Turning the FBS ON/OFF30
Turning the EQ ON/OFF30
Adjusting the FBS/EQ30
Turning the Dynamics Function ON/OFF33
Adjusting the Dynamics33
Turning the Delay Function ON/OFF35
Setting the Delay Time for Delay Function35
Setting Channel Names and Colors35
Adjusting the Output Level36
Setting the USB Output36
Setting the System Details (Settings & Maintenance)37
Basic Operations37
Settings & Maintenance Screen37
General in System Settings38
Network in System Settings39
User Access in System Settings40
Audio in System Settings41
Front Panel in System Settings42
Utilities in System Settings43
Operator Page in Operator Access44
Presets in Presets45
Band EQ Library in Presets46
Band EQ Library in Presets47
Logging in Logging48
System Info in System Info49
Key Functions50
AEC (Acoustic Echo Canceler)50
Smartmixer53
Audio-Technica LINK56
Front Panel Operation Restriction59
Recalling Preset60
About Preset61
Copying Settings64
Resetting Settings65
Linking Channels66
Using the ES954 (Hanging Microphone Array)67
Ducking Function71
Menu Item72
Audio Settings72
Settings & Maintenance76
Troubleshooting78
ATDM-0604 Unit78
Web Remote79
Error Messages80
Dimensions81
Specifications82
General Specifications82
Audio82
Input/Output Specifications83
System Diagram84
