Audio Technica ATR2100x-USB User Manual

9
If you are using an older version of Windows, your computer will automatically recognize the USB device
and install the appropriate driver.
The first time you plug the microphone in, you may see a message that new hardware has been found, or you may
see a driver software installed notice. After the first time, you will not see any of these as the computer has already
installed the necessary drivers for a USB microphone.
When the ATR2100x-USB microphone is connected, Windows 10 will automatically select it as the input
and output device.

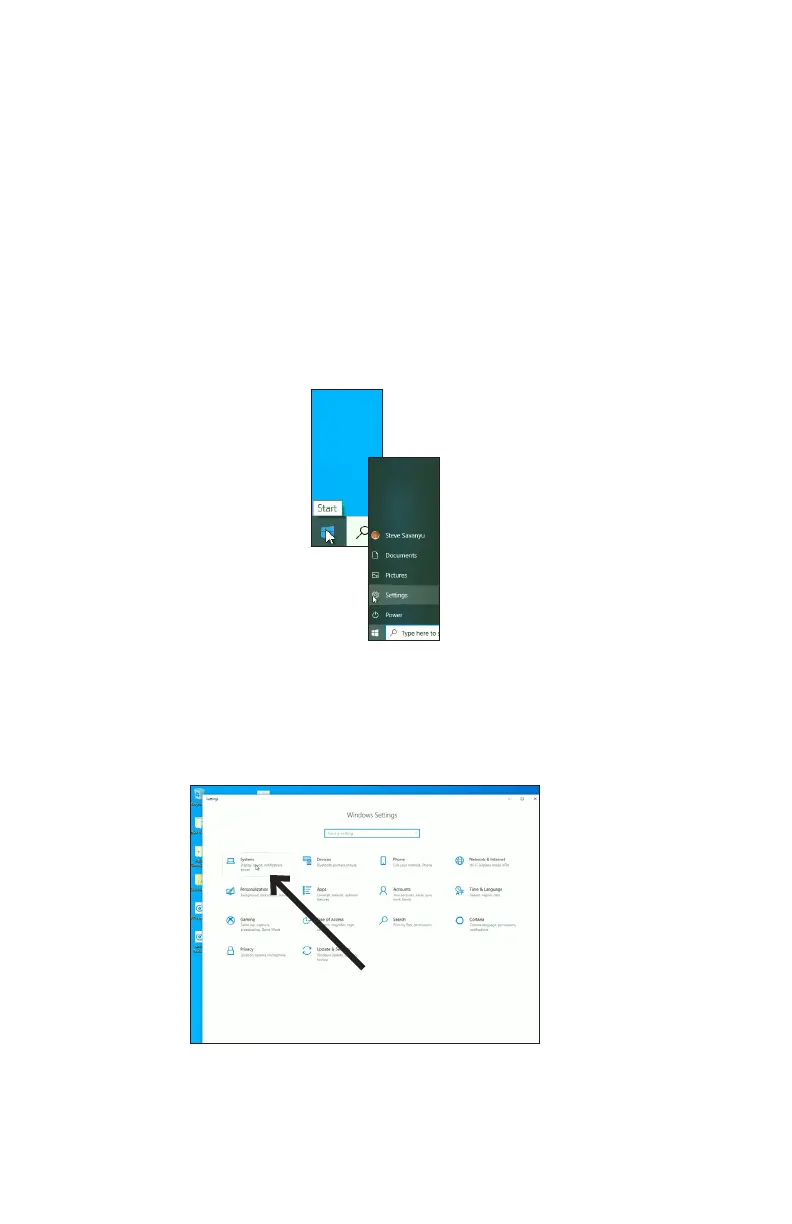

1. To verify or make changes click the Start window and click settings (the gear).
2. When the settings window opens, Click “System.”
Preliminary setup with Windows 10

Audio Technica ATR2100x-USB Specifications

General

Type	PC microphone
Bit rate	24 bit
Sample rate	192 kHz
Volume control	Rotary
Microphone frequency	50 - 15000 Hz
Device interface	USB/3.5 mm
Connectivity technology	Wired
On/off switch	Yes
Product color	Black
Compatible operating systems	Windows, Mac
Power source	USB
Operating voltage	5 V
Cables included	USB Type-C to USB Type-A, USB Type-C to USB Type-C
Number of products included	1 pc(s)

Weight and Dimensions

Height	183 mm
Diameter	51 mm
Microphone weight	268 g
