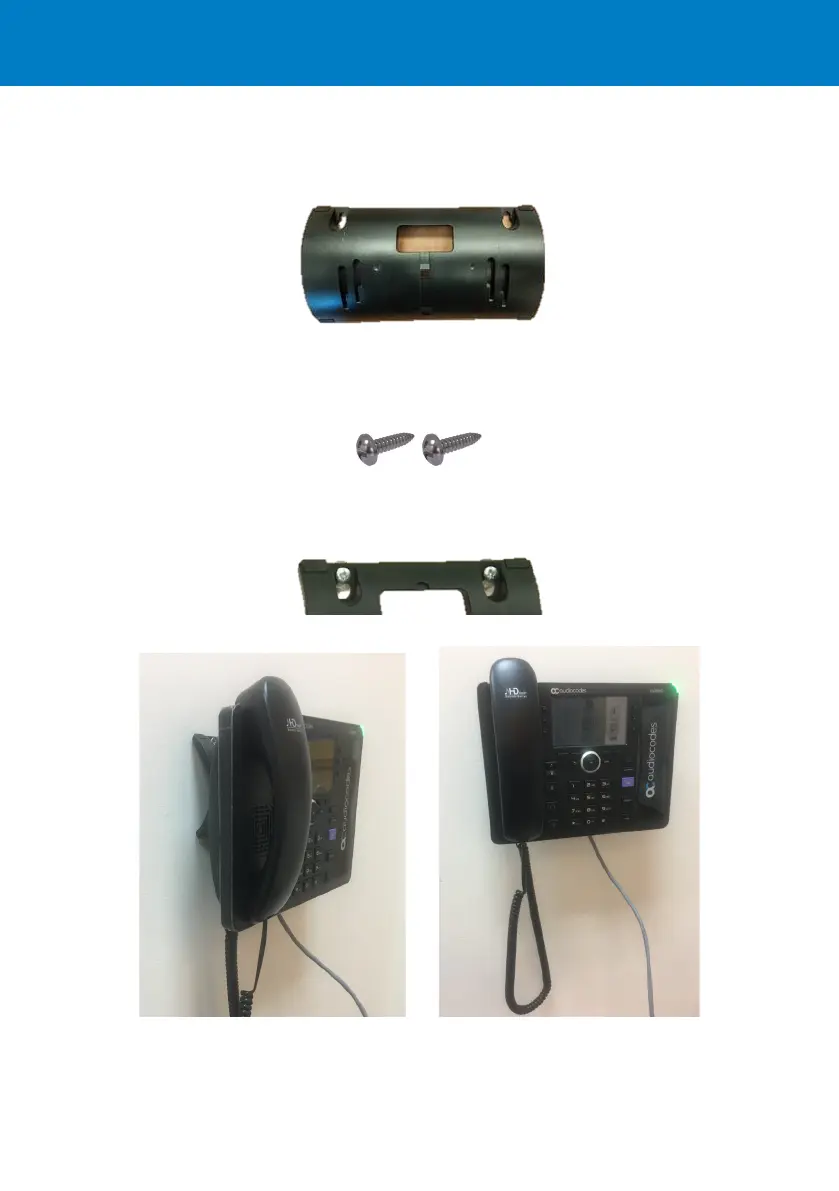

To mount the phone on a wall:
1. Using the mounting plate's two screw holes as a template, mark the locations on the wall where
you want to mount the phone. The horizontal distance between the screw holes is 5.39 inches
(137 mm).
2. Drill a hole in the wall at the two marked locations.
3. Insert an anchor (not supplied) in each hole for the 3.9mm screws.
4. Insert two screws (not supplied) into the two masonary anchors. It's recommended to use tapp
3.9 x 32mm (DIN 7981 C) self-tapping pan Phillips-head screws.
5. Leave about 3/16 inch or 5 mm between the screw head and the wall.
6. On the rear of the phone, detach the base used for desktop mounting.
7. Hang the plate on the screws.
8. Attach the phone to the plate.
