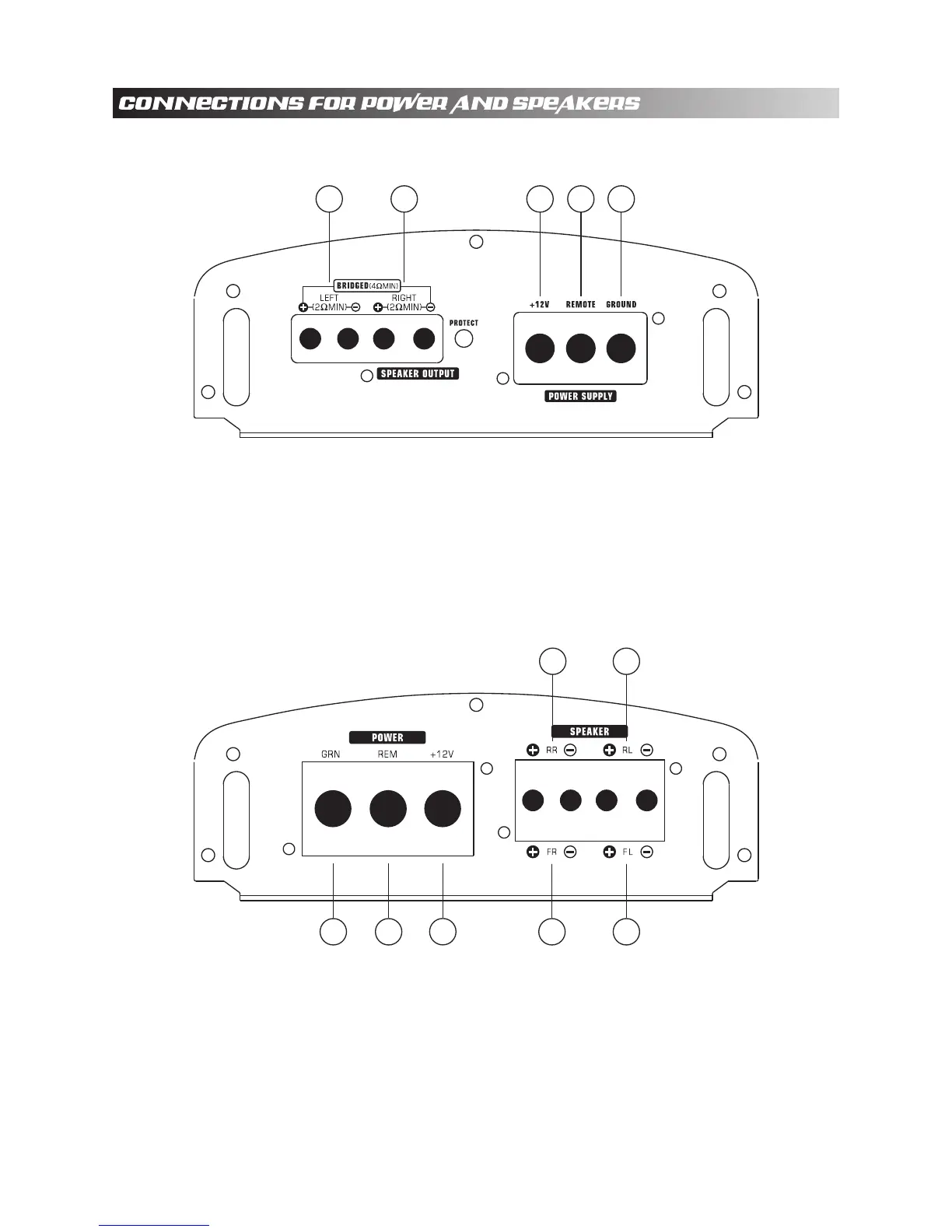

The rear panel of the APCL-6002 contains power and speaker connections as shown
below.
1. Left Speaker Output
2. Right Speaker Output
3. Battery +12V Input
1
2 53 4
4. Remote Turn-On Input
5. Ground Input
1 2
3 45 6
7
The rear panel of the APCL-6004 contains power and speaker connections as shown
below.
1. RR Speaker Output
2. RL Speaker Output
3. FR Speaker Output
4. FL Speaker Output
5. Ground Input
6. Remote Turn-On Input
7. Battery +12V Input
