Audiopipe APMR-2002 - System Configurations; 2-Channel Full-Range, Satellite, or Subwoofer Stereo System

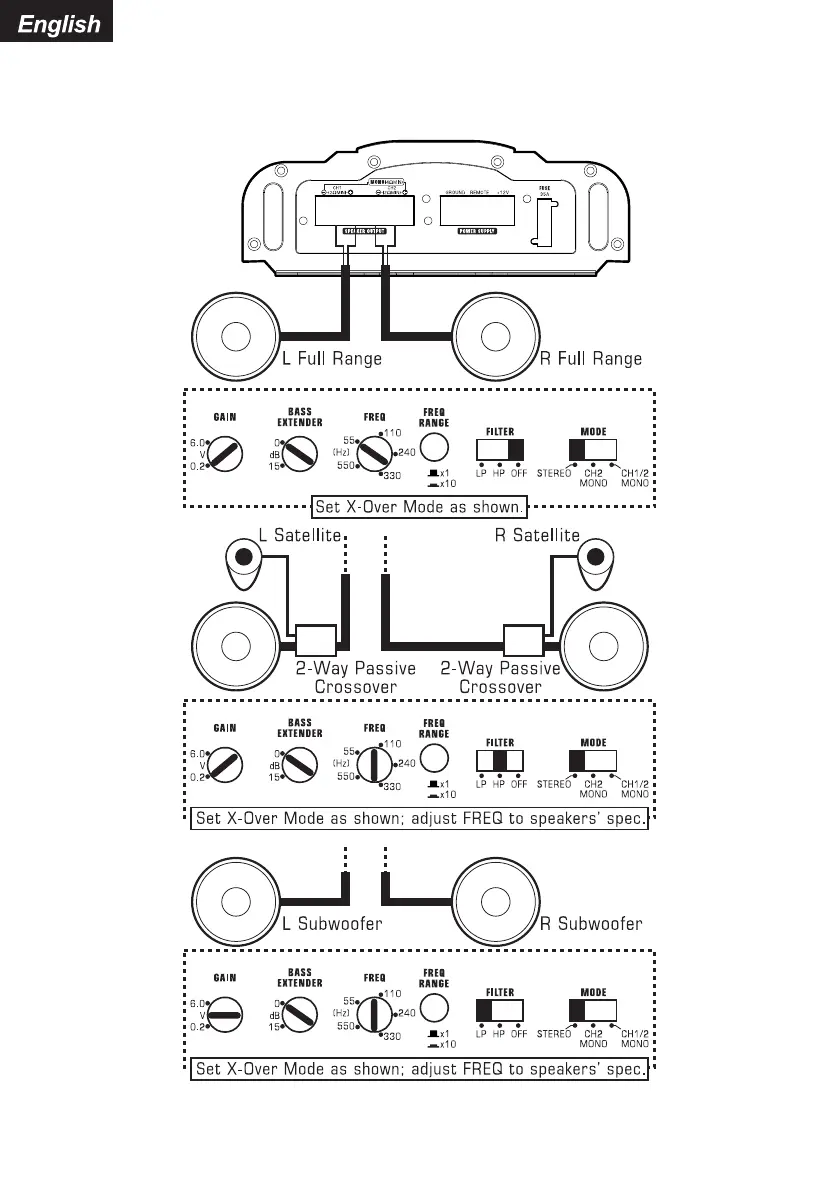

Figure 5
In this application, the marine amplifier is used in stereo and drives two full-range (or satellite
or subwoofer) speakers. NOTE: A passive crossover must be used with satellite speakers.
2-Channel Full-Range, Satellite, or Subwoofer Stereo System
(Set INPUT SELECT Switch to STEREO)
- 6 -
English
