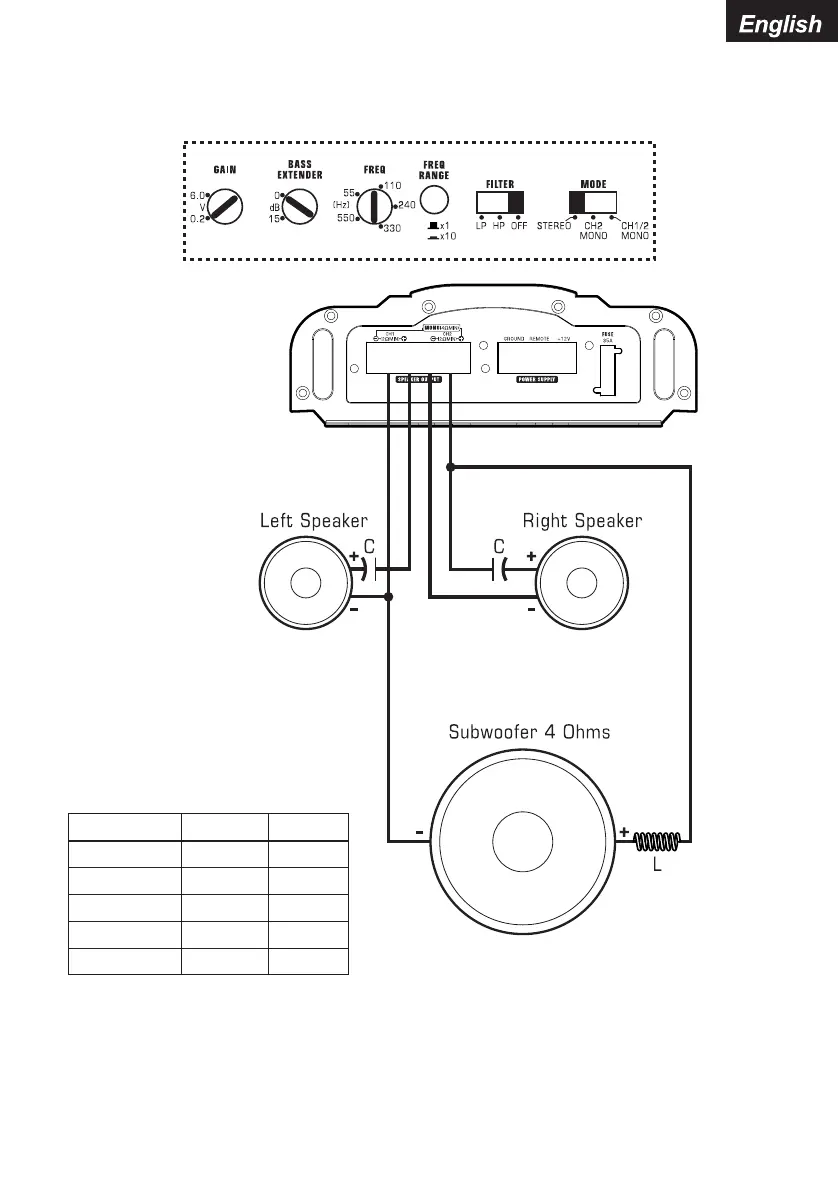

Mixed-Mode Satellite and Subwoofer System
(Set INPUT SELECT Switch to STEREO)
- 7 -
English
Figure 6
The marine amplifier can be configured for a mixed-mode operation. The table provides
component values to create a 6dB per octave crossover at specified frequencies. Use
components that have a +5% tolerance and capacitors rated at 100V.
NOTE: Choose the same frequency for both LP and HP crossovers. Do not overlap
frequencies, as this may damage the marine amplifier.
NOTE: Chart values based on 4 Ohm speakers.
C (uF)
497
398
318
265
199
FREQ (Hz)
80
100
125
150
200
L (mH)
8.0
6.4
5.1
4.2
3.2
To Next Page
