Audiovox D7121ESK User Manual

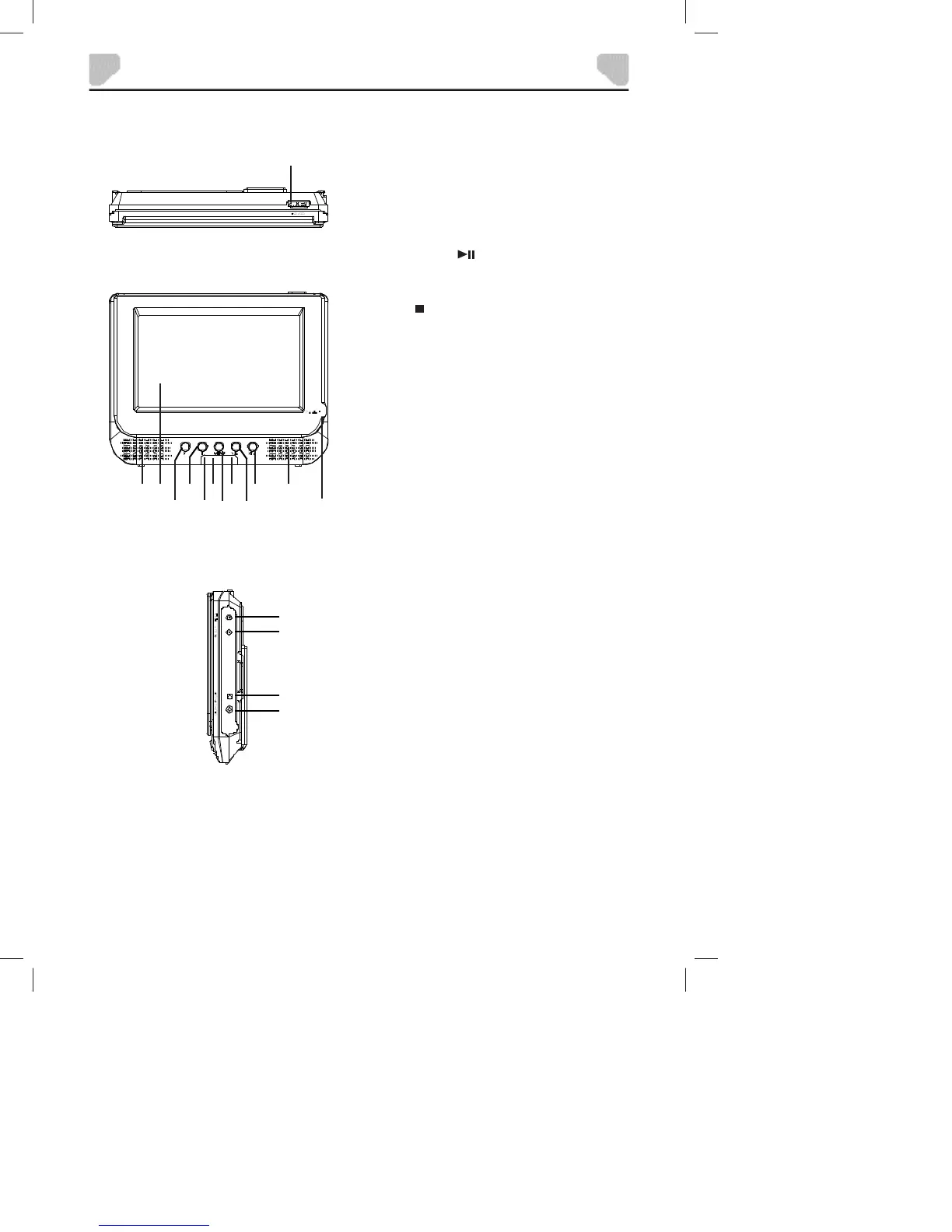

CONTROLS AND INDICATORS
1. ON/OFF SWITCH
Slide the switch to ON position to turn on the
unit. Slide the switch to OFF position to switch
off the unit.
2. SPEAKER OUTPUT
3. DISPLAY SCREEN
4. PLAY/PAUSE (
) BUTTON
Press once to pause playback, then press
again to continue playback.
5. STOP ( )BUTTON
6. INFRARED REMOTE SENSOR
7. RED LED CHARGE INDICATOR
Flashes when the battery is charging.
Steadily lit when the battery is charged.
8. MENU BUTTON
Press to return to the root menu when playing
a DVD.
9. GREEN LED ON/OFF INDICATOR
Steadily lit when the unit is on.
10. VOL- BUTTON
Press to decrease the volume.
11. VOL+ BUTTON
Press to increase the volume.
12. PULL TAB
Pull up to open the disc tray cover.
13. DC IN 9-12V JACK
14. DC OUT JACK
Connect the power cord to the DC OUT jack
on the main unit and to the DC IN jack on the
external unit.
15. AV OUT JACK
Connect the AV Cable to the AV OUT jack
on the main unit and to the AV IN jack on the
external unit.
16. 3.5mm HEADPHONE JACK
Note: When headphones are connected, no
sound will be emitted from the speakers.
Main Unit
9
1
3
4
5
2
2
6
7
8
9
10
11
12
13
15
14
16
