STEERING WHEEL CONTROLS (SWC)
(if equipped)
The VXE 7020 NAV is compatible with following steering wheel control adapters: Dietz UNICO
DUAL PLUS + cable, PAC (Pacic Accessory Corporation) SWI-PS and Metra ASWC. A 3.5 mm
female connector (labeled “SWC Interface”) on the back of the head unit allows connectivity to
the adapters. Please refer to the instructions included with the adapters for detailed installation
information.
Note: Not all OE steering wheel functions may be supported by the VXE 7020 NAV.
The following controls are available for most vehicles:
1. Volume Up (+) 4. Seek Up (Next) 7. Preset (+) 10. BT Send
2. Volume Down (-) 5. Seek Down (Prev) 8. Preset (-) 11. BT End
3. Mute 6. Source 9. Band 12. Undened
To access the SWC Controls for programing, touch the SWC icon on the second page of the Main
Source Menu.

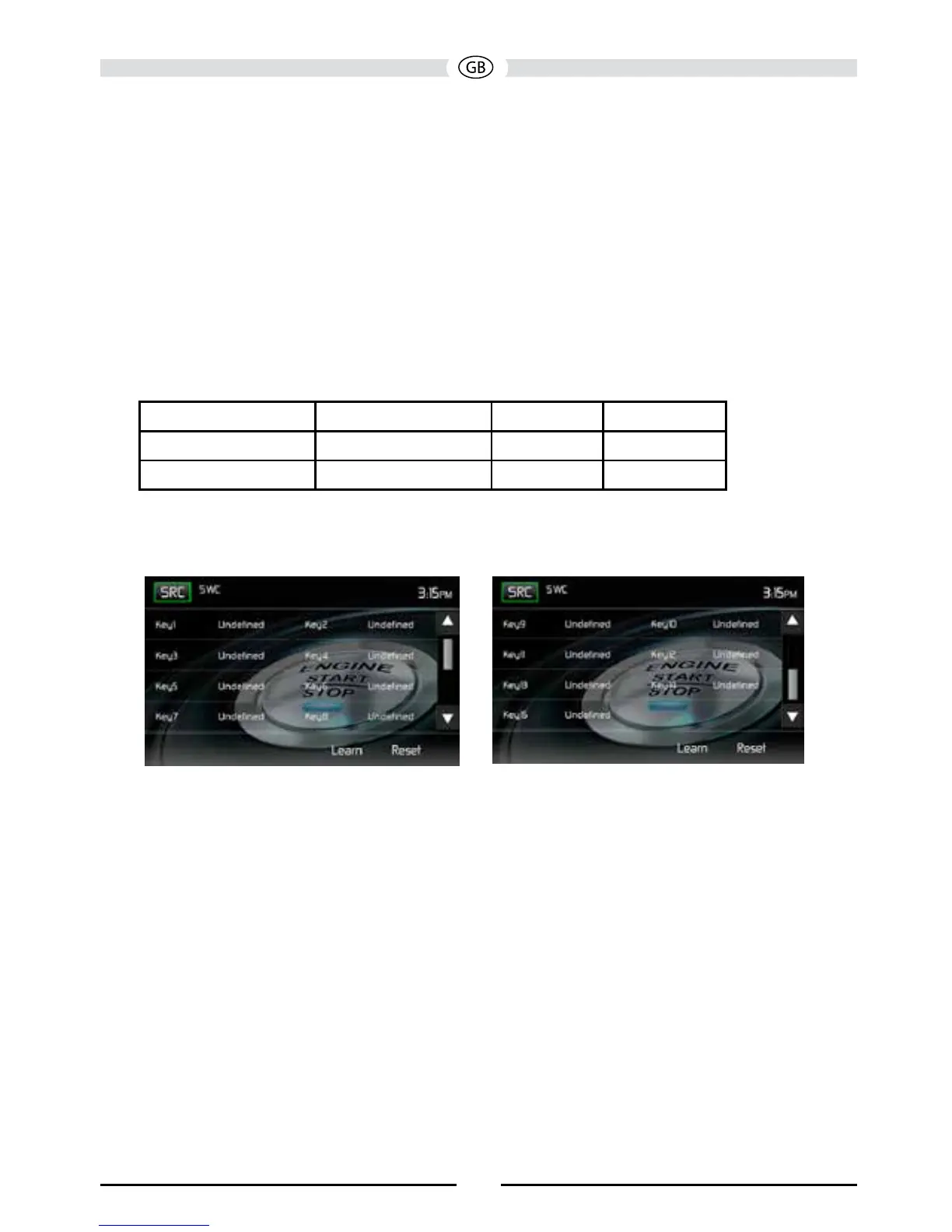

SWC Programing Screen 1 SWC Programing Screen 2
SWC Programming Screens
SWC Programing
Up to 15 steering wheel control functions can be programmed via the built-in SWC interface. Not
all functions may be supported for each vehicle.
1. Popular OE steering wheel functions are already pre-programmed from the factory. If your
vehicle does not support the exact same functions already pre-programmed, you will need to
clear / reset the SWC interface and program in the exact functions of your vehicle. To clear /
reset the SWC interface, press and hold “Reset” for 2 seconds.
2. To begin programming the SWC interface after it has been cleared / reset, press a key 1 ~ 15,
then press a function. The name of the selected function should appear next to the Key number
programmed (Key 1 Volume +, etc.). Continue programming in this manner until all of the OE
steering wheel control functions are completed.
Note: Functions 1 ~ 15 must be assigned to a function on the OE steering wheel. For
example, if the OE steering wheel does not support Preset + and Preset -, then
these functions must be cleared / reset in order for the other functions to work
correctly.
126
