CONTROLS AND INDICATORS
VXE 7020 NAV
AV INPUT
EJECT
MENU
MUTE
OPEN
11
10
9
7
8
6
5
4
32
1
Navigation

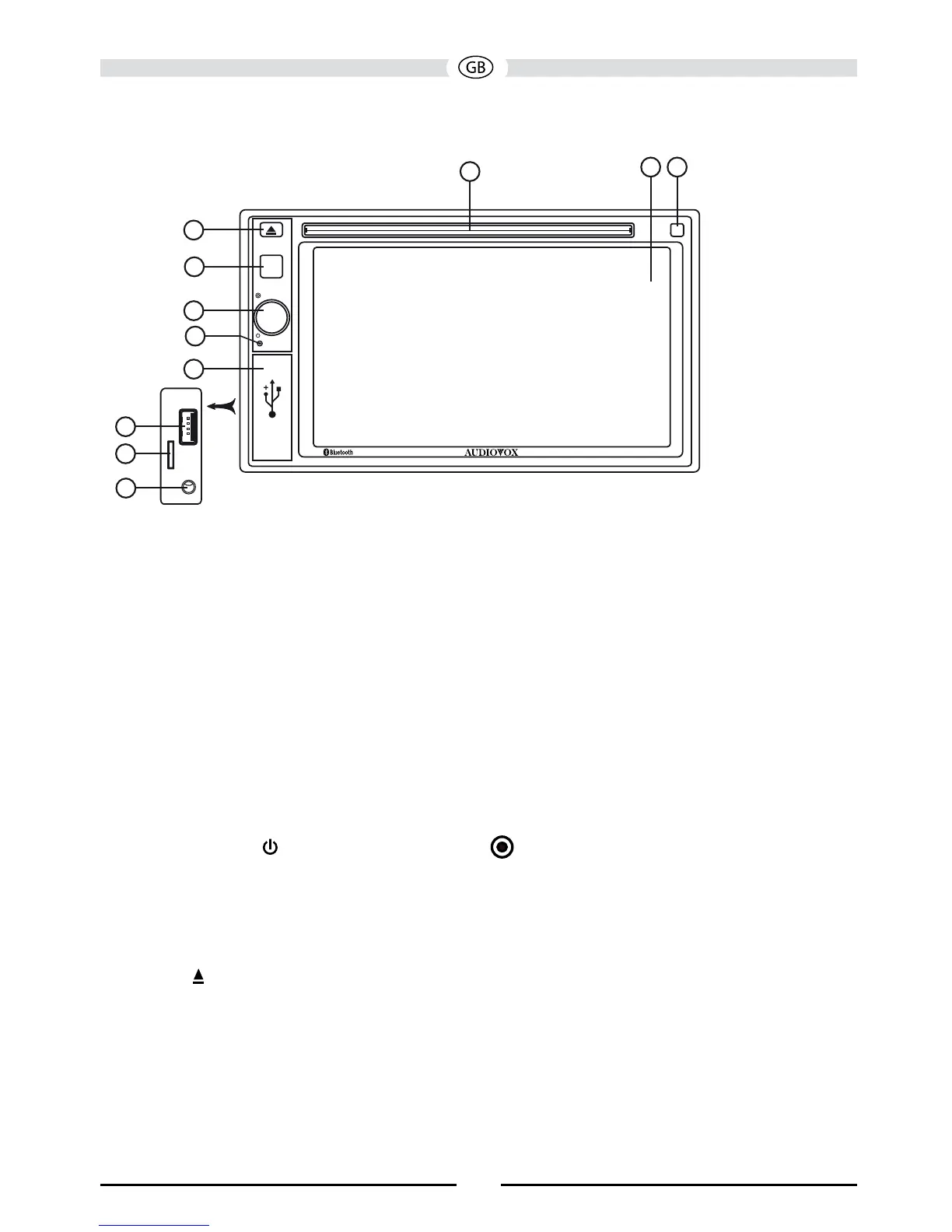

VXE 7020 NAV Controls and Indicators
1. Disc Slot: Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a disc is
inserted.
2. LCD Screen and Touch Screen: Touch icons on this screen to access menus or control
functions.
3. Remote Sensor: Used to receive command signals from the remote control.
4. 3.5mm AV IN Jack: This connector accepts a 3.5 mm jack through which signals from various
audio/video devices can be applied to the unit.
5. MicroSD Card Slot: Used to insert microSD cards containing navigation software updates.
6. USB Slot: Used to connect an iPod®, MP3 player or ash drive connection adapter for
playback of music/video les.
7. Interface Cover: Covers the AV IN jack, microSD card slot, and USB slot.
8. Reset Button: Press this button to reset the system settings (except password settings) and to
correct a system halt or other illegal operation. Use the tip of a pen to press the Reset button.
9. Power On/Off (
) Button / Rotary Volume ( ) Knob / Mute Button:
Press to turn the unit ON. Press and hold to turn the unit off.
Rotate the knob to adjust the volume from 0 to 50.
Press the knob momentarily to mute the audio. Press the knob again to restore the audio.
10. Menu Button: Press this button to access the Main touch screen menu. Press and hold the
menu button for about 2 seconds to toggle between navigation and source.
11. Eject (
) Button: Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the
disc is ejected and the unit will change to radio operation. If the disc is not removed from the
unit and the button is pressed again, the disc will be re-loaded. If the disc is not removed from
the disc slot within 10 seconds of being ejected, it will be automatically reloaded to prevent it
from being accidentally damaged.
