AUMA Aumatic AC 01.1 Short Instructions

3. Electrical connection
.
Work on the electrical system or equipment must only be
carried out by a skilled electrician himself or by specially
instructed personnel under the control and supervision of
such an electrician and in accordance with the applicable
electrical engineering rules.
.
Installation regulations for Profibus DP must be observed
for the wiring.
3.1 Power supply (standard) F
or explosion-proof version (type designation: ACExC) see page 7.
.
Check whether type of current, supply voltage and frequency correspond
to motor data (refer to name plate at motor).
.
Loosen bolts (50.01) (figure B-1) and remove connection housing.
.
Loosen screws (51.01) and remove socket carrier (51.0) from connection
housing (50.0).
.
Insert cable glands suitable for connecting cables.
(The enclosure protection stated on the name plate is only ensured if suit-
able cable glands are used).
.
Seal cable entries which are not used with suitable plugs.
.
Connect cables according to order-related wiring diagram.
The wiring diagram applicable to the actuator is attached to the handwheel
in a weather-proof bag, together with the operation instructions. In case
the wiring diagram is not available, it can be obtained from AUMA (state
commission no. refer to name plate) or downloaded directly from the
Internet (www.auma.com).
3.2 Remote position transmitter F
or the connection of remote position transmitters (potentiometer, RWG)
screened cables must be used.
3.3 AUMATIC on wall bracket The AUMATIC can also be mounted separately from the actuator on a wall
bracket.
.
For the connection of actuator and AUMATIC on wall bracket, use suitable
flexible and screened connecting cables.
(Preconfectioned cables can be obtained from AUMA on request)
.
The permissible cable length between actuator and AUMATIC amounts to
max. 100 m.
.
Versions with potentiometer in the actuator are not suitable. Instead of the
potentiometer, a RWG has to be used in the actuator.
.
Connect the wires in correct phase sequence.
Check direction of rotation before switching on.
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Profibus DP Short instructions
4

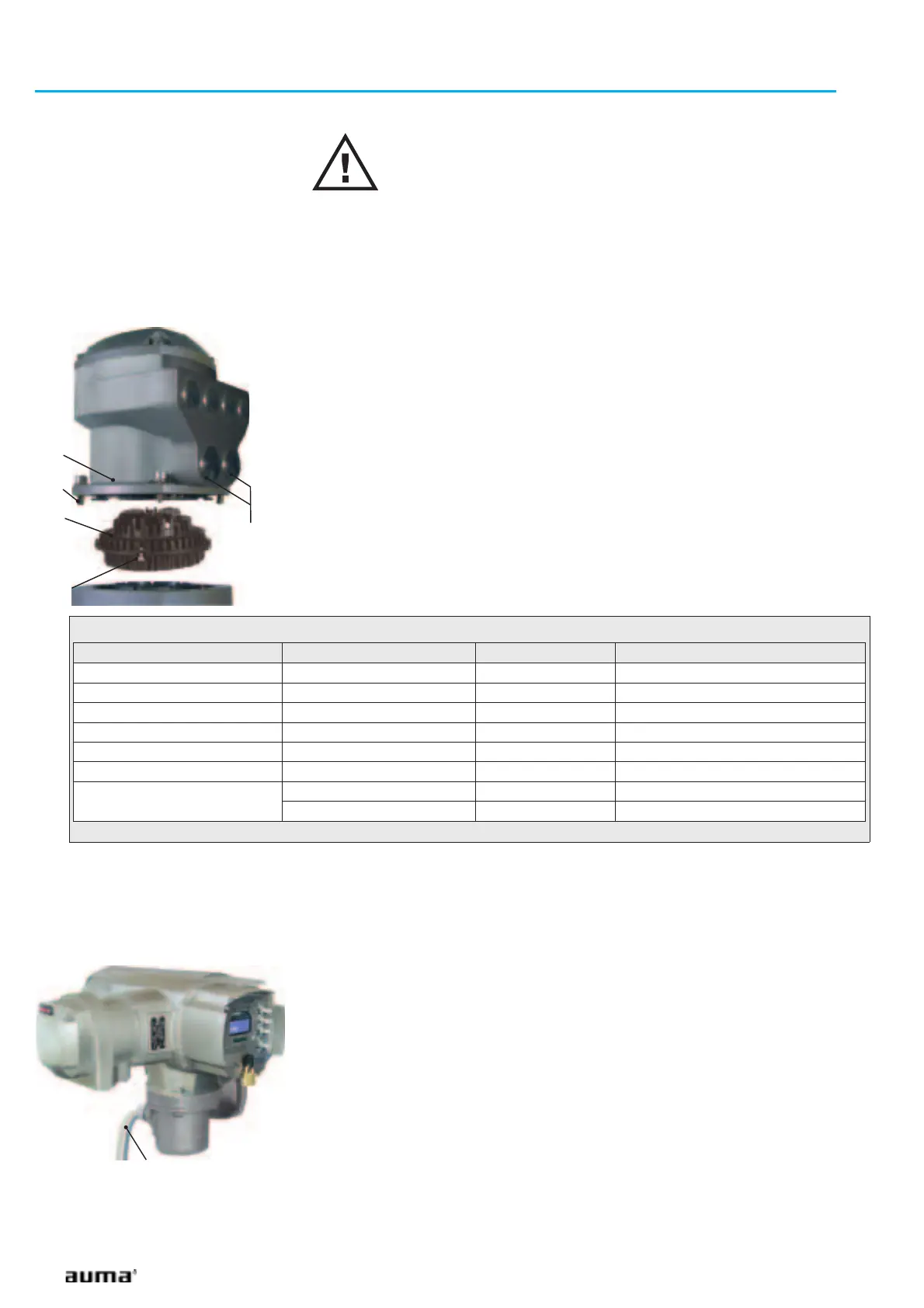

Figure B-1: Mains connection
50.0
50.01
51.0
51.01
Mains
cable
Technical data Motor power connections
1)
Protective earth Control pins
No. of contacts max. 6 (3 are used) 1 (leading contact) 50 pins / sockets
Marking U1, V1, W1, U2, V2, W2 according to VDE 1 to 50
Voltage max. 750 V – 250 V
Current max. 25 A –
16 A
Type of customer connection Screws Screw for ring lug Screws
Cross section max. 6 mm
2
6 mm
2
2.5 mm
2
Material: Pin / socket carrier Polyamide
Polyamide Polyamide
Contacts Brass (Ms)
Brass (Ms)
Brass, tin plated or gold plated (option)
1) Suitable for copper wires. For aluminium wires contact AUMA.
Table 1: Technical data AUMA plug/ socket connector for bus connection
Figure B-2: AUMATIC on wall bracket
Connecting cable to the actuator
