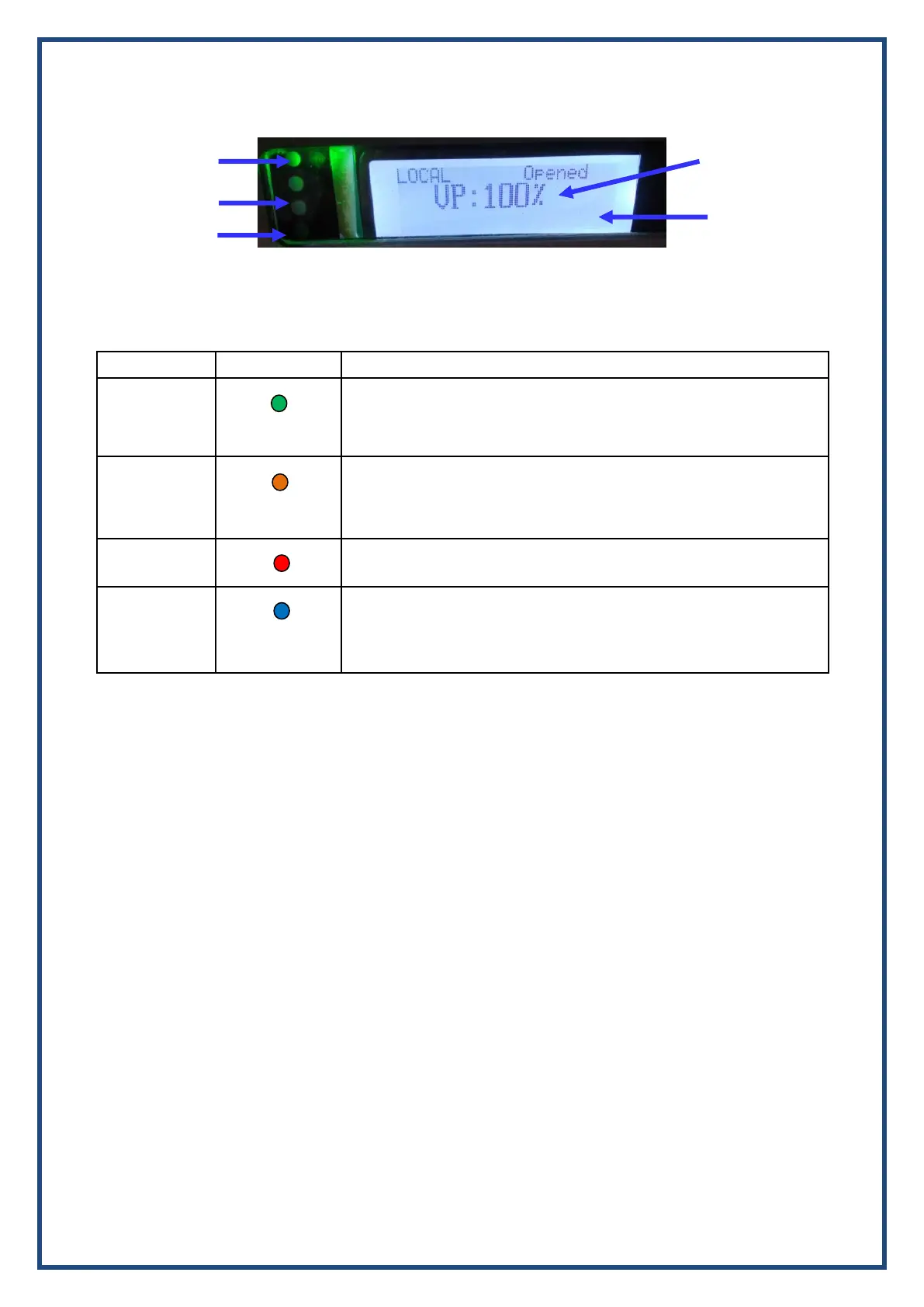

Fig. B: 3.XMP NON INTRUSIVE WITH BLUETOOTH LED & LCD SCREEN
One can configure the four LEDS on the display module to represent different conditions. The default
LED settings are as below:
COLOR
INDICATION
MODE
GREEN
If LED is blinking then actuator is running in OPEN direction.
If LED is continuously ON then actuator is fully OPENED.
If LED is OFF – then actuator is in Mid-Travel.
AMBER
If LED is blinking then actuator is running in CLOSE direction.
If LED is continuously ON then actuator is fully CLOSED.
If LED is OFF – then actuator is in Mid-Travel.
RED
If LED is continuously ON -- Fault Condition
If LED is OFF – No fault Condition
WHITE/BLUE
Default: OFF
If LED ON: Paired and Connected with Auma India Utility
Software/ Whenever BT is connected
CURRENT VALVE POSITION
ACTUATOR RUNNING
STATUS
FAULT and STATUS LEDS
COMMUNICATION LED
FAULTS WILL BE DSIPLAYED
HERE
