5. TOPOLOGY CONNECTION

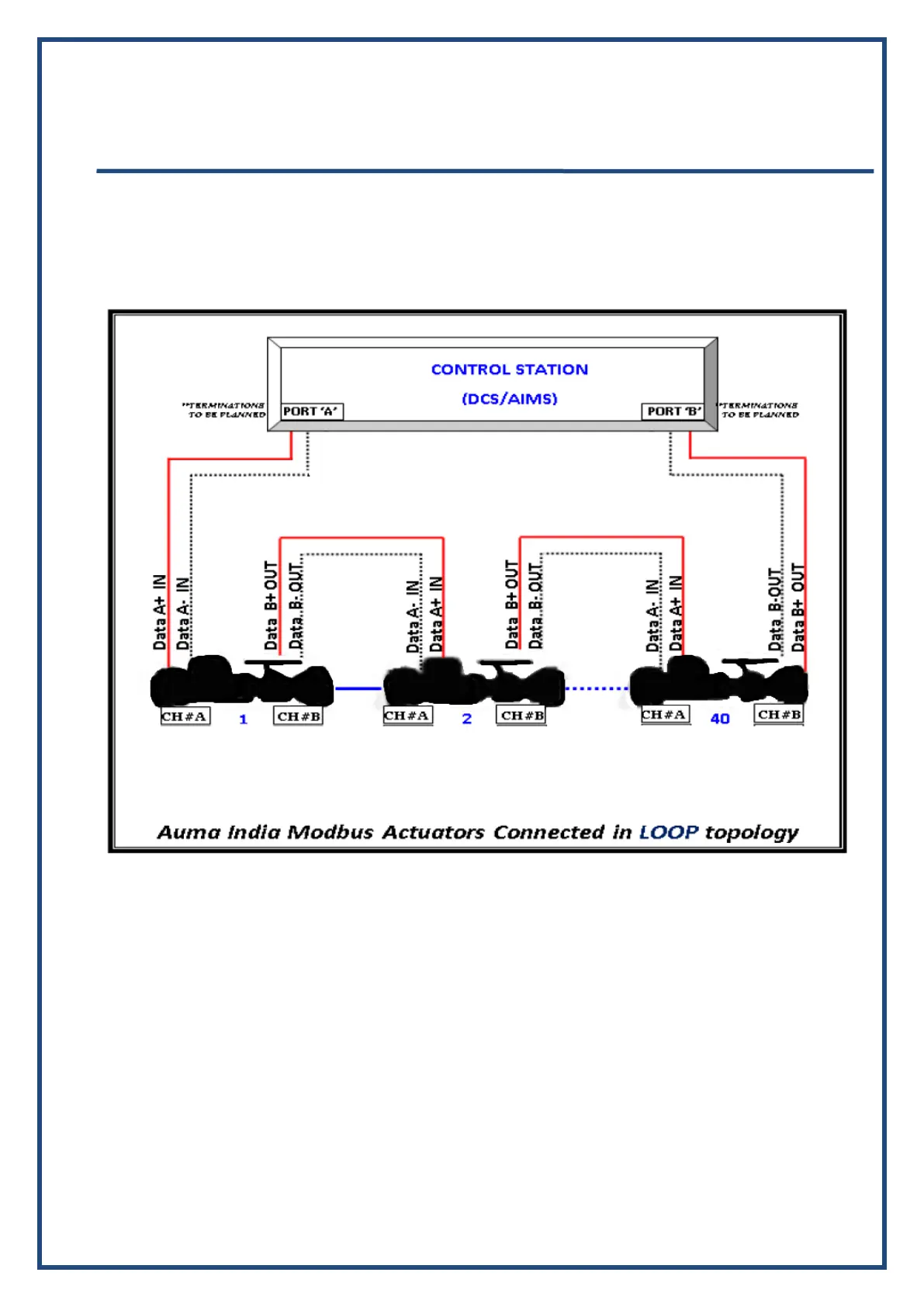

Topology is a pattern in which DCS/AIMS and several actuators are connected in a network. The figures
below show the two main topologies – Line and Loop - used to connect our actuators for MODBUS
communication. The figures below represent the same. This configuration for Line and Loop is decided by the
DIP switch settings in the new IF card.
