AUMA EPAC - DIP Switch Settings for Topology

39
DIP SWITCH SETTING

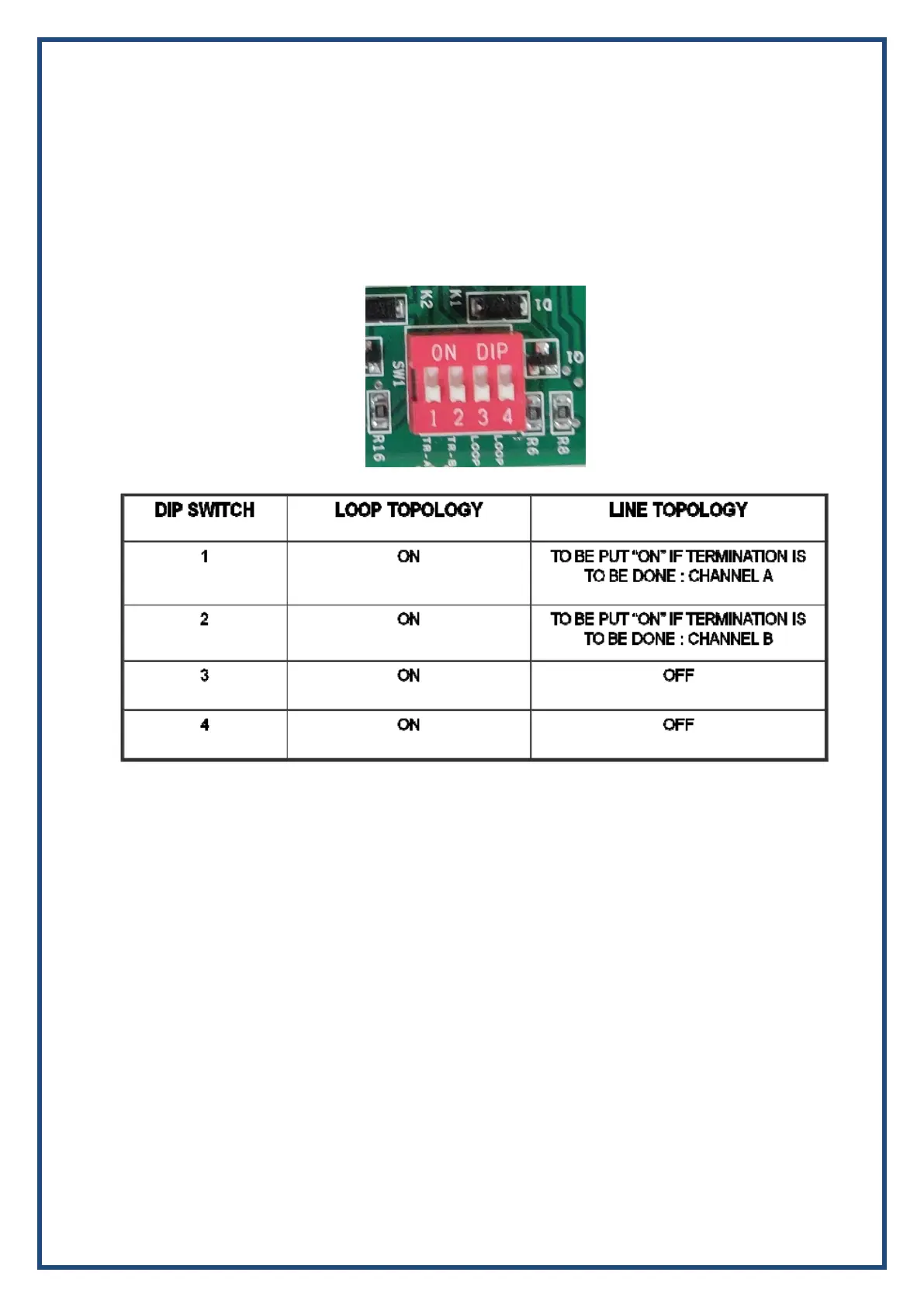

The table for DIP switches selection is as given below. If termination is required for Channel A/Channel
B in line topology, then dip switch 1/ 2 should be on respectively. All the dip switch should be put on for
LOOP topology. This configuration takes care of all the terminations that are to be carried out for
MODBUS communication.
