Common Installation Diagrams Continued
Subwoofer
4 ohm
+
_
2 ohm
Minimum
2 ohm
Minimum
Full Range
Speakers
+
_
+
_

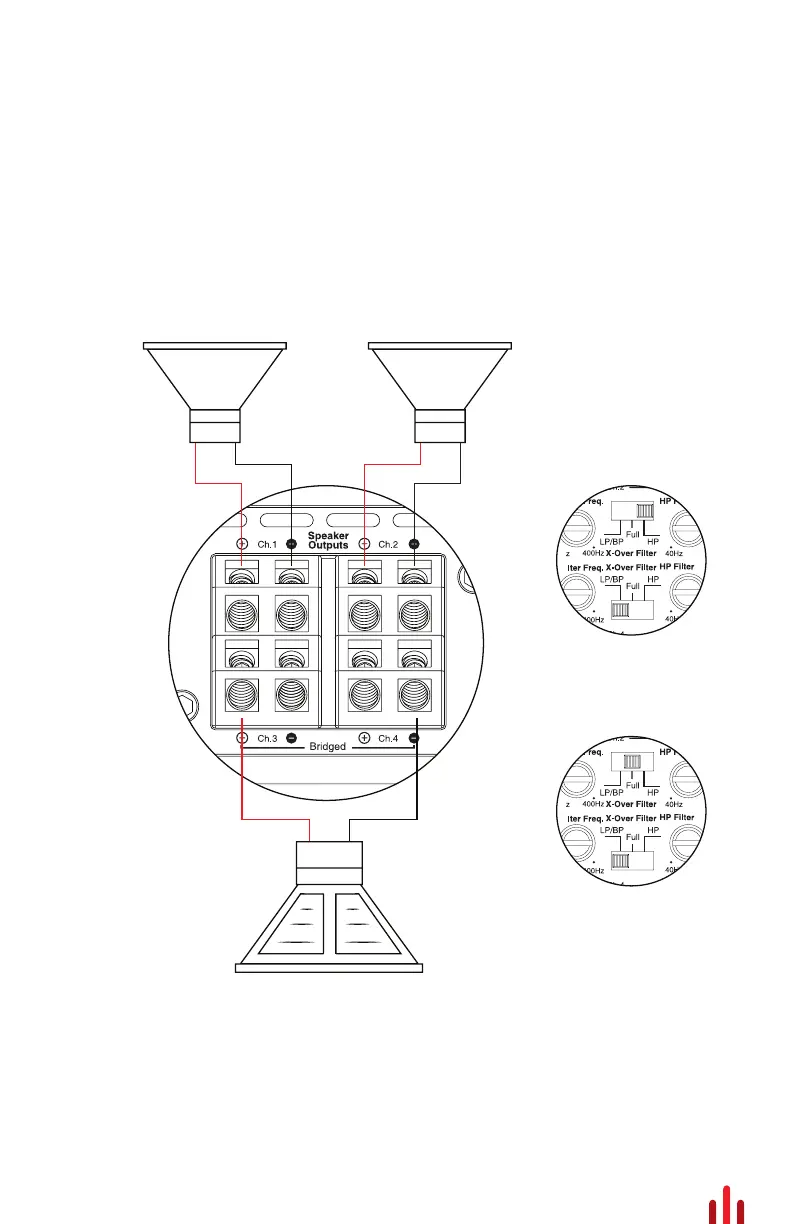

3 - Channel Stereo/Mono Speaker Output Connection
Side Panel
Switch Position
Side Panel
Switch Position
OR
