Common Installation Diagrams
The illustrations below show the common installation
methods for your amplier. It is important to make sure that the
impedance of the speakers connected to your amplier are either
in 4-ohms stereo, 2-ohms stereo or 4-ohms bridged. Connecting
your amplier below these impedances are not recommended
as they will cause your amplier to go into protection. If you are
unsure of the impedance, it is recommended that use a DMM
(Digital Multi-Meter) to check the impedance of your connection at
the ampliers’ Speaker Output Terminals. Your amplier will need
to be o in order to get accurate measurements.
+
_
+
_
2 ohm
Minimum
2 ohm
Minimum
2 ohm
Minimum
2 ohm
Minimum
Full Range
Speakers
Full Range
Speakers
+
_
+
_

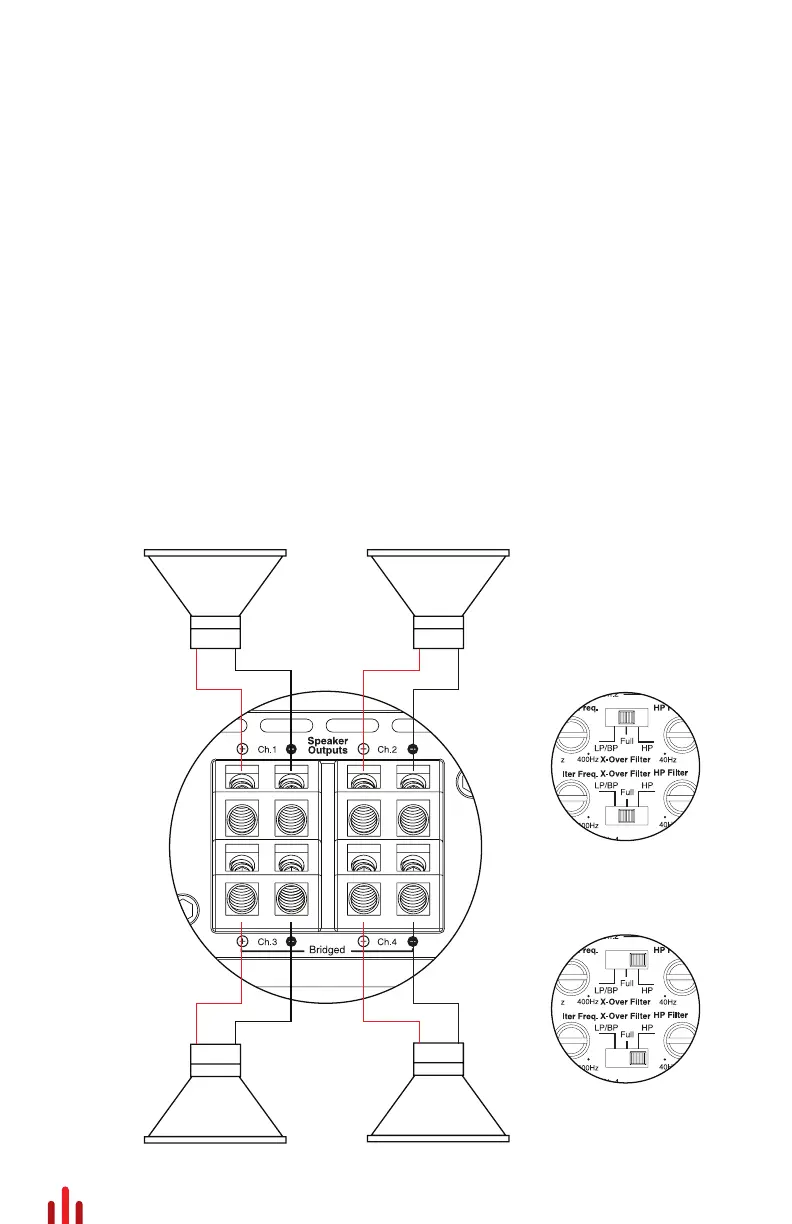

4 - Channel Speaker Output Connection
Side Panel Full
Switch Position
Side Panel HP
Switch Position
OR
