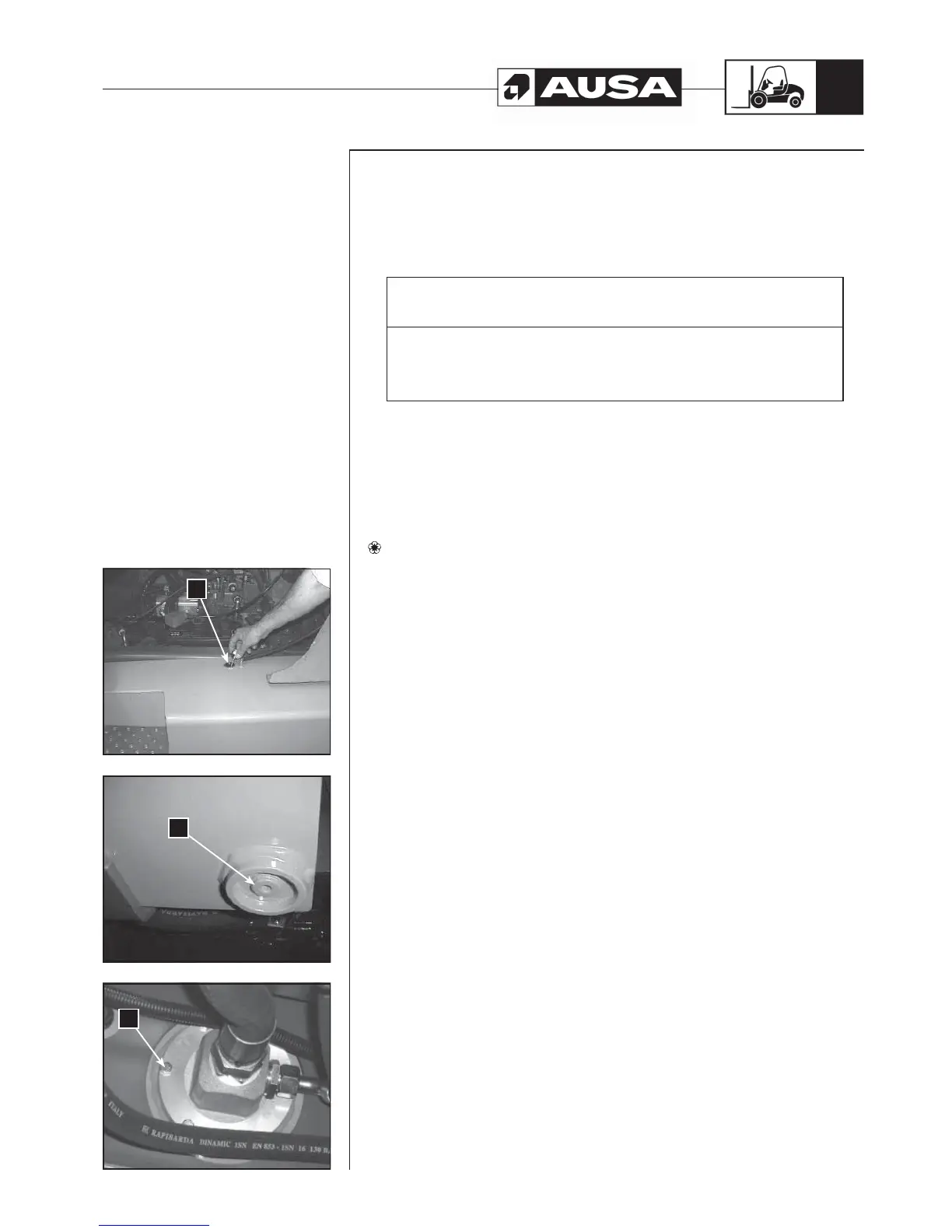

Hydraulic oil (fig. 1, 2, 3)
Level: checking
This should be checked while the forklift is on flat ground, the forks are lowered to rest
position and the engine is switched off.
NOTE
The oil tank is equipped with an oil level low warning light. When this level is
reached, the light on the multi-function instrument lights up and an acoustic
warning is emitted. Add oil immediately to prevent damage to the hydraulic
pumps.
- Loosen the dipstick (a)
- Check whether the oil level reaches the upper mark.
- If necessary, top up with oil through the plug hole.
Draining
- The tank is drained through plug (b) on the lower part of the tank.
Dispose of used oil in authorized centres.
Topping up
Fill with the specified oil through the plug hole (a). See FLUIDS AND LUBRICANTS
CHART (references and capacities) in this Operator’s and Safety Manual for oil specs.
and capacity.
Clean the hydraulic oil strainer
There is an oil strainer filter located on the interior of the tank in the hydraulic circuit. This
is a metal filter which should be cleaned every time the hydraulic oil is drained.
- To do so, remove the 6 screws (c) from the plate.
- Before assembling, check the condition of the seal and replace if necessary.
Hydraulic hoses
All the hydraulic hoses should be replaced at least every 6 years.
