Oil level in final drives on front axle (all models) and rear axle (only 4WD
models) (fig. 1, 2)
WARNING
Never remove the drain plug of the final drives when the oil is hot. The gases
formed in the interior may cause injury.
Final drives: Checking the level
- Turn the wheel until the mark “Oil Stand Level” on the wheel hub is horizontal.
- To check the oil level in the final drives use the cap (a).
Final drives: Draining
- Remove the wheel.
WARNING
If is necessary to remove the drain plug while the oil is still hot, place it on the
upper part of the wheel hub, and remove the plug carefully covering it with a
cloth or similar.
- To drain the oil, turn the wheel hub until plug (a) is located on the lower part of it.
Dispose of used oil in authorized centres.
Final drives: Topping up
- Turn the wheel until the mark “Oil Stand Level” on the wheel hub is horizontal.
- Fill with the specified oil through the opening of the plug (a). See the FLUIDS
AND LUBRICANTS CHART (references and capacities) in this Operator’s
manual for oil specs and capacity.

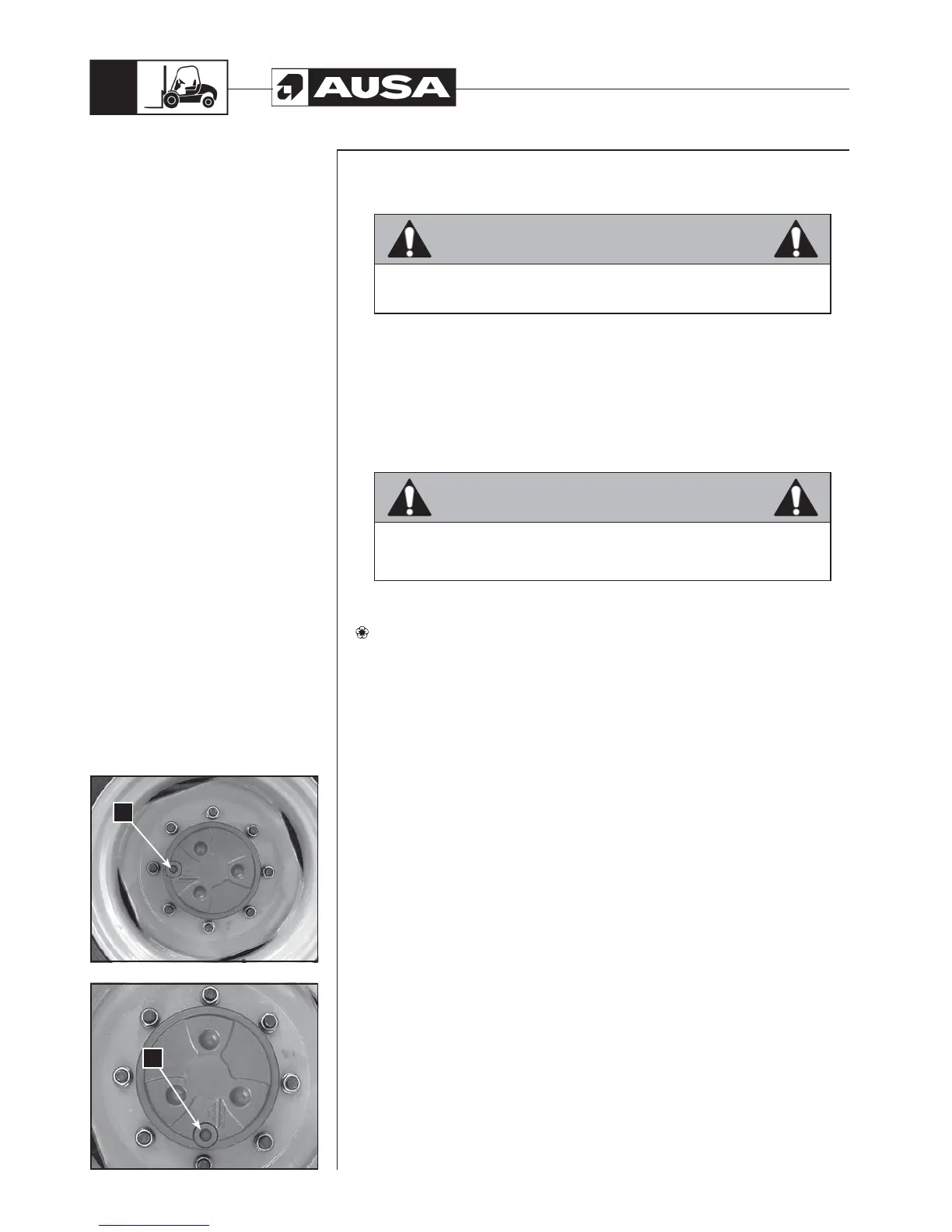

(fig. 2) (fig. 1)
a
a
