Austro Engine AE50R User Manual

AE50R, AE50RA
AE50RAB
Engine Manual
Doc. No. E1.01.01-E Rev. 6 10-March-2011 Page 11-2

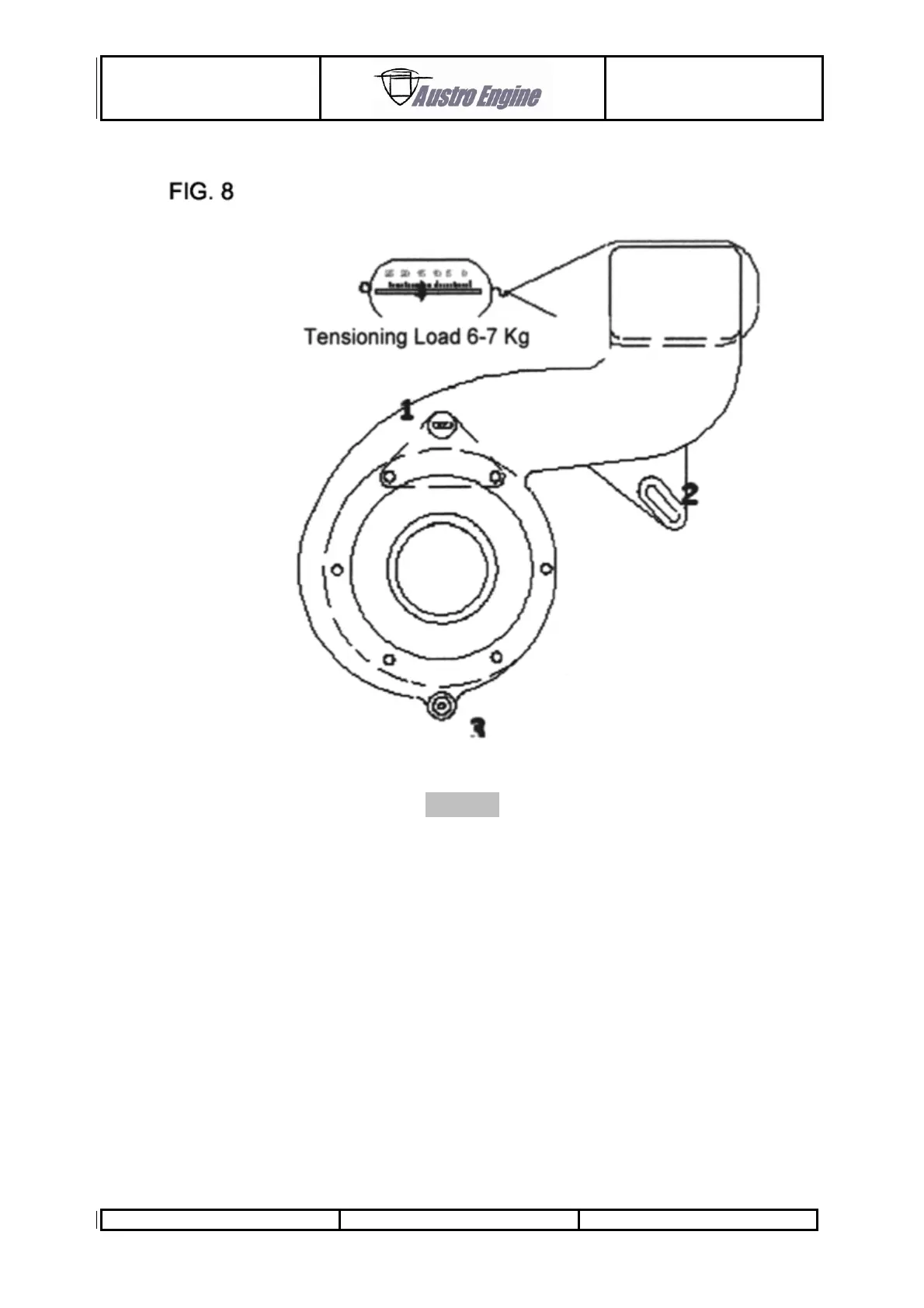

11.3 Checking & Setting Fan Belt Tension
NOTE !
The silicon rubber tube and the tie wraps are left in place during
the test.
1) Slacken the three attachments numbered 1, 2 and 3 above.
2) Attach a loop of suitable material around the fan outlet duct.
3) Using a suitable spring balance, apply a force to the loop of 6 – 7 Kilograms.
4) With this force still applied, tighten the 3 housing attachments.
5) Confirm the attachments are not at the end of their adjustment slots.
6) If a new belt is required, see Section 13.5.2
11.2.4 Adjusting engine idle speed
For adjusting procedure, and precautions, see the aircraft manufacturer’s instructions.
