AE50R, AE50RA
AE50RAB
Engine Manual
Doc. No. E1.01.0-E
Rev. 6 10-March-2011
Page 18-15
18.8. Ignition
18.8.1

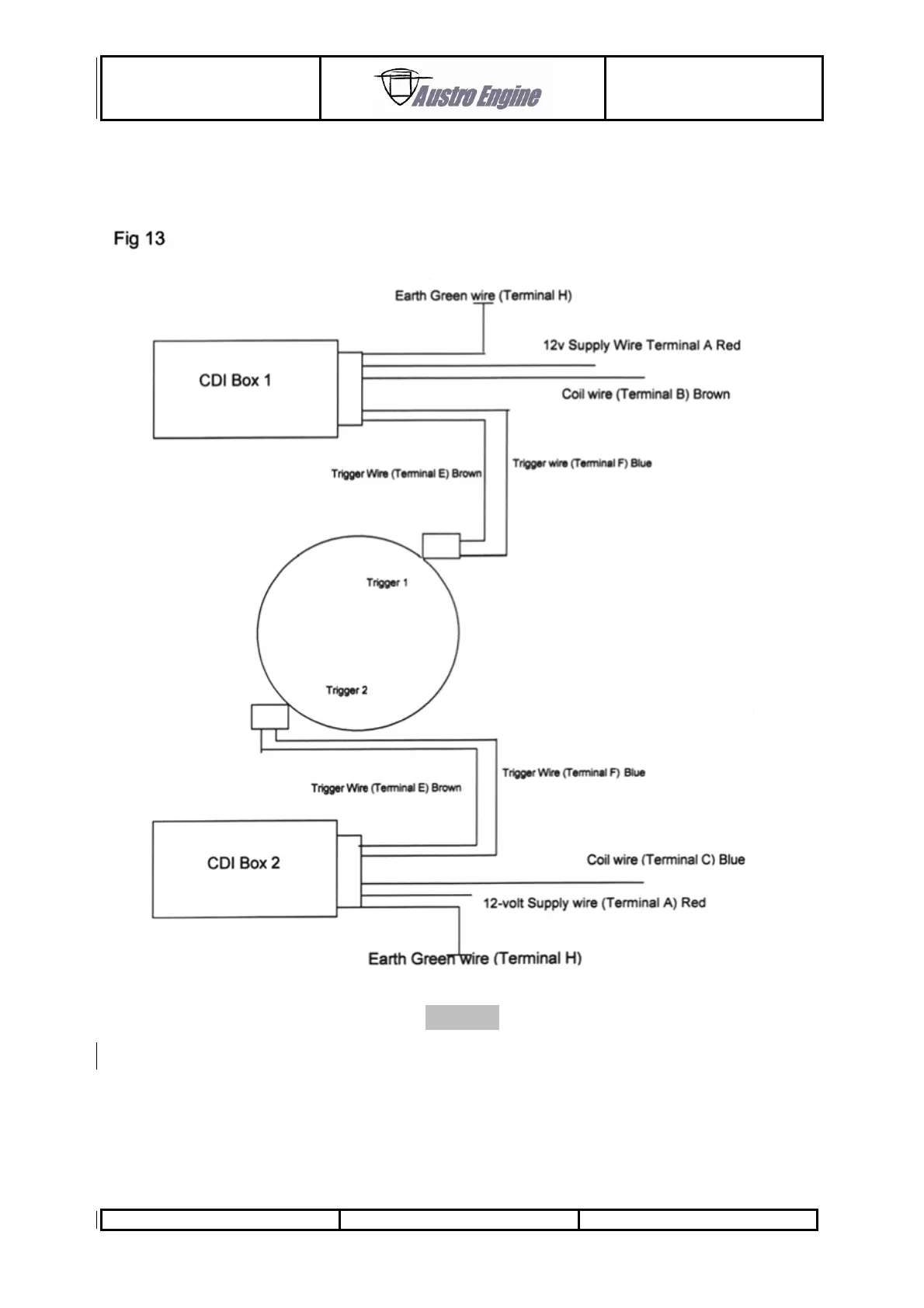

CDI units Part Number E_R2 B 014
NOTE !
Circuit Diagram refers to Austro
Engine GmbH part n
umber
R1B006/R1B007 fly
ing lead type CDI boxes.
Coil wires at terminal C ignition box 1 and coil
wire B at ignition
box 2 have no connection.
61
63
